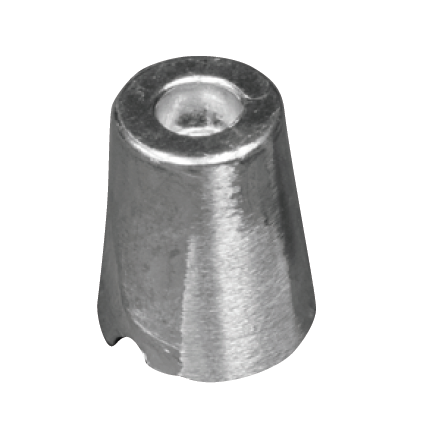

Tecnoseal Zinc Solé Diesel Propeller Anodes, Shaft Ø25–65 mm

ID 1400641

$ 22.71

1-2 weeks delivery time

Shaft Diameter:

25
30
35-40
45-50
60-65

Item:

200 g
400 g
1500 g
120 g
560 g

Tecnoseal zinc propeller anodes for Solé Diesel installations, available for shaft sizes Ø25, Ø30, Ø35–40, Ø45–50 and Ø60–65 mm. Depending on the model, the anodes measure Ø32–75 mm in outside diameter and 39–85 mm in height, with individual weights from 0.12 to 1.50 kg. Corresponding Solé original part numbers are 40025092, 40030092, 40035092, 40045092 and 40060092. Select the required version according to shaft diameter and matching anode dimensions.

Description
Ask a Question

Tecnoseal Zinc Solé Diesel Propeller Anodes – Shaft Ø25–65 mm

The Tecnoseal Solé Diesel Propeller Anodes are zinc (ZN) anodes available for shaft diameters from Ø25 to Ø65 mm.

The range includes five models matched to different shaft sizes. Each version has its own outside diameter, height and Ø1 dimension, together with a corresponding Solé original part number.

Key Features

Brand: Tecnoseal
Application: Solé Diesel propeller installations
Product Type: Propeller anode
Material: Zinc (ZN)
Shaft Size Range: Ø25–65 mm
Outside Diameter Range: Ø32–75 mm
Height Range: 39–85 mm
Weight Range: 0.12–1.50 kg

Available Models and Technical Specifications

Tecnoseal Code	Solé Original Part No.	Shaft Size	Weight	Height h	Outside Ø	Ø1
00400SOLE/1	40025092	Ø25 mm	0.12 kg / 120 g	39 mm	Ø32 mm	24 mm
00400SOLE/2	40030092	Ø30 mm	0.20 kg / 200 g	46 mm	Ø37 mm	26 mm
00400SOLE/3	40035092	Ø35–40 mm	0.40 kg / 400 g	60 mm	Ø47 mm	36 mm
00400SOLE/4	40045092	Ø45–50 mm	0.56 kg / 560 g	70 mm	Ø55 mm	45 mm
00400SOLE/5	40060092	Ø60–65 mm	1.50 kg / 1500 g	85 mm	Ø75 mm	55 mm

Model Selection

Shaft Size: Select the model according to the propeller shaft diameter
h: Overall anode height
Ø: Outside anode diameter
Ø1: Internal diameter shown in the Tecnoseal drawing
Original Part Number: Solé reference for the corresponding installation

Select the required Tecnoseal Solé Diesel propeller anode according to shaft diameter, then verify the outside diameter, height and Ø1 dimension against the existing installation.
