MgDuff MGDA Series Aluminium Propeller Shaft Ring Anodes with Steel Core, Ø25–50 mm

MgDuff Aluminium Propeller Shaft Ring Anodes with Steel Core – Ø25–50 mm, MGDA Series

The MgDuff MGDA Aluminium Propeller Shaft Anode is a ring-shaped sacrificial anode designed to protect marine propeller shafts against corrosion. Manufactured from aluminium and equipped with a steel core, it is suitable for use in brackish and saltwater environments.

The steel core prevents the anode from becoming loose around the propeller shaft. The range includes six versions for shaft diameters from 25 to 50 mm, with different body lengths and external diameters to accommodate the required shaft size.

Key Features

• Brand: MgDuff
• Series: MGDA
• Product Type: Sacrificial propeller shaft anode
• Anode Material: Aluminium
• Core Material: Steel
• Shape: Ring
• Application: Marine propeller shafts
• Suitable Water Types: Brackish water and saltwater
• Shaft Diameter Range: 25–50 mm
• Body Length Range: 65–100 mm
• External Diameter Range: 56–85 mm
• Available Variants: 6 sizes
• Function: Sacrificial corrosion protection for propeller shafts

Technical Specifications and Available Sizes

The MGDA series is available in six sizes. The versions differ in shaft diameter, overall anode length and external diameter. All dimensions are specified in millimetres.

Construction and Design

The MgDuff shaft anode features an aluminium body with an integrated steel core. The core is designed to prevent the anode from becoming loose around the shaft, helping maintain its position during use.

• Aluminium Body: Provides sacrificial corrosion protection for the propeller shaft.
• Steel Core: Prevents the anode from becoming loose around the shaft.
• Ring-Shaped Construction: Designed for installation around marine propeller shafts.
• Available Shaft Sizes: 25, 30, 35, 40, 45 and 50 mm.

Dimensions and Model Selection

Select the anode according to the diameter of the propeller shaft. The overall length and external diameter should also be considered when checking the available installation space.

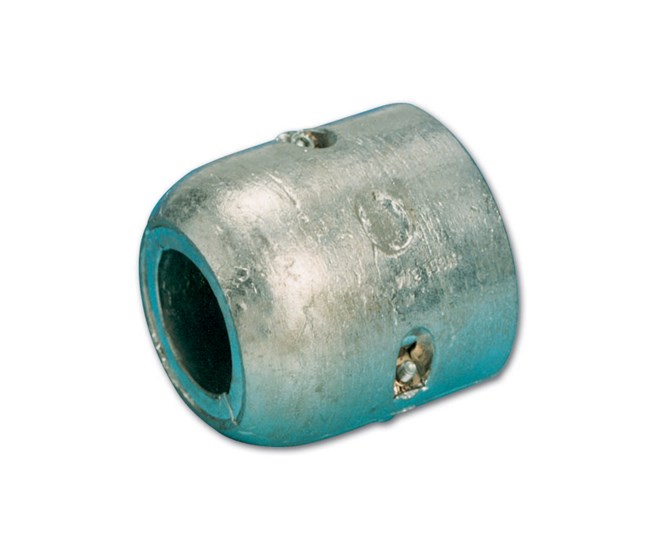

• 592025: For Ø25 mm shafts. Body length: 65 mm. External diameter: 56 mm.
• 592030: For Ø30 mm shafts. Body length: 65 mm. External diameter: 56 mm.
• 592035: For Ø35 mm shafts. Body length: 78 mm. External diameter: 69 mm.
• 592040: For Ø40 mm shafts. Body length: 78 mm. External diameter: 69 mm.
• 592045: For Ø45 mm shafts. Body length: 100 mm. External diameter: 85 mm.
• 592050: For Ø50 mm shafts. Body length: 100 mm. External diameter: 85 mm.

The 25 and 30 mm versions share the same external dimensions of 65 × 56 mm. The 35 and 40 mm versions measure 78 × 69 mm, while the 45 and 50 mm versions measure 100 × 85 mm. Each variant has a different shaft diameter.

Corrosion Protection and Water Compatibility

The aluminium anode acts as a sacrificial component, corroding preferentially to help protect the propeller shaft against corrosion.

The MgDuff MGDA shaft anodes are suitable for use in the following water environments:

• Brackish Water: Environments containing a mixture of freshwater and saltwater.
• Saltwater: Marine saltwater environments.

The steel core helps maintain the anode's position around the shaft, while the aluminium body provides sacrificial corrosion protection.
