ID
1400683
$ 41.25
1-2 weeks delivery time
Size:
- Ø32x44
- Ø50x71
- Ø60x80
- Ø63x85
- Ø69x90
- Ø79x95
- Ø85x105
Item:
- 550 g
- 1450 g
- 1600 g
- 100 g
- 1080 g
- 710 g
- 920 g
Tecnoseal zinc USA-type propeller nut anodes, available in eight sizes from Ø32 x 44 mm to Ø85 x 105 mm. Depending on the model, weights range from 0.10 to 1.60 kg, with c dimensions from 23 to 62 mm, h1 from 11 to 28 mm, Ø1 from 6.5 to 10.5 mm and Ø2 from 12 to 18 mm. The range includes Tecnoseal TEC-PNA, TEC-PNB, TEC-PNC, TEC-PND, TEC-PNE, TEC-PNF, TEC-PNG and TEC-PNH. Select the required version according to outside diameter, height and mounting dimensions.
- Description
- Ask a Question
-

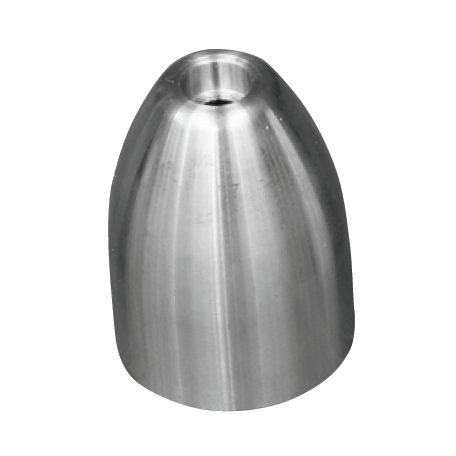

Tecnoseal Zinc USA Type Propeller Nut Anodes – Ø32–85 mm
The Tecnoseal USA Type Propeller Nut Anodes are zinc (ZN) replacement anodes available in eight sizes for different propeller nut configurations.
The range covers outside diameters from Ø32 to Ø85 mm and heights from 44 to 105 mm. Individual models differ in overall size, c and h1 dimensions, mounting-hole diameter Ø1 and internal diameter Ø2.
Key Features
- Brand: Tecnoseal
- Type: USA Type propeller nut anode
- Material: Zinc (ZN)
- Available Models: TEC-PNA to TEC-PNH
- Outside Diameter Range: Ø32–85 mm
- Height Range: 44–105 mm
- Weight Range: 0.10–1.60 kg
Available Models and Technical Specifications
Tecnoseal Code Weight c h h1 Ø Ø1 Ø2 TEC-PNA 0.10 kg / 100 g 23 mm 44 mm 11 mm Ø32 mm 6.5 mm 12 mm TEC-PNB 0.25 kg / 250 g 26 mm 55.5 mm 17.5 mm Ø41 mm 6.5 mm 12 mm TEC-PNC 0.55 kg / 550 g 31 mm 71 mm 19 mm Ø50 mm 9 mm 13 mm TEC-PND 0.71 kg / 710 g 37 mm 80 mm 20 mm Ø60 mm 8.5 mm 14 mm TEC-PNE 0.92 kg / 920 g 41 mm 85 mm 23 mm Ø63 mm 8.5 mm 15 mm TEC-PNF 1.08 kg / 1080 g 46 mm 90 mm 26 mm Ø69 mm 8.5 mm 15 mm TEC-PNG 1.45 kg / 1450 g 53 mm 95 mm 28 mm Ø79 mm 10.5 mm 18 mm TEC-PNH 1.60 kg / 1600 g 62 mm 105 mm 28 mm Ø85 mm 10.5 mm 18 mm
Model Selection
- Ø: Outside diameter of the anode
- h: Overall height
- c: Dimension shown in the Tecnoseal drawing
- h1: Lower internal section height
- Ø1: Mounting-hole diameter
- Ø2: Internal diameter
Select the required Tecnoseal USA-type propeller nut anode according to outside diameter, height and corresponding mounting dimensions.
-
