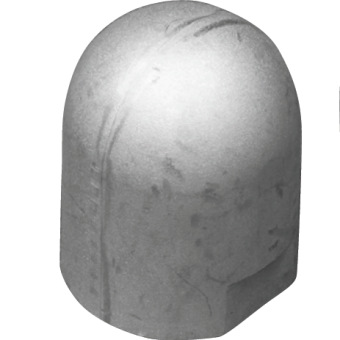

Tecnoseal Zinc Renault Marine Propeller Nuts, Shaft Ø22–50 mm

ID 1400568

$ 34.37

1-2 weeks delivery time

Shaft Diameter:

22-25
28-34
40
40-50

Size:

M20
30x1.5
M24
M27
27x1.5
M30
36x1.5
16x2
20x2.5
28x2.5

Item:

300 g
80 g
150 g
270 g
450 g
310 g
280 g
260 g

Tecnoseal zinc Renault Marine type propeller nuts for shaft sizes from Ø22–25 mm up to Ø40/50 mm. The range includes several thread configurations, including 16x2, 20x2.5, 28x2.5, M20, M24, M27, M30, 20x2, 26x2, 27x1.5, 30x1.5 and 36x1.5. Depending on the model, the nuts measure 36–54 mm in height and Ø27–50 mm in outside diameter, with individual weights from 0.08 to 0.45 kg. Select the required version by shaft size and thread specification.

Description
Ask a Question

Tecnoseal Zinc Renault Marine Propeller Nuts – Shaft Ø22–50 mm

The Tecnoseal Renault Marine Propeller Nuts are zinc (ZN) propeller nuts available for shaft sizes from Ø22–25 mm up to Ø40/50 mm.

Several models are designed for the same Ø40 mm shaft but use different internal threads, so both shaft size and thread specification should be checked when selecting the correct version. Available thread sizes include metric threads and fine-pitch configurations from 16x2 to 36x1.5.

Key Features

Brand: Tecnoseal
Type: Renault Marine type propeller nut
Material: Zinc (ZN)
Shaft Size Range: Ø22–25 to Ø40/50 mm
Height Range: 36–54 mm
Outside Diameter Range: Ø27–50 mm
Weight Range: 0.08–0.45 kg

Available Zinc Models

Tecnoseal Code	Shaft Size	Height h	Outside Ø	Thread m	Weight
01801	Ø22–25 mm	36 mm	Ø27 mm	16x2	0.08 kg / 80 g
01802	Ø28–34 mm	47 mm	Ø35 mm	20x2.5	0.15 kg / 150 g
01803	Ø40 mm	48 mm	Ø41 mm	28x2.5	0.28 kg / 280 g
00490	Ø40 mm	50 mm	Ø40 mm	M20	0.31 kg / 310 g
00491	Ø40 mm	50 mm	Ø40 mm	M24	0.30 kg / 300 g
00492	Ø40 mm	50 mm	Ø40 mm	M27	0.30 kg / 300 g
00493	Ø40 mm	50 mm	Ø40 mm	M30	0.27 kg / 270 g
00494	Ø40 mm	52 mm	Ø40 mm	20x2	0.31 kg / 310 g
00495	Ø40 mm	50 mm	Ø40 mm	26x2	0.28 kg / 280 g
00492-1	Ø40 mm	52 mm	Ø40 mm	27x1.5	0.27 kg / 270 g
00493-1	Ø40 mm	52 mm	Ø40 mm	30x1.5	0.26 kg / 260 g
00496	Ø40/50 mm	54 mm	Ø50 mm	36x1.5	0.45 kg / 450 g

Dimensions for Model Selection

Shaft Size: Compatible propeller shaft diameter
h: Overall nut height
Ø: Outside diameter
m: Internal thread specification
Weight: Individual zinc nut weight

Select the required Tecnoseal Renault Marine propeller nut by shaft size and internal thread, then verify the corresponding height and outside diameter against the existing installation.
