ID
1400613
$ 111.29
1-2 weeks delivery time
Shaft Diameter:
- 20-30
- 35-50
Size:
- 30x2
- 20x2.5
- 14x1.5
- 16x1.5
- 18x1.5
- 18x1.75
- 18x2
- 3/4" W
- 20x1.5
- 20x2
- 24x2
- 26x2
- 33x2
- 1" GAS
- 25x1.5
Item:
- 390 g
- 1090 g
Tecnoseal zinc Riva propeller anodes with fixed brass plug, available for shaft sizes Ø20–30 mm and Ø35–50 mm. The Ø20–30 mm models measure Ø38 x 69 mm, weigh 0.39 kg and are offered with thread options from 14x1.5 to 20x2.5, including a 3/4" W version. The larger Ø35–50 mm models measure Ø52 x 102 mm, weigh 1.09 kg and are available with 25x1.5, 24x2, 26x2, 30x2, 33x2 and 1" GAS threads. The brass plug is fixed and the zinc part is not replaceable.
- Description
- Ask a Question
-

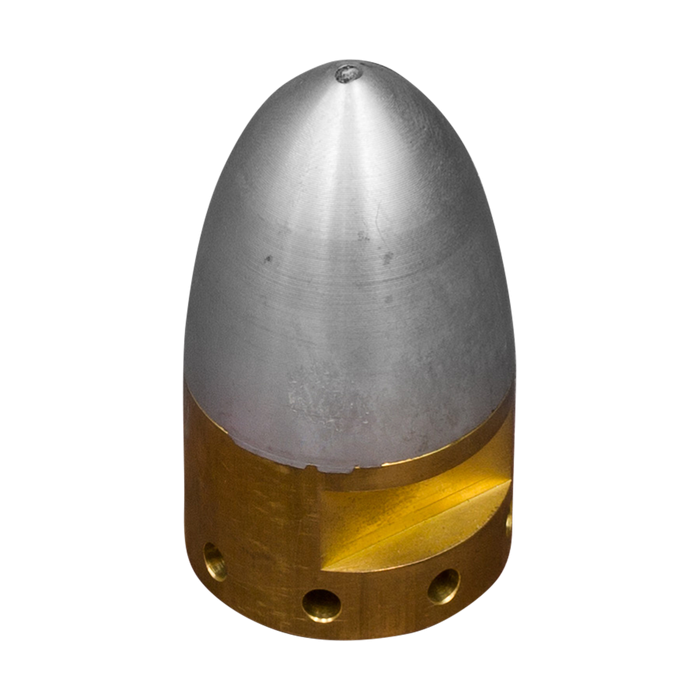

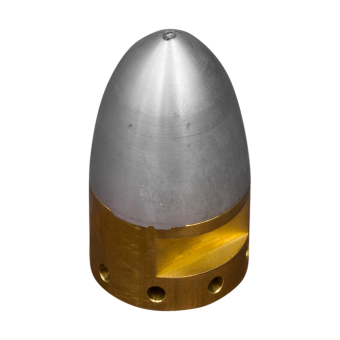

Tecnoseal Zinc Riva Propeller Anodes with Fixed Brass Plug – Shaft Ø20–50 mm
The Tecnoseal Riva Propeller Anodes are zinc (ZN) anodes with a fixed brass plug, available for shaft sizes from Ø20 to Ø50 mm.
The range is divided into two dimensional groups. Models for Ø20–30 mm shafts measure Ø38 x 69 mm and weigh 0.39 kg, while models for Ø35–50 mm shafts measure Ø52 x 102 mm and weigh 1.09 kg. Within each group, the versions differ by thread specification.
The brass support is fixed to the anode and, as specified by Tecnoseal, the zinc part is not replaceable.
Key Features
- Brand: Tecnoseal
- Application: Riva propeller systems
- Material: Zinc (ZN)
- Configuration: Fixed brass plug
- Zinc Part: Not replaceable
- Shaft Sizes: Ø20–30 mm and Ø35–50 mm
- Available Threads: Metric, Whitworth and GAS versions
Models for Shaft Ø20–30 mm
Tecnoseal Code Shaft Size Thread Outside Ø Height h Weight 00440F Ø20–30 mm 14x1.5 Ø38 mm 69 mm 0.39 kg / 390 g 00441F Ø20–30 mm 16x1.5 Ø38 mm 69 mm 0.39 kg / 390 g 00442F Ø20–30 mm 18x1.5 Ø38 mm 69 mm 0.39 kg / 390 g 00443F Ø20–30 mm 18x1.75 Ø38 mm 69 mm 0.39 kg / 390 g 00444F Ø20–30 mm 18x2 Ø38 mm 69 mm 0.39 kg / 390 g 00445F Ø20–30 mm 3/4" W Ø38 mm 69 mm 0.39 kg / 390 g 00446F Ø20–30 mm 20x1.5 Ø38 mm 69 mm 0.39 kg / 390 g 00447F Ø20–30 mm 20x2 Ø38 mm 69 mm 0.39 kg / 390 g 00448F Ø20–30 mm 20x2.5 Ø38 mm 69 mm 0.39 kg / 390 g
Models for Shaft Ø35–50 mm
Tecnoseal Code Shaft Size Thread Outside Ø Height h Weight 00449F Ø35–50 mm 25x1.5 Ø52 mm 102 mm 1.09 kg / 1090 g 00450F Ø35–50 mm 24x2 Ø52 mm 102 mm 1.09 kg / 1090 g 00451F Ø35–50 mm 26x2 Ø52 mm 102 mm 1.09 kg / 1090 g 00452F Ø35–50 mm 30x2 Ø52 mm 102 mm 1.09 kg / 1090 g 00453F Ø35–50 mm 33x2 Ø52 mm 102 mm 1.09 kg / 1090 g 00454F Ø35–50 mm 1" GAS Ø52 mm 102 mm 1.09 kg / 1090 g
Model Selection
- Shaft Size: Select Ø20–30 mm or Ø35–50 mm
- Thread: Match the thread specification to the existing installation
- Ø: Outside anode diameter
- h: Overall anode height
Select the required Tecnoseal Riva anode according to shaft size and thread specification, then verify the corresponding outside diameter and height.
-
