Tecnoseal zinc Reggiani propeller anodes available for shaft diameters from Ø20 to Ø60 mm. Depending on the model, the anodes measure 30–85 mm in height with outside diameters from Ø20 to Ø88 mm, Ø1 dimensions from 15 to 55 mm and Ø2 dimensions from 6.5 to 11 mm. Individual weights range from 0.09 to 2.40 kg. Select the required version according to shaft diameter and matching anode dimensions.
- Description
- Ask a Question
-

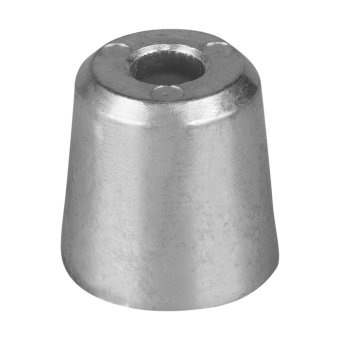

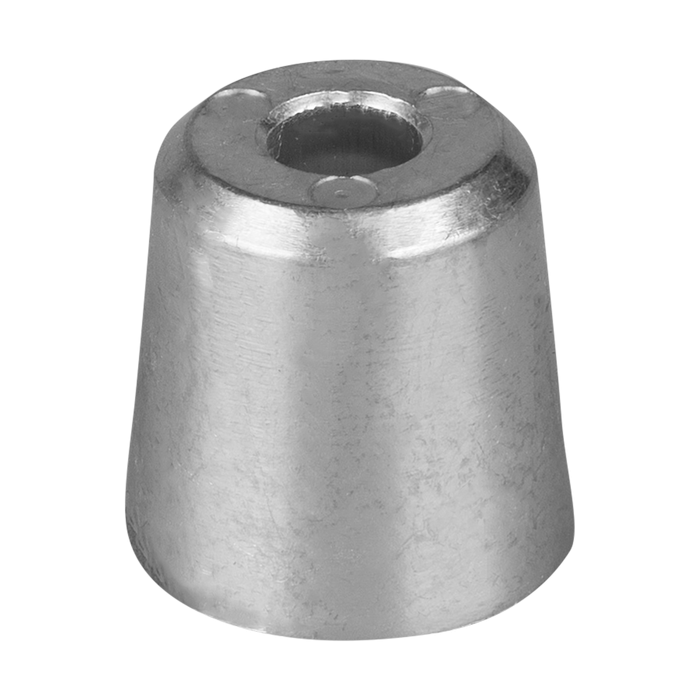

Tecnoseal Zinc Reggiani Propeller Anodes – Shaft Ø20–60 mm
The Tecnoseal Reggiani Propeller Anodes are zinc (ZN) anodes available for propeller shafts from Ø20 to Ø60 mm.
Each version is matched to a specific shaft diameter and differs in height, outside diameter, Ø1, Ø2 and weight. The range covers anode heights from 30 to 85 mm and outside diameters from Ø20 to Ø88 mm.
Key Features
- Brand: Tecnoseal
- Series: Reggiani
- Product Type: Propeller anode
- Material: Zinc (ZN)
- Shaft Diameter Range: Ø20–60 mm
- Outside Diameter Range: Ø20–88 mm
- Height Range: 30–85 mm
- Weight Range: 0.09–2.40 kg
Available Models and Technical Specifications
Tecnoseal Code Shaft Size Weight Height h Outside Ø Ø1 Ø2 00460/1 Ø20 mm 0.09 kg / 90 g 30 mm Ø20 mm 15 mm 6.5 mm 00460 Ø25 mm 0.13 kg / 130 g 34 mm Ø34 mm 20 mm 6.5 mm 00461 Ø30 mm 0.34 kg / 340 g 50 mm Ø43 mm 25 mm 6.5 mm 00462 Ø35 mm 0.46 kg / 460 g 55 mm Ø48 mm 28 mm 8.5 mm 00463 Ø40 mm 0.54 kg / 540 g 55 mm Ø54 mm 34 mm 11 mm 00464 Ø45 mm 0.95 kg / 950 g 65 mm Ø64 mm 40 mm 11 mm 00465 Ø50 mm 1.53 kg / 1530 g 75 mm Ø74 mm 45 mm 11 mm 00466 Ø55 mm 1.62 kg / 1620 g 75 mm Ø78 mm 49 mm 11 mm 00467 Ø60 mm 2.40 kg / 2400 g 85 mm Ø88 mm 55 mm 11 mm
Dimensions for Model Selection
- Shaft Size: Propeller shaft diameter
- h: Overall anode height
- Ø: Outside anode diameter
- Ø1: Internal diameter shown in the Tecnoseal drawing
- Ø2: Central hole diameter
- Weight: Individual anode weight
Select the required Tecnoseal Reggiani anode according to shaft diameter and verify the corresponding h, Ø, Ø1 and Ø2 dimensions against the existing installation.
-
