ID
1406433
$ 370.59
1-2 weeks delivery time
Type:
- Zinc
- Aluminium
Item:
- 7.20 kg
- 3.60 kg
The Tecnoseal 00274E / 00274EAL is a Sealine UK-type bolt-on bar anode for marine corrosion protection, available in zinc and aluminium versions. The anode measures 450 × 100 × 30 mm and features two slotted mounting positions with 230 mm centre-to-centre spacing. Additional mounting dimensions are 48 × 73 mm (b) and 44 mm (c). The zinc version weighs 7.20 kg, while the aluminium version weighs 3.60 kg.
- Description
- Ask a Question
-

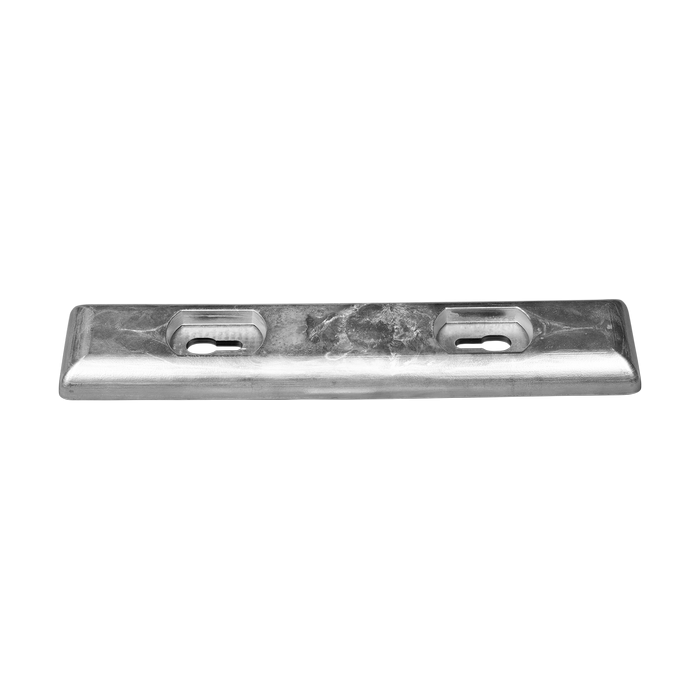

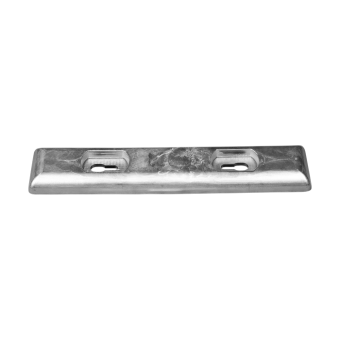

Tecnoseal 00274E / 00274EAL Sealine UK Type Bolt-On Bar Anode 450x100x30 mm
The Tecnoseal 00274E / 00274EAL is a UK-type sacrificial bar anode from the Sealine range. It is designed for bolt-on installation on marine structures and underwater metal components requiring galvanic corrosion protection.
The anode has overall dimensions of 450 × 100 × 30 mm and two slotted mounting positions with a centre-to-centre distance of 230 mm. It is available in zinc and aluminium versions with the same dimensions and mounting configuration.
Key Features
- Manufacturer: Tecnoseal
- Series: Sealine / UK Type Bars
- Product Type: Sacrificial bolt-on bar anode
- Available Materials: Zinc and Aluminium
- Overall Dimensions: 450 × 100 × 30 mm
- Mounting: Two slotted mounting positions
- Hole Centre Distance: 230 mm
Technical Specifications
Parameter Specification Overall Length (l) 450 mm (17.72 in) Width (a) 100 mm (3.94 in) Height (h) 30 mm (1.18 in) Mounting Dimension (b) 48 × 73 mm (1.89 × 2.87 in) Mounting Dimension (c) 44 mm (1.73 in) Hole Centre Distance (i) 230 mm (9.06 in) Mounting Configuration 2 slotted positions
Available Versions
Product Code Material Weight 00274E Zinc 7.20 kg (15.87 lbs) 00274EAL Aluminium 3.60 kg (7.94 lbs)
Selection and Installation
Select the anode material according to the vessel's corrosion protection requirements and operating conditions. Both versions share the same external dimensions and mounting arrangement.
Before ordering, check the overall dimensions, mounting slot configuration and 230 mm hole centre distance against the existing anode or installation points.
Supply
One Tecnoseal Sealine UK-type bar anode in the selected material.
-
