The Tecnoseal 00274E is a zinc sacrificial bar anode designed for MJP UltraJet marine waterjet propulsion equipment. It features an elongated rectangular body measuring 450 mm (17.72 in) in length, 100 mm (3.94 in) in width and 30 mm (1.18 in) in height. The anode has two recessed slotted mounting holes with a centre-to-centre spacing (i) of 230 mm (9.06 in), mounting dimensions (b) of 48 x 73 mm (1.89 x 2.87 in) and dimension (c) of 44 mm (1.73 in). Weighing 7.20 kg (15.87 lbs), this zinc anode provides sacrificial corrosion protection for compatible MJP UltraJet propulsion components.
- Description
- Ask a Question
-

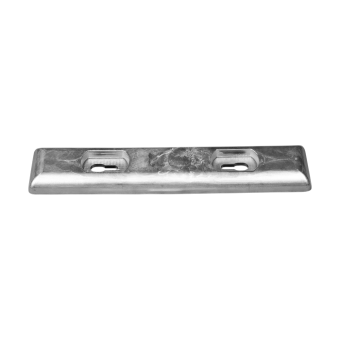

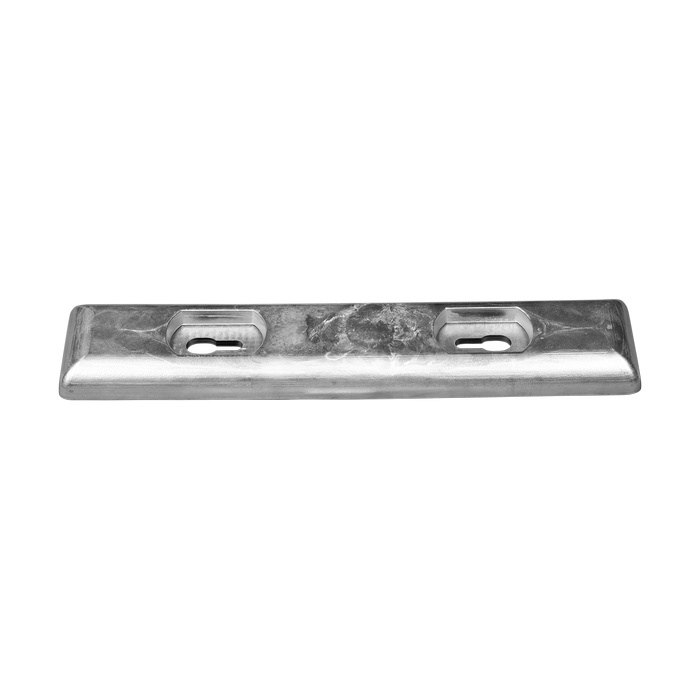

Tecnoseal 00274E MJP UltraJet Zinc Bar Anode 450x100x30 mm
The Tecnoseal 00274E is a zinc sacrificial bar anode designed for MJP UltraJet marine waterjet propulsion equipment. Its elongated rectangular body with two recessed slotted mounting holes provides sacrificial corrosion protection for compatible metallic propulsion components.
According to the Tecnoseal catalogue, the anode measures 450 mm (17.72 in) in length, 100 mm (3.94 in) in width and 30 mm (1.18 in) in height. The two mounting positions have a centre-to-centre spacing (i) of 230 mm (9.06 in). Additional mounting dimensions include b = 48 x 73 mm (1.89 x 2.87 in) and c = 44 mm (1.73 in).
Manufactured from zinc, the Tecnoseal 00274E weighs 7.20 kg (15.87 lbs). The rectangular bar configuration with recessed mounting slots is intended for compatible MJP UltraJet marine propulsion installations.
Technical Specifications
Manufacturer Tecnoseal Product Code 00274E Product Type Bar Sacrificial Anode Application MJP UltraJet Marine Propulsion Equipment Material Zinc Weight 7.20 kg (15.87 lbs) Length (l) 450 mm (17.72 in) Width (a) 100 mm (3.94 in) Mounting Dimension (b) 48 x 73 mm (1.89 x 2.87 in) Mounting Dimension (c) 44 mm (1.73 in) Height (h) 30 mm (1.18 in) Mounting Hole Spacing (i) 230 mm (9.06 in) Mounting Positions 2 EAN 8033837068426
Dimensions and Mounting
- Length (l): 450 mm (17.72 in)
- Width (a): 100 mm (3.94 in)
- Height (h): 30 mm (1.18 in)
- Mounting Dimension (b): 48 x 73 mm (1.89 x 2.87 in)
- Mounting Dimension (c): 44 mm (1.73 in)
- Mounting Hole Spacing (i): 230 mm (9.06 in)
- Construction: Rectangular bar with two recessed slotted mounting positions
Application
- MJP UltraJet marine waterjet propulsion equipment
Product References
- Tecnoseal: 00274E
- EAN: 8033837068426
Key Features
- Zinc sacrificial bar anode for MJP UltraJet marine propulsion applications.
- 450 mm long rectangular body.
- 100 mm width and 30 mm height.
- Two recessed slotted mounting positions.
- 230 mm centre-to-centre mounting spacing.
- Provides sacrificial corrosion protection for compatible metallic marine propulsion components.
Compatibility: Intended for MJP UltraJet marine propulsion equipment. Verify the existing anode dimensions, mounting slot configuration and Tecnoseal product code 00274E before ordering.
-
