Tecnoseal 07115–07200 Propeller Shaft Grounding System with Dual Graphite Brushes and Silver-Plated Ring

Name: Tecnoseal 07115–07200 Propeller Shaft Grounding System with Dual Graphite Brushes and Silver-Plated Ring
SKU: Tecnoseal 07115

ID 1406668

$ 1,406.88

1-2 weeks delivery time

Shaft Diameter:

Item:

780 g
1100 g
830 g
870 g
1080 g
1120 g
820 g
840 g
910 g

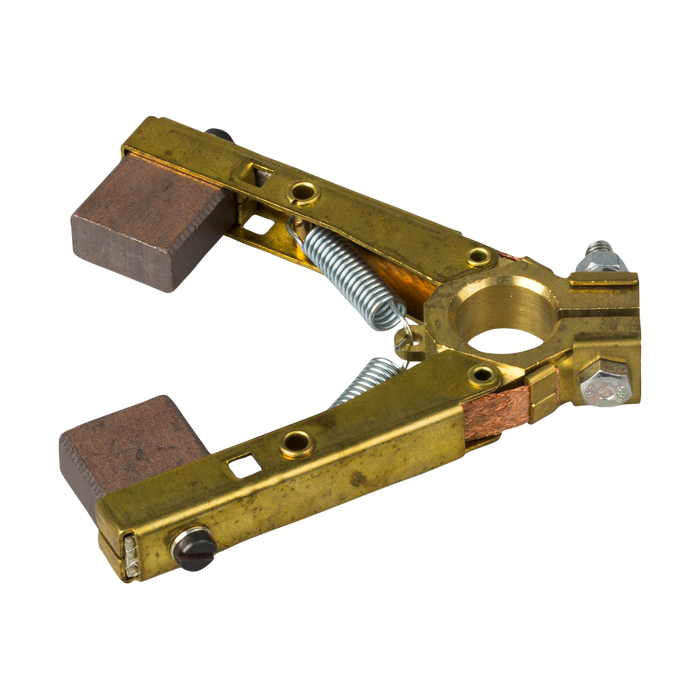

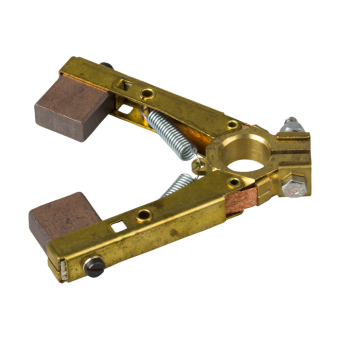

The Tecnoseal 07115–07200 propeller shaft grounding system is a marine grounding kit containing one brush holder with two graphite brushes and one silver-plated contact ring. Available for shaft diameters from 115 to 200 mm, the range includes two ring configurations: 3 mm (a) × 50 mm (h) for diameters 115–127 mm and 4 mm (a) × 40 mm (h) for diameters 130–200 mm. Kit weights range from 0.78 to 1.12 kg. The graphite brushes provide sliding electrical contact with the ring fitted to the rotating propeller shaft.

Description
Ask a Question

Tecnoseal 07115–07200 Propeller Shaft Grounding System with Dual Graphite Brushes and Silver-Plated Ring

The Tecnoseal 07115–07200 Propeller Shaft Grounding System is a marine grounding kit designed to provide electrical contact between a rotating propeller shaft and the vessel's grounding connection.

Each kit contains one brush holder with two graphite brushes and one silver-plated contact ring. The range covers propeller shaft diameters from 115 to 200 mm, with different ring dimensions depending on the selected model.

Key Features

Manufacturer: Tecnoseal
Product Type: Propeller shaft grounding system
Application: Marine propeller shaft grounding
Available Shaft Diameters: 115–200 mm
Brush Holder: 1 included
Graphite Brushes: 2 included
Contact Ring: Silver-plated
Ring Dimensions: a = 3 or 4 mm; h = 50 or 40 mm, depending on model
Kit Weight: 0.78–1.12 kg

Available Models and Technical Specifications

Product Code	Shaft Ø	a	h	Weight
07115	115 mm	3 mm	50 mm	0.78 kg
07120	120 mm	3 mm	50 mm	0.82 kg
07123	123 mm	3 mm	50 mm	0.83 kg
07125	125 mm	3 mm	50 mm	0.84 kg
07127	127 mm	3 mm	50 mm	0.82 kg
07130	130 mm	4 mm	40 mm	0.84 kg
07132	132 mm	4 mm	40 mm	0.84 kg
07140	140 mm	4 mm	40 mm	0.87 kg
07145	145 mm	4 mm	40 mm	0.91 kg
07155	155 mm	4 mm	40 mm	0.91 kg
07160	160 mm	4 mm	40 mm	0.95 kg
07165	165 mm	4 mm	40 mm	0.99 kg
07170	170 mm	4 mm	40 mm	1.08 kg
07175	175 mm	4 mm	40 mm	0.98 kg
07190	190 mm	4 mm	40 mm	1.10 kg
07200	200 mm	4 mm	40 mm	1.12 kg

Kit Contents

1 × Brush holder
2 × Graphite brushes
1 × Silver-plated shaft contact ring

How the Shaft Grounding System Works

The silver-plated contact ring fits around the propeller shaft. Two graphite brushes maintain sliding electrical contact with the ring as the shaft rotates.

The system provides a conductive path between the rotating shaft and the grounding connection when installed as part of the vessel's electrical grounding arrangement.

Choosing the Correct Size

Select the appropriate model according to the propeller shaft diameter. The available sizes range from 115 mm to 200 mm.

Models for shaft diameters of 115–127 mm have catalogue dimensions a = 3 mm and h = 50 mm. Models for diameters of 130–200 mm have dimensions a = 4 mm and h = 40 mm.

Check the shaft diameter, contact ring dimensions and installation space before ordering.

Installation and Maintenance

Fit the contact ring around the shaft and position the brush holder so both graphite brushes maintain contact with the ring. The grounding connection must be installed according to the vessel's electrical system requirements.

During routine maintenance, check the graphite brushes for wear and inspect the contact ring for contamination or damage.

Supply

One Tecnoseal propeller shaft grounding kit in the selected diameter, including one brush holder with two graphite brushes and one silver-plated contact ring.
