The Tecnoseal 00470 is a zinc sacrificial anode for AKIR series marine propellers. It has an outside diameter of 190 mm, an M164.5x3 thread and a weight of 11.90 kg (26.24 lbs). Additional catalogue dimensions include Ø1 145 mm, Ø2 115 mm, Ø3 15 mm, and measurements a 80 mm, b 20 mm and c 55 mm. Designed for propeller corrosion protection, this anode should be selected according to the existing AKIR propeller assembly and mounting dimensions.
- Description
- Ask a Question
-
Tecnoseal 00470 AKIR Propeller Zinc Anode Ø190 mm M164.5x3

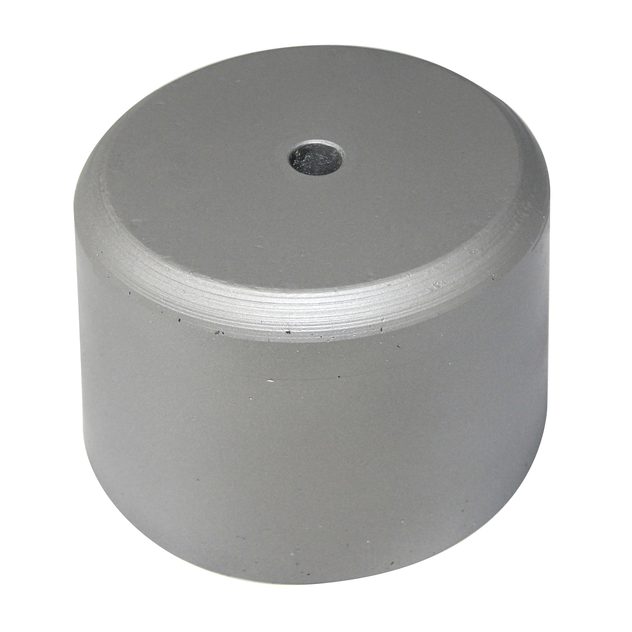

The Tecnoseal 00470 is a zinc sacrificial anode designed for AKIR series marine propeller assemblies. It is used to provide galvanic corrosion protection for underwater metallic components.
The anode features a cylindrical configuration with a recessed mounting section. Its outside diameter is 190 mm, with an M164.5x3 thread and a catalogue weight of 11.90 kg.
Technical Specifications
Parameter Specification Manufacturer Tecnoseal Product Code 00470 Series AKIR Product Type Propeller sacrificial anode Material Zinc Outside Diameter (Ø) 190 mm (7.48 in) Diameter Ø1 145 mm (5.71 in) Diameter Ø2 115 mm (4.53 in) Diameter Ø3 15 mm (0.59 in) Dimension a 80 mm (3.15 in) Dimension b 20 mm (0.79 in) Dimension c 55 mm (2.17 in) Thread (m) M164.5x3 Weight 11.90 kg (26.24 lbs) EAN 8059617811914
AKIR Propeller Application
The Tecnoseal 00470 is intended for AKIR series propeller assemblies requiring a zinc anode with the specified dimensions and mounting thread.
Before ordering, check the outside diameter, internal dimensions and M164.5x3 thread against the existing anode or propeller assembly.
Inspection and Replacement
Inspect the sacrificial anode periodically for material consumption and replace it when necessary. During installation, ensure the mounting arrangement provides suitable electrical contact with the component being protected.
Supply
One Tecnoseal 00470 AKIR zinc propeller anode.
-
