Tecnoseal Riva Mercurius II Zinc Propeller Anodes Ø155–156 mm

Name: Tecnoseal Riva Mercurius II Zinc Propeller Anodes Ø155–156 mm
SKU: Tecnoseal 00436

ID 1406484

$ 1,009.21

1-2 weeks delivery time

Size:

Item:

10.34 kg
11.60 kg

Tecnoseal 00436 and 00436-1 are zinc sacrificial propeller anodes designed for compatible Riva Mercurius II yacht propeller assemblies. Both feature a cylindrical body with a recessed stepped mounting cavity and central fastening opening, providing galvanic corrosion protection for underwater propeller components. The 00436 measures 155 mm in outside diameter and 95 mm in overall height, with a 132 mm dimension i and a weight of 10.34 kg. The 00436-1 measures 156 mm in outside diameter and 100 mm in overall height, with a 130 mm dimension i and a weight of 11.60 kg. Both versions have an Ø1 diameter of 116 mm, while their Ø2 and Ø3 dimensions differ.

Description
Ask a Question

Tecnoseal 00436 / 00436-1 Riva Mercurius II Zinc Propeller Anodes Ø155–156 mm

The Tecnoseal 00436 and 00436-1 are zinc sacrificial propeller anodes designed for compatible Riva Mercurius II yacht propeller assemblies. These anodes provide galvanic corrosion protection for underwater metallic propeller components by acting as replaceable sacrificial elements.

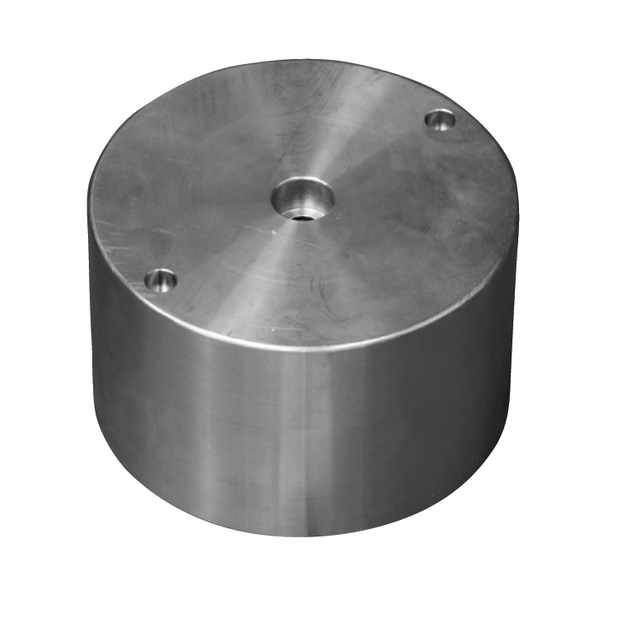

Both models feature a cylindrical external body with a recessed stepped internal mounting cavity and a central fastening opening. Although their outside diameters are nearly identical, their heights, mounting dimensions and weights differ. The 00436 has an outside diameter of 155 mm and a height of 95 mm, while the 00436-1 has an outside diameter of 156 mm and a height of 100 mm.

Technical Specifications

Parameter	00436	00436-1
Manufacturer	Tecnoseal
Application	Riva Mercurius II propeller assemblies
Product Type	Sacrificial propeller anode
Material	Zinc
Body Design	Cylindrical with stepped internal mounting cavity
Outside Diameter (Ø)	155 mm (6.10 in)	156 mm (6.14 in)
Diameter Ø1	116 mm (4.57 in)	116 mm (4.57 in)
Diameter Ø2	22 mm (0.87 in)	15 mm (0.59 in)
Diameter Ø3	88 mm (3.46 in)	98 mm (3.86 in)
Overall Height (h)	95 mm (3.74 in)	100 mm (3.94 in)
Dimension i	132 mm (5.20 in)	130 mm (5.12 in)
Weight	10.34 kg (22.80 lbs)	11.60 kg (25.57 lbs)
EAN	8033837061984	8059617811846

Available Variants

Tecnoseal 00436: Zinc propeller anode with an outside diameter of 155 mm, height of 95 mm, Ø2 of 22 mm and weight of 10.34 kg.
Tecnoseal 00436-1: Zinc propeller anode with an outside diameter of 156 mm, height of 100 mm, Ø2 of 15 mm and weight of 11.60 kg.

Design and Mounting Configuration

The Tecnoseal Riva Mercurius II anodes incorporate a cylindrical exterior with a stepped internal recess. Both share an internal Ø1 dimension of 116 mm, but the remaining mounting measurements vary according to the selected version.

The 00436 has Ø2 = 22 mm, Ø3 = 88 mm and dimension i = 132 mm. The 00436-1 has Ø2 = 15 mm, Ø3 = 98 mm and dimension i = 130 mm. These differences are important when matching the anode to the existing propeller assembly.

Before ordering, compare the manufacturer's mounting dimensions with the existing anode. The two models should not be assumed interchangeable based solely on their similar external diameters.

Corrosion Protection and Maintenance

Made from zinc, these sacrificial anodes are intended to corrode preferentially, helping protect electrically connected underwater metallic propeller components against galvanic corrosion. Periodic inspection is recommended, with replacement when the sacrificial material has been significantly consumed.

During installation, ensure suitable electrical contact between the anode and the metallic component requiring corrosion protection.

Scope of Supply

One Tecnoseal Riva Mercurius II zinc propeller anode in the selected version.
