ID
1406498
$ 729.78
1-2 weeks delivery time
-
+
The Tecnoseal 19012-5 is a zinc sacrificial propeller anode from the Detra series, designed to provide galvanic corrosion protection for compatible marine propeller assemblies. It features a solid circular body with a rounded outer profile and a stepped mounting surface, measuring 125 mm (4.92 in) in outside diameter and 46 mm (1.81 in) in overall height. The anode has a secondary diameter (Ø1) of 105 mm (4.13 in) and a profile dimension (a) of 18 mm (0.71 in). Manufactured from zinc and weighing 3.35 kg (7.39 lbs), it is intended as a replaceable sacrificial component for compatible Detra propeller installations.
- Description
- Ask a Question
-

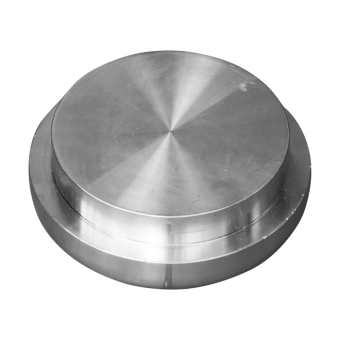

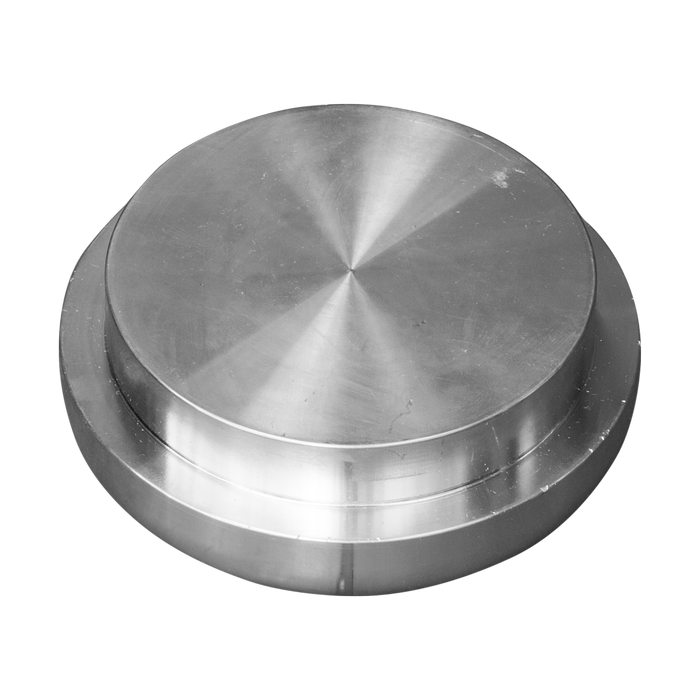

Tecnoseal 19012-5 Detra Zinc Propeller Anode Ø125 mm
The Tecnoseal 19012-5 is a zinc sacrificial propeller anode from the Detra series, designed for corrosion protection of compatible marine propeller assemblies. As a sacrificial component, it is intended to corrode preferentially, helping protect electrically connected underwater metallic parts against galvanic corrosion.
The anode features a solid circular body with a rounded outer edge and a stepped profile on its mounting side. Its outside diameter is 125 mm (4.92 in), with a secondary diameter of 105 mm (4.13 in). The body measures 46 mm (1.81 in) in overall height, while the additional profile dimension (a) is 18 mm (0.71 in). Manufactured from zinc, the anode weighs 3.35 kg (7.39 lbs).
Technical Specifications
Parameter Specification Manufacturer Tecnoseal Product Code 19012-5 Series Detra Product Type Sacrificial propeller anode Material Zinc Body Design Round body with stepped mounting profile Outside Diameter (Ø) 125 mm (4.92 in) Diameter (Ø1) 105 mm (4.13 in) Overall Height (h) 46 mm (1.81 in) Dimension (a) 18 mm (0.71 in) Weight 3.35 kg (7.39 lbs) EAN 8052744987156
Design and Mounting Configuration
The Tecnoseal 19012-5 incorporates a circular body with a rounded external surface and a reduced-diameter mounting section. The manufacturer's technical drawing specifies an outside diameter of 125 mm, a secondary diameter of 105 mm and an overall height of 46 mm. The 18 mm dimension (a) defines the step in the anode's external profile.
These dimensions are important when identifying a suitable replacement for the existing Detra propeller anode. Before ordering, compare the outside diameter, mounting profile and overall height with the original component to confirm the correct fit.
Corrosion Protection and Maintenance
Made from zinc, the Tecnoseal 19012-5 functions as a sacrificial anode within a compatible marine cathodic protection arrangement. The zinc material is gradually consumed as it helps protect electrically connected underwater metallic components against galvanic corrosion.
The anode should be inspected during routine maintenance and replaced when significantly depleted. During installation, ensure suitable electrical continuity between the anode and the component requiring protection.
Scope of Supply
- 1 × Tecnoseal 19012-5 Detra Zinc Propeller Anode Ø125 mm
-
