ID
1406480
$ 1,571.95
1-2 weeks delivery time
-
+

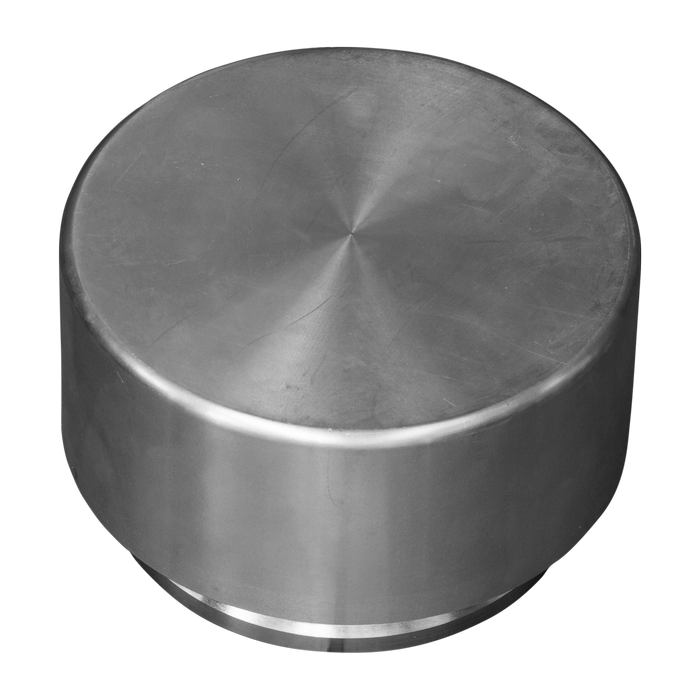

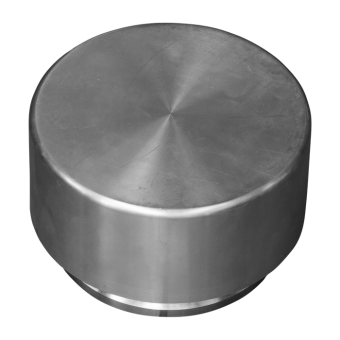

The Tecnoseal 19030 is a zinc sacrificial propeller anode designed for compatible Magellano yacht propeller assemblies, providing corrosion protection for underwater metallic components. Its cylindrical body features a flat outer face, a recessed internal mounting cavity and a stepped circular profile around the opening. The anode measures 157 mm (6.18 in) in outside diameter and 96 mm (3.78 in) in overall height, with an internal diameter (Ø1) of 100 mm (3.94 in). Weighing 8.30 kg (18.30 lbs), it is intended as a replacement sacrificial anode for compatible Magellano propeller installations.
- Description
- Ask a Question
-
Tecnoseal 19030 Magellano Zinc Propeller Anode Ø157 mm
The Tecnoseal 19030 is a zinc sacrificial propeller anode designed for compatible Magellano yacht propeller assemblies. It provides galvanic corrosion protection for underwater metallic components by acting as a replaceable sacrificial element within the vessel's cathodic protection system.
The anode features a substantial cylindrical body with a flat external face and a recessed internal mounting cavity. Its stepped circular mounting profile is designed to accommodate the corresponding propeller assembly. With an outside diameter of 157 mm (6.18 in) and an overall height of 96 mm (3.78 in), the anode incorporates a 100 mm (3.94 in) internal diameter. Manufactured from zinc, it weighs 8.30 kg (18.30 lbs).
Technical Specifications
Parameter Specification Manufacturer Tecnoseal Product Code 19030 Application Magellano propeller assemblies Product Type Sacrificial propeller anode Material Zinc Body Design Cylindrical with recessed mounting cavity Outside Diameter (Ø) 157 mm (6.18 in) Internal Diameter (Ø1) 100 mm (3.94 in) Overall Height (h) 96 mm (3.78 in) Weight 8.30 kg (18.30 lbs) EAN 8059617812102
Design and Mounting Configuration
The Tecnoseal 19030 has a cylindrical external profile with a stepped circular opening and an internal recessed cavity. The manufacturer's technical drawing specifies an outside diameter of 157 mm, an internal diameter of 100 mm and an overall height of 96 mm.
Before ordering, compare the anode's outside diameter, internal opening, overall height and mounting configuration with the existing Magellano propeller anode. The complete mounting geometry should be checked to confirm compatibility with the intended propeller assembly.
Corrosion Protection and Maintenance
As a zinc sacrificial anode, the Tecnoseal 19030 is designed to corrode preferentially, helping protect electrically connected underwater metallic components against galvanic corrosion. The anode should be inspected periodically for material consumption and replaced when significantly depleted.
During installation, ensure suitable electrical contact with the metallic component requiring corrosion protection. Mounting surfaces should be checked for contamination or coatings that could interfere with electrical continuity.
Scope of Supply
- 1 × Tecnoseal 19030 Magellano Zinc Propeller Anode Ø157 mm
-
