Tecnoseal Riva Mercurius & Ego Zinc Propeller Anodes Ø116 mm

Name: Tecnoseal Riva Mercurius & Ego Zinc Propeller Anodes Ø116 mm
SKU: Tecnoseal 00435

ID 1406481

$ 678.41

1-2 weeks delivery time

Item:

Riva Mercurius 4.86 kg
Riva Ego 5.00 kg

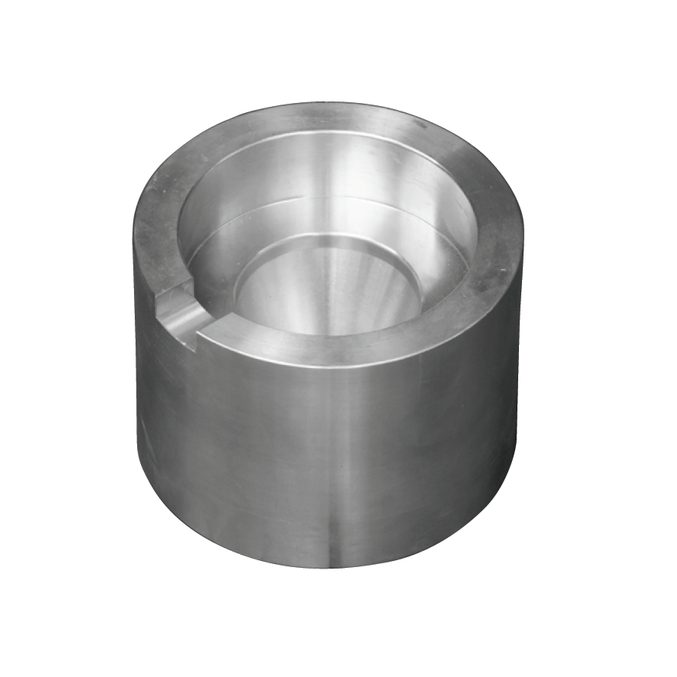

Tecnoseal 00435 and 00435-1 are zinc sacrificial propeller anodes designed for Riva Mercurius and Riva Ego yacht propeller assemblies. Both feature a cylindrical body with a recessed stepped mounting cavity and an outside diameter of 116 mm (4.57 in). The 00435 for Riva Mercurius measures 86 mm in height, with an internal diameter of 88 mm, dimension c of 26 mm and weight of 4.86 kg. The 00435-1 for Riva Ego measures 92 mm in height, with an internal diameter of 87 mm, dimension c of 8.50 mm and weight of 5.00 kg. Both versions have a 22 mm central opening and provide sacrificial corrosion protection for compatible underwater propeller components.

Description
Ask a Question

Tecnoseal 00435 / 00435-1 Riva Mercurius & Ego Zinc Propeller Anodes Ø116 mm

The Tecnoseal 00435 and 00435-1 are zinc sacrificial propeller anodes designed for Riva Mercurius and Riva Ego yacht propeller assemblies. These anodes provide galvanic corrosion protection for compatible underwater metallic propeller components by acting as replaceable sacrificial elements.

Both models feature a cylindrical external body with a recessed internal mounting cavity and a central opening. They share an outside diameter of 116 mm (4.57 in), but their mounting geometry and overall heights differ. The Riva Mercurius version measures 86 mm in height and weighs 4.86 kg, while the Riva Ego version measures 92 mm in height and weighs 5.00 kg.

Technical Specifications

Parameter	00435	00435-1
Manufacturer	Tecnoseal
Application	Riva Mercurius	Riva Ego
Product Type	Sacrificial propeller anode
Material	Zinc
Body Design	Cylindrical with recessed mounting cavity
Outside Diameter (Ø)	116 mm (4.57 in)
Internal Diameter (Ø1)	88 mm (3.46 in)	87 mm (3.43 in)
Central Opening (Ø2)	22 mm (0.87 in)
Overall Height (h)	86 mm (3.39 in)	92 mm (3.62 in)
Dimension c	26 mm (1.02 in)	8.50 mm (0.33 in)
Weight	4.86 kg (10.71 lbs)	5.00 kg (11.02 lbs)
EAN	8033837061977	8052744984766

Available Variants

Tecnoseal 00435 – Riva Mercurius: Zinc propeller anode with an outside diameter of 116 mm, height of 86 mm, internal diameter Ø1 of 88 mm and weight of 4.86 kg.
Tecnoseal 00435-1 – Riva Ego: Zinc propeller anode with an outside diameter of 116 mm, height of 92 mm, internal diameter Ø1 of 87 mm and weight of 5.00 kg.

Design and Mounting Configuration

The anodes incorporate a cylindrical external profile with a stepped internal mounting recess. Both versions have a 116 mm outside diameter and a 22 mm central opening, but their internal dimensions differ according to the corresponding Riva propeller assembly.

The 00435 has an overall height of 86 mm and an internal diameter of 88 mm, while the 00435-1 has a height of 92 mm and an internal diameter of 87 mm. The manufacturer's technical drawing also specifies different c dimensions of 26 mm and 8.50 mm respectively.

Before ordering, identify the correct Riva yacht model and compare the existing anode's mounting profile, overall height and internal diameters. The two variants should not be considered interchangeable solely because they share the same outside diameter.

Corrosion Protection and Maintenance

Manufactured from zinc, these sacrificial anodes are designed to corrode preferentially, helping protect electrically connected underwater metallic components against galvanic corrosion. Periodic inspection is recommended, with replacement when the anode has been significantly consumed.

During installation, ensure suitable electrical contact between the anode and the metallic component requiring protection.

Scope of Supply

One Tecnoseal Riva zinc propeller anode in the selected version.
