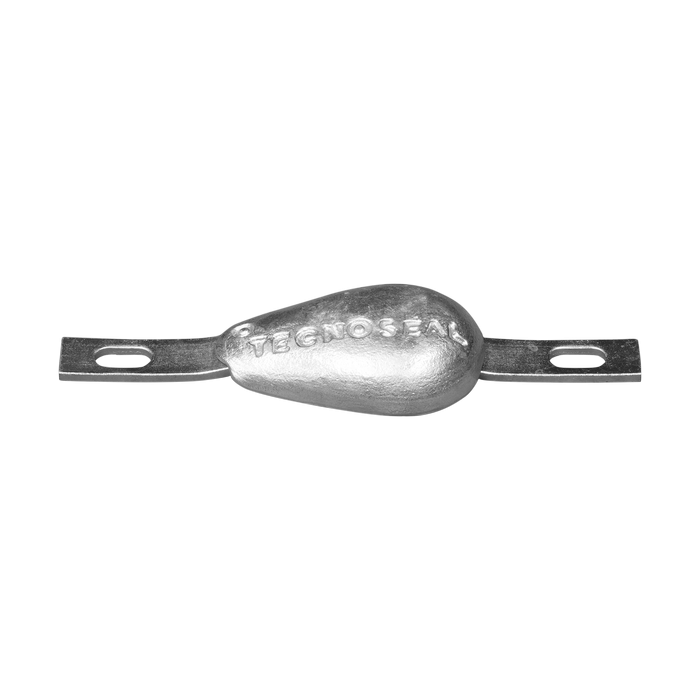

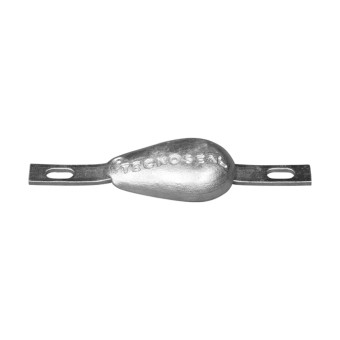

Tecnoseal Magnesium Teardrop Type Bolt-On Sacrificial Anodes with Slotted Holes

Name: Tecnoseal Magnesium Teardrop Type Bolt-On Sacrificial Anodes with Slotted Holes
SKU: Tecnoseal 00350bmg

ID 1399244

$ 42.97

1-2 weeks delivery time

Size:

120x78x25
135x87x35
160x100x40
140x90x42

Item:

1000 g
360 g
700 g
630 g

Tecnoseal magnesium Teardrop Type bolt-on sacrificial anodes with integrated mounting strap and slotted fixing holes. The range includes four models weighing from 0.36 to 1.00 kg, with anode body dimensions from 120 × 78 × 25 mm to 160 × 100 × 40 mm. All versions have a 200 mm mounting dimension i, with slotted holes of 13 × 25 or 13 × 35 mm and strap sizes of 250 × 25 × 5 mm or 255 × 25 × 5 mm. Select the required version according to body dimensions, slot size, weight and strap dimensions.

Description
Ask a Question

Tecnoseal Magnesium Teardrop Type Bolt-On Sacrificial Anodes with Slotted Holes – 0.36–1.00 kg

The Tecnoseal Magnesium Teardrop Type Bolt-On Anodes are sacrificial anodes with integrated mounting straps and slotted fixing holes. The range includes four magnesium models with different body dimensions, weights and fixing-slot configurations.

All four versions use a 200 mm mounting dimension i. For replacement selection, compare the anode body dimensions, slotted-hole size, weight and strap dimensions.

Key Features

Brand: Tecnoseal
Product Type: Bolt-on sacrificial anode with strap
Type: Teardrop Type
Material: Magnesium
Mounting: Bolt-on
Fixing: Slotted holes
Available Models: 00350BMG, 00351-1MG, 00351-2-BMG and 00352AMG
Weight Range: 0.36–1.00 kg
Body Length Range (l): 120–160 mm
Body Width Range (a): 78–100 mm
Body Height Range (h): 25–42 mm
Mounting Dimension (i): 200 mm
Slotted Hole Sizes: 13 × 25 mm and 13 × 35 mm

Available Models and Technical Specifications

Tecnoseal Code	Weight	l	a	h	i	Slotted Hole	Strap / Insert
00350BMG	0.36 kg / 360 g	120 mm	78 mm	25 mm	200 mm	13 × 35 mm	255 × 25 × 5 mm
00351-1MG	0.70 kg / 700 g	135 mm	87 mm	35 mm	200 mm	13 × 25 mm	250 × 25 × 5 mm
00351-2-BMG	0.63 kg / 630 g	140 mm	90 mm	42 mm	200 mm	13 × 25 mm	250 × 25 × 5 mm
00352AMG	1.00 kg / 1000 g	160 mm	100 mm	40 mm	200 mm	13 × 25 mm	250 × 25 × 5 mm
