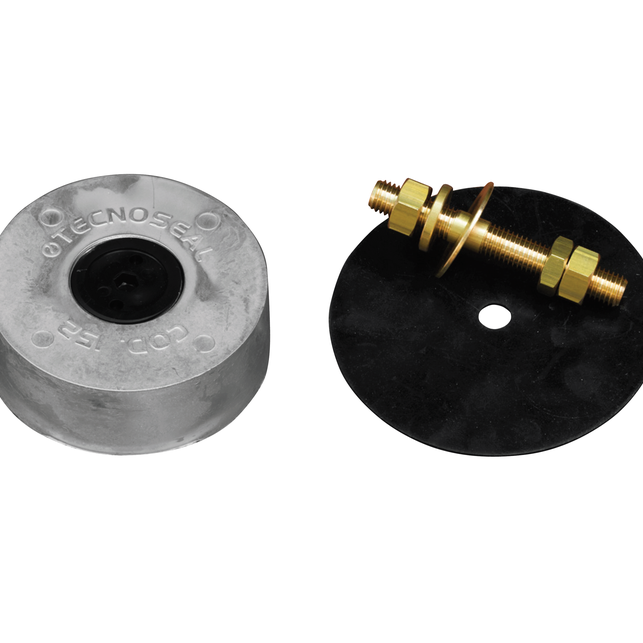

Tecnoseal Magnesium Baglietto-Type Stern Disc Sacrificial Anodes Ø135x47 mm with Steel Insert

Name: Tecnoseal Magnesium Baglietto-Type Stern Disc Sacrificial Anodes Ø135x47 mm with Steel Insert
SKU: Tecnoseal 00152mg

ID 1399961

$ 266.89

1-2 weeks delivery time

Type:

Anode KIT
Anode

Size:

Ø135x47

Item:

980 g
1210 g

Tecnoseal magnesium Baglietto-type stern disc sacrificial anodes with steel insert for stern applications, available in two supply configurations. Tecnoseal 00152MG is supplied as anode only with PP cap and weighs 0.98 kg, while Tecnoseal 00153MG is supplied as a complete 1.21 kg kit comprising the stern disc anode together with 00153-PERNOCOMPLETO / nut, PP cap and pad. Both versions measure Ø135 x 47 mm and share dimensions a 35 mm, b 9 mm, Ø1 50x3 mm, Ø2 32 mm and Ø3 14.5 mm.

Description
Ask a Question

Tecnoseal Magnesium Baglietto-Type Stern Disc Sacrificial Anodes with Steel Insert – Anode + PP Cap & Complete Kit Ø135x47 mm

The Tecnoseal Magnesium Baglietto-Type Stern Disc Anodes are sacrificial anodes for stern applications featuring a steel insert. The range includes two magnesium versions with identical dimensions but different supply configurations.

Tecnoseal 00152MG is supplied as anode only + PP cap, while Tecnoseal 00153MG is supplied as a complete kit. Both versions have an outside diameter of Ø135 mm, a height of 47 mm, dimensions a 35 mm and b 9 mm, Ø1 50x3 mm, Ø2 32 mm and Ø3 14.5 mm.

Key Features

Brand: Tecnoseal
Product Type: Baglietto-type stern disc sacrificial anode
Material: Magnesium
Insert: Steel insert
Application: Stern
Available Models: 00152MG and 00153MG
Supply Options: Anode only + PP cap or complete kit
Diameter (Ø): 135 mm
Height (h): 47 mm
a: 35 mm
b: 9 mm
Ø1: 50x3 mm
Ø2: 32 mm
Ø3: 14.5 mm

Available Versions and Technical Specifications

Tecnoseal Code	Supply	Weight	Diameter (Ø)	a	b	Height (h)	Ø1	Ø2	Ø3
00152MG	Anode Only + PP Cap	0.98 kg / 980 g	135 mm	35 mm	9 mm	47 mm	50x3 mm	32 mm	14.5 mm
00153MG	Complete Kit	1.21 kg / 1210 g	135 mm	35 mm	9 mm	47 mm	50x3 mm	32 mm	14.5 mm

Tecnoseal 00152MG – Ø135 × 47 mm Anode + PP Cap

Material: Magnesium
Insert: Steel insert
Supply: Anode only + PP cap
Weight: 0.98 kg / 980 g / 2.16 lb
Diameter: Ø135 mm / 5.31 in
a: 35 mm / 1.38 in
b: 9 mm / 0.35 in
Height: 47 mm / 1.85 in
Ø1: 50x3 mm / 1.97x0.12 in
Ø2: 32 mm / 1.26 in
Ø3: 14.5 mm / 0.57 in

Tecnoseal 00153MG – Ø135 × 47 mm Complete Kit

Material: Magnesium
Insert: Steel insert
Supply: Complete kit
Weight: 1.21 kg / 1210 g / 2.67 lb
Diameter: Ø135 mm / 5.31 in
a: 35 mm / 1.38 in
b: 9 mm / 0.35 in
Height: 47 mm / 1.85 in
Ø1: 50x3 mm / 1.97x0.12 in
Ø2: 32 mm / 1.26 in
Ø3: 14.5 mm / 0.57 in
Kit Composition: Stern disc anode + 00153-PERNOCOMPLETO / nut, PP cap and pad

Dimensions for Model Selection

Ø: Outside diameter
a: 35 mm
b: 9 mm
h: Anode height
Ø1: 50x3 mm
Ø2: 32 mm
Ø3: 14.5 mm

Select the required version according to supply configuration: 00152MG as anode only with PP cap or 00153MG as the complete kit.
