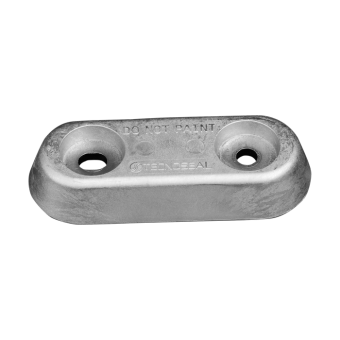

Tecnoseal Magnesium Vetus-Type Oval Plate Bolt-On Sacrificial Anodes

Tecnoseal Magnesium Vetus-Type Oval Plate Bolt-On Sacrificial Anodes – 0.10–1.25 kg

The Tecnoseal Magnesium Vetus-Type Oval Plate Anodes are bolt-on sacrificial anodes for hull and transom applications. The range includes five magnesium models with different overall dimensions, weights, hole-centre distances and mounting configurations.

Tecnoseal 00220-0MG, also referenced as Osculati 43.902.15, is the compact version, measuring 98 x 44 x 18 mm with 48.5 mm hole centres and Ø10.5 mm mounting holes. The larger models range from 148 to 350 mm in length and use Ø1 recess dimensions from 31 to 38 mm with Ø2 slotted mounting holes of 11x15 or 13x25 mm. Tecnoseal 00220MG is also referenced as Osculati 43.902.30.

Key Features

• Brand: Tecnoseal
• Type: Vetus Type / Oval Plate
• Product Type: Bolt-on sacrificial anode
• Material: Magnesium
• Application: Hull and transom
• Available Models: 00220-0MG, 00220MG, 00221MG, 00222MG and 00223MG
• Osculati Cross References: 00220-0MG / 43.902.15; 00220MG / 43.902.30
• Length Range: 98–350 mm
• Width Range: 44–68 mm
• Height Range: 18–36 mm
• Hole Centre Distance (i): 48.5–200 mm
• Weight Range: 0.10–1.25 kg

Available Models and Technical Specifications

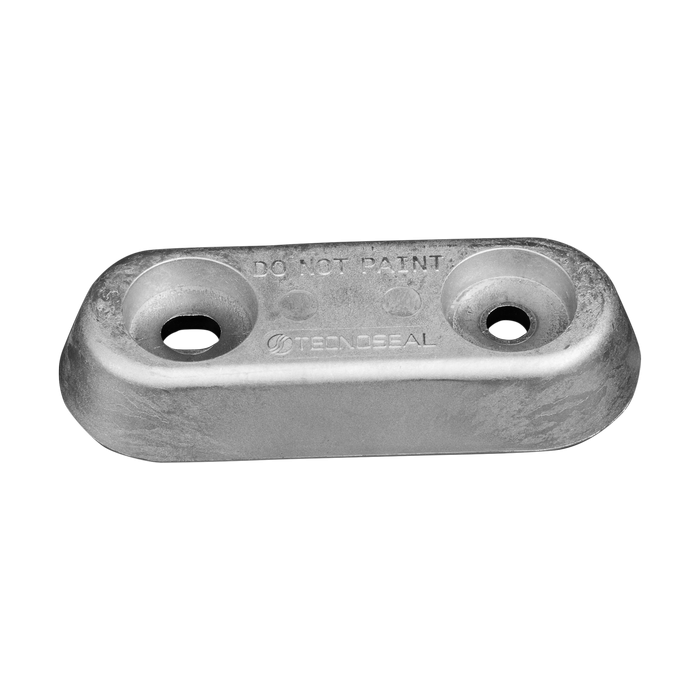

Tecnoseal 00220-0MG / Osculati 43.902.15 – 98 × 44 × 18 mm

• Tecnoseal Code: 00220-0MG
• Osculati Reference: 43.902.15
• Material: Magnesium
• Weight: 0.10 kg / 100 g / 0.22 lb
• Length (l): 98 mm / 3.86 in
• Width (a): 44 mm / 1.73 in
• Height (h): 18 mm / 0.71 in
• Hole Centres (i): 48.5 mm / 1.91 in
• Mounting Hole Diameter (Ø): 10.5 mm / 0.41 in

Tecnoseal 00220MG / Osculati 43.902.30 – 148 × 58 × 25 mm

• Tecnoseal Code: 00220MG
• Osculati Reference: 43.902.30
• Material: Magnesium
• Weight: 0.31 kg / 310 g / 0.68 lb
• Length (l): 148 mm / 5.83 in
• Width (a): 58 mm / 2.28 in
• Height (h): 25 mm / 0.98 in
• Hole Centres (i): 80 mm / 3.15 in
• Ø1: 31 mm / 1.22 in
• Ø2: 11x15 mm / 0.43x0.59 in

Tecnoseal 00221MG – 247 × 63 × 30 mm

• Material: Magnesium
• Weight: 0.68 kg / 680 g / 1.50 lb
• Length (l): 247 mm / 9.72 in
• Width (a): 63 mm / 2.48 in
• Height (h): 30 mm / 1.18 in
• Hole Centres (i): 140 mm / 5.51 in
• Ø1: 32 mm / 1.26 in
• Ø2: 13x25 mm / 0.51x0.98 in

Tecnoseal 00222MG – 290 × 53 × 33 mm

• Material: Magnesium
• Weight: 0.80 kg / 800 g / 1.76 lb
• Length (l): 290 mm / 11.42 in
• Width (a): 53 mm / 2.09 in
• Height (h): 33 mm / 1.30 in
• Hole Centres (i): 200 mm / 7.87 in
• Ø1: 32 mm / 1.26 in
• Ø2: 13x25 mm / 0.51x0.98 in

Tecnoseal 00223MG – 350 × 68 × 36 mm

• Material: Magnesium
• Weight: 1.25 kg / 1250 g / 2.76 lb
• Length (l): 350 mm / 13.78 in
• Width (a): 68 mm / 2.68 in
• Height (h): 36 mm / 1.42 in
• Hole Centres (i): 200 mm / 7.87 in
• Ø1: 38 mm / 1.50 in
• Ø2: 13x25 mm / 0.51x0.98 in

Dimensions for Model Selection

• l: Overall length
• a: Overall width
• h: Anode height
• i: Hole-centre distance
• Ø: Mounting-hole diameter for 00220-0MG
• Ø1: Recess diameter for 00220MG–00223MG
• Ø2: Slotted mounting-hole dimensions for 00220MG–00223MG

For replacement selection, compare the overall dimensions, hole-centre distance, mounting dimensions and anode weight with the existing installation.
