ID
1399136
$ 65.61
1-2 weeks delivery time
Size:
- 95x40x25
- 75x34x16
- 120x46x35
- 140x82x26
Item:
- 140 g
- 200 g
- 700 g
- 450 g
Tecnoseal magnesium Scandinavian Type bolt-on sacrificial anodes with mounting strap, available in four sizes from 140 to 700 g. The range includes body dimensions from 75 × 34 × 16 mm to 140 × 82 × 26 mm, overall dimension i from 132 to 180 mm, mounting slots of 9 × 20 or 13 × 35 mm and strap sizes from 170 × 20 × 3 to 255 × 25 × 5 mm. Select the required model according to body dimensions, mounting-slot size, overall dimension i and strap dimensions.
- Description
- Ask a Question
-

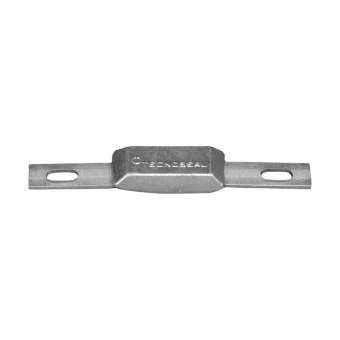

Tecnoseal Magnesium Scandinavian Type Bolt-On Sacrificial Anodes with Strap – 0.14–0.70 kg
The Tecnoseal Magnesium Scandinavian Type Bolt-On Anodes are sacrificial anodes with an integrated mounting strap. The range includes four magnesium models with different body dimensions, mounting-slot sizes, overall mounting dimensions and weights.
The available versions range from the compact 00385MG at 140 g to the larger 00388MG at 700 g. For replacement selection, compare the anode body dimensions together with dimension i, mounting-slot dimensions and strap size.
Key Features
- Brand: Tecnoseal
- Product Type: Bolt-on sacrificial anode with strap
- Type: Scandinavian Type
- Material: Magnesium
- Mounting: Bolt-on
- Available Models: 00385MG, 00386MG, 00387MG and 00388MG
- Weight Range: 0.14–0.70 kg
- Body Length Range (l): 75–140 mm
- Body Width Range (a): 34–82 mm
- Body Height Range (h): 16–35 mm
- Dimension i Range: 132–180 mm
Available Models and Technical Specifications
Tecnoseal Code Weight l a h i Mounting Slot Strap 00385MG 0.14 kg / 140 g 75 mm 34 mm 16 mm 135 mm 9 × 20 mm 175 × 20 × 3 mm 00386MG 0.20 kg / 200 g 95 mm 40 mm 25 mm 132 mm 9 × 20 mm 170 × 20 × 3 mm 00387MG 0.45 kg / 450 g 120 mm 46 mm 35 mm 180 mm 13 × 35 mm 255 × 25 × 5 mm 00388MG 0.70 kg / 700 g 140 mm 82 mm 26 mm 180 mm 13 × 35 mm 255 × 25 × 5 mm

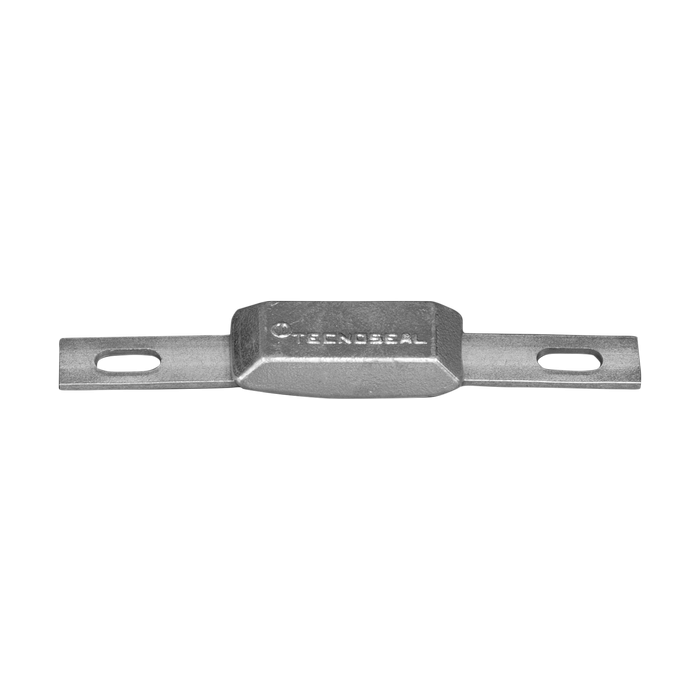

Tecnoseal 00385MG – 140 g
- Product Code: 00385MG
- Material: Magnesium
- Body Dimensions (l × a × h): 75 × 34 × 16 mm
- Dimension i: 135 mm
- Mounting Slot: 9 × 20 mm
- Strap: 175 × 20 × 3 mm
- Weight: 0.14 kg / 140 g
Tecnoseal 00386MG – 200 g
- Product Code: 00386MG
- Material: Magnesium
- Body Dimensions (l × a × h): 95 × 40 × 25 mm
- Dimension i: 132 mm
- Mounting Slot: 9 × 20 mm
- Strap: 170 × 20 × 3 mm
- Weight: 0.20 kg / 200 g
Tecnoseal 00387MG – 450 g
- Product Code: 00387MG
- Material: Magnesium
- Body Dimensions (l × a × h): 120 × 46 × 35 mm
- Dimension i: 180 mm
- Mounting Slot: 13 × 35 mm
- Strap: 255 × 25 × 5 mm
- Weight: 0.45 kg / 450 g
Tecnoseal 00388MG – 700 g
- Product Code: 00388MG
- Material: Magnesium
- Body Dimensions (l × a × h): 140 × 82 × 26 mm
- Dimension i: 180 mm
- Mounting Slot: 13 × 35 mm
- Strap: 255 × 25 × 5 mm
- Weight: 0.70 kg / 700 g
Dimensions for Model Selection
- l: Anode body length
- a: Anode body width
- h: Anode body height
- i: Overall dimension shown in the Tecnoseal drawing
- Mounting Slot: Slotted fixing-hole dimensions
- Strap: Mounting strap dimensions
For replacement selection, compare the body dimensions together with dimension i, mounting-slot size and strap dimensions.
-
