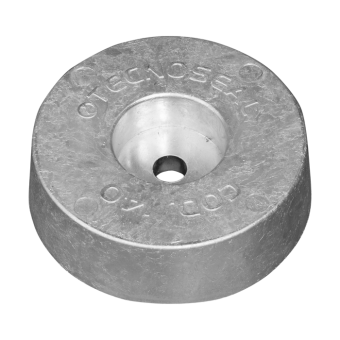

Tecnoseal Magnesium Stern Disc Sacrificial Anodes

ID 1399335

$ 130.45

1-2 weeks delivery time

Type:

Anode Only
Anode KIT

Size:

Ø125x38
Ø140x30
Ø140x35

Item:

680 g
1040 g
750 g
830 g
960 g
1130 g

Tecnoseal magnesium stern disc sacrificial anodes for stern applications, available either as anode only without insert or as complete kits with mounting components. The range covers Ø125 and Ø140 mm outside diameters, heights from 30 to 38 mm and weights from 0.68 to 1.13 kg depending on size and supply configuration. All versions feature Ø1 50 mm, Ø2 14.5 mm and Ø3 48 mm dimensions. Complete kits include the corresponding stern disc anode together with 00153-PERNOCOMPLETO, nut, PP cap and pad. Tecnoseal 00140MG corresponds to Osculati 43.210.22 and Tecnoseal 00131MG corresponds to Osculati 43.210.23. Select the required version according to diameter, height, weight and supply configuration.

Description
Ask a Question

Tecnoseal Magnesium Stern Disc Sacrificial Anodes – Anode Only & Complete Kits Ø125–140 mm

The Tecnoseal Magnesium Stern Disc Anodes are sacrificial anodes for stern applications, available in two supply configurations: anode only without insert or as a complete kit with mounting components.

The range covers outside diameters of Ø125 and Ø140 mm with heights from 30 to 38 mm. All variants share the same Ø1, Ø2 and Ø3 dimensions. The complete kit versions include the corresponding stern disc anode together with 00153-PERNOCOMPLETO, nut, PP cap and pad.

Tecnoseal 00140MG is also referenced as Osculati 43.210.22, while Tecnoseal 00131MG corresponds to Osculati 43.210.23.

Key Features

Brand: Tecnoseal
Product Type: Stern disc sacrificial anode
Material: Magnesium
Application: Stern
Supply Options: Anode only without insert or complete kit
Anode Only Models: 00140MG, 00130MG and 00131MG
Complete Kit Models: 00141MG, 00130CMG and 00131CMG
Cross References: Tecnoseal 00140MG / Osculati 43.210.22; Tecnoseal 00131MG / Osculati 43.210.23
Outside Diameter Range: Ø125–140 mm
Height Range: 30–38 mm
Weight Range: 0.68–1.13 kg
Ø1: 50 mm
Ø2: 14.5 mm
Ø3: 48 mm

Available Models and Technical Specifications

Tecnoseal Code	Osculati Reference	Supply	Weight	Diameter (Ø)	Height (h)	Ø1	Ø2	Ø3
00140MG	43.210.22	Anode Only	0.75 kg / 750 g	125 mm	38 mm	50 mm	14.5 mm	48 mm
00141MG	—	Complete Kit	1.04 kg / 1040 g	125 mm	38 mm	50 mm	14.5 mm	48 mm
00130MG	—	Anode Only	0.68 kg / 680 g	140 mm	30 mm	50 mm	14.5 mm	48 mm
00130CMG	—	Complete Kit	0.96 kg / 960 g	140 mm	30 mm	50 mm	14.5 mm	48 mm
00131MG	43.210.23	Anode Only	0.83 kg / 830 g	140 mm	35 mm	50 mm	14.5 mm	48 mm
00131CMG	—	Complete Kit	1.13 kg / 1130 g	140 mm	35 mm	50 mm	14.5 mm	48 mm

Anode Only Versions

Tecnoseal 00140MG / Osculati 43.210.22 – Ø125 × 38 mm

Supply: Anode only, without insert
Material: Magnesium
Diameter: Ø125 mm / 4.92 in
Height: 38 mm / 1.50 in
Ø1: 50 mm / 1.97 in
Ø2: 14.5 mm / 0.57 in
Ø3: 48 mm / 1.89 in
Weight: 0.75 kg / 750 g

Tecnoseal 00130MG – Ø140 × 30 mm

Supply: Anode only, without insert
Material: Magnesium
Diameter: Ø140 mm / 5.51 in
Height: 30 mm / 1.18 in
Ø1: 50 mm / 1.97 in
Ø2: 14.5 mm / 0.57 in
Ø3: 48 mm / 1.89 in
Weight: 0.68 kg / 680 g

Tecnoseal 00131MG / Osculati 43.210.23 – Ø140 × 35 mm

Supply: Anode only, without insert
Material: Magnesium
Diameter: Ø140 mm / 5.51 in
Height: 35 mm / 1.38 in
Ø1: 50 mm / 1.97 in
Ø2: 14.5 mm / 0.57 in
Ø3: 48 mm / 1.89 in
Weight: 0.83 kg / 830 g

Complete Kit Versions

The complete kits include the corresponding magnesium stern disc anode together with 00153-PERNOCOMPLETO, nut, PP cap and pad.

Tecnoseal 00141MG – Ø125 × 38 mm Complete Kit

Supply: Complete kit
Material: Magnesium
Diameter: Ø125 mm / 4.92 in
Height: 38 mm / 1.50 in
Ø1: 50 mm / 1.97 in
Ø2: 14.5 mm / 0.57 in
Ø3: 48 mm / 1.89 in
Kit Weight: 1.04 kg / 1040 g
Kit Components: 00140 + 00153-PERNOCOMPLETO + nut + PP cap + pad

Tecnoseal 00130CMG – Ø140 × 30 mm Complete Kit

Supply: Complete kit
Material: Magnesium
Diameter: Ø140 mm / 5.51 in
Height: 30 mm / 1.18 in
Ø1: 50 mm / 1.97 in
Ø2: 14.5 mm / 0.57 in
Ø3: 48 mm / 1.89 in
Kit Weight: 0.96 kg / 960 g
Kit Components: 00130 + 00153-PERNOCOMPLETO + nut + PP cap + pad

Tecnoseal 00131CMG – Ø140 × 35 mm Complete Kit

Supply: Complete kit
Material: Magnesium
Diameter: Ø140 mm / 5.51 in
Height: 35 mm / 1.38 in
Ø1: 50 mm / 1.97 in
Ø2: 14.5 mm / 0.57 in
Ø3: 48 mm / 1.89 in
Kit Weight: 1.13 kg / 1130 g
Kit Components: 00131 + 00153-PERNOCOMPLETO + nut + PP cap + pad

Dimensions for Model Selection

Ø: Outside diameter
h: Anode height
Ø1: Upper recess diameter
Ø2: Central hole diameter
Ø3: Lower recess diameter

For replacement selection, compare the outside diameter, height, Ø1 / Ø2 / Ø3 dimensions, weight and required supply configuration with the existing installation.
