ID
1399967
$ 164.87
1-2 weeks delivery time
Type:
- Anode KIT
- Anode
Size:
- Ø120x35
Item:
- 550 g
- 780 g

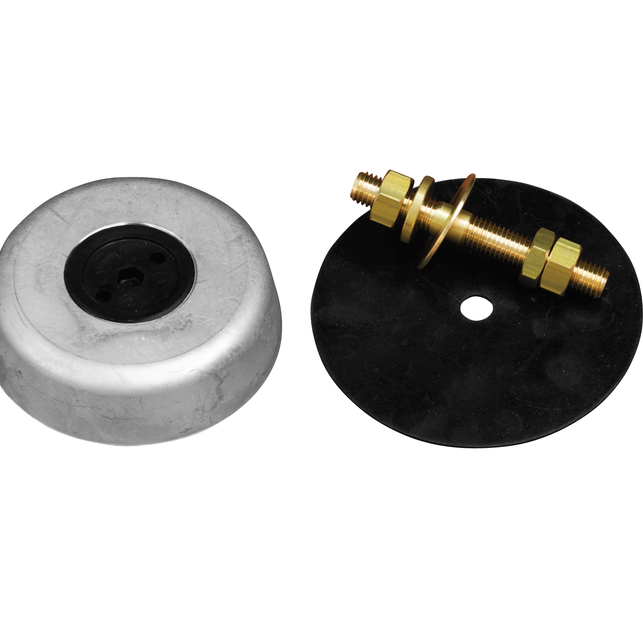

Tecnoseal magnesium Baglietto-type stern disc sacrificial anodes with steel insert for stern applications. The range includes two versions with the same Ø120 x 35 mm body dimensions and insert dimensions Ø1 50x3 mm, Ø2 32 mm and Ø3 14 mm. Available as anode only (00154MG, 0.55 kg) or as a complete kit (00154CMG, 0.78 kg) supplied with 00153-PERNOCOMPLETO / nut, PP cap and pad.
- Description
- Ask a Question
-
Tecnoseal Magnesium Baglietto-Type Stern Disc Sacrificial Anodes with Steel Insert – Ø120x35 mm
The Tecnoseal Magnesium Baglietto-Type Stern Disc Anodes are sacrificial anodes designed for stern applications. These models feature a steel insert and share the same main dimensions.
The range includes two magnesium versions: 00154MG, also referenced as Osculati 43.918.48, supplied as anode only, and 00154CMG supplied as a complete kit. Both versions have an outside diameter of Ø120 mm, a height of 35 mm, and insert / mounting dimensions Ø1 50x3 mm, Ø2 32 mm and Ø3 14 mm.
Key Features
- Brand: Tecnoseal
- Product Type: Baglietto-type stern disc sacrificial anode
- Material: Magnesium
- Application: Stern
- Insert: Steel insert
- Available Models: 00154MG, 00154CMG
- Cross Reference: Tecnoseal 00154MG / Osculati 43.918.48
- Diameter (Ø): 120 mm
- Height (h): 35 mm
- Ø1: 50x3 mm
- Ø2: 32 mm
- Ø3: 14 mm
- Weight Range: 0.55–0.78 kg
Available Variations and Technical Specifications
Tecnoseal Code Osculati Reference Version Weight Diameter (Ø) Height (h) Ø1 Ø2 Ø3 00154MG 43.918.48 Anode only 0.55 kg / 550 g 120 mm 35 mm 50x3 mm 32 mm 14 mm 00154CMG — Complete kit 0.78 kg / 780 g 120 mm 35 mm 50x3 mm 32 mm 14 mm
Model Details
- 00154MG: Magnesium stern disc anode, anode only
- Osculati Reference: 43.918.48
- Weight: 0.55 kg / 550 g / 1.21 lb
- Dimensions: Ø120 x 35 mm
- Ø1: 50x3 mm
- Ø2: 32 mm
- Ø3: 14 mm
- 00154CMG: Magnesium stern disc anode kit
- Weight: 0.78 kg / 780 g / 1.72 lb
- Dimensions: Ø120 x 35 mm
- Ø1: 50x3 mm
- Ø2: 32 mm
- Ø3: 14 mm
- Kit Composition: 00154, 00153-PERNOCOMPLETO / nut, PP cap and pad
Dimensions for Model Selection
- Ø: Outside diameter
- h: Anode height
- Ø1: Insert dimension
- Ø2: Recess diameter
- Ø3: Central hole diameter
For replacement selection, compare the outside diameter, height, Ø1 / Ø2 / Ø3 dimensions, supply type and weight with the existing installation.
-
