ID
1399316
$ 300.41
1-2 weeks delivery time
Size:
- Ø230x25
- Ø150x25
- Ø230x30
- Ø160x32
Item:
- 700 g
- 1800 g
- 2200 g
- 850 g

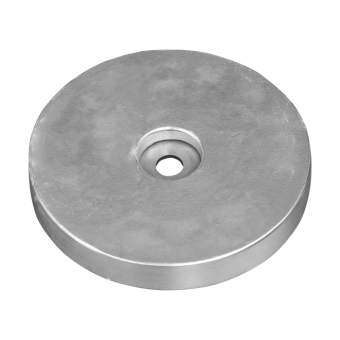

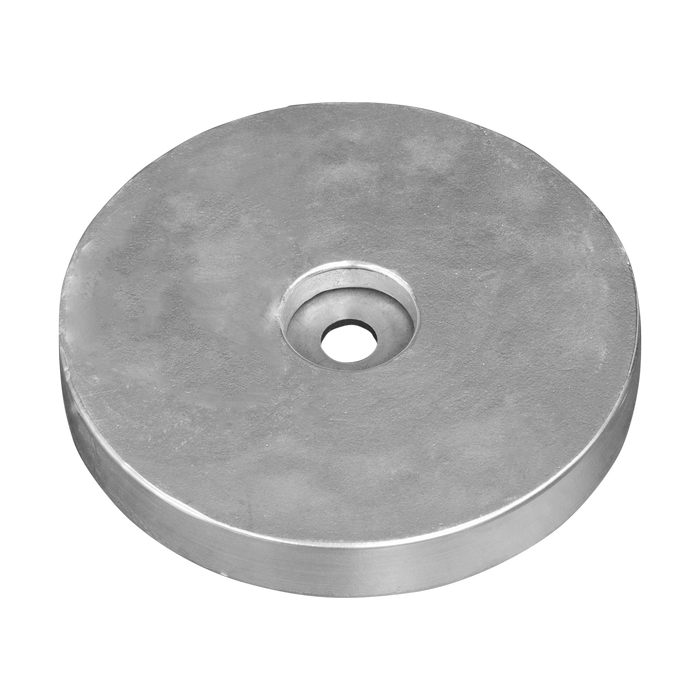

Tecnoseal magnesium large disc sacrificial anodes with steel insert for hull and transom applications. The range includes four models with outside diameters from Ø150 to Ø230 mm, heights from 25 to 32 mm and weights from 0.70 to 2.20 kg. All available magnesium versions feature a Ø14 mm central mounting hole. Select the required model according to outside diameter, height and anode weight.
- Description
- Ask a Question
-
Tecnoseal Magnesium Large Disc Sacrificial Anodes with Steel Insert for Hull & Transom – Ø150–230 mm
The Tecnoseal Magnesium Large Disc Anodes are large-size sacrificial disc anodes with a steel insert for hull and transom applications. The range includes four magnesium models with different outside diameters, heights and weights.
Available sizes range from Ø150 × 25 mm to Ø230 × 30 mm, with weights from 0.70 to 2.20 kg. All four magnesium variants use a Ø14 mm central mounting hole.
Key Features
- Brand: Tecnoseal
- Product Type: Large disc sacrificial anode
- Material: Magnesium
- Insert: Steel
- Applications: Hull and transom
- Available Models: 00158MG, 00159MG, 00156MG and 00157MG
- Outside Diameter Range: Ø150–230 mm
- Height Range: 25–32 mm
- Central Hole: Ø14 mm
- Weight Range: 0.70–2.20 kg
Available Models and Technical Specifications
Tecnoseal Code Weight Diameter (Ø) Height (h) Central Hole (Ø1) 00158MG 0.70 kg / 700 g 150 mm 25 mm 14 mm 00159MG 0.85 kg / 850 g 160 mm 32 mm 14 mm 00156MG 1.80 kg / 1800 g 230 mm 25 mm 14 mm 00157MG 2.20 kg / 2200 g 230 mm 30 mm 14 mm
Tecnoseal 00158MG – 700 g
- Material: Magnesium
- Diameter: Ø150 mm / 5.91 in
- Height: 25 mm / 0.98 in
- Central Hole: Ø14 mm / 0.55 in
- Weight: 0.70 kg / 700 g
Tecnoseal 00159MG – 850 g
- Material: Magnesium
- Diameter: Ø160 mm / 6.30 in
- Height: 32 mm / 1.26 in
- Central Hole: Ø14 mm / 0.55 in
- Weight: 0.85 kg / 850 g
Tecnoseal 00156MG – 1800 g
- Material: Magnesium
- Diameter: Ø230 mm / 9.06 in
- Height: 25 mm / 0.98 in
- Central Hole: Ø14 mm / 0.55 in
- Weight: 1.80 kg / 1800 g
Tecnoseal 00157MG – 2200 g
- Material: Magnesium
- Diameter: Ø230 mm / 9.06 in
- Height: 30 mm / 1.18 in
- Central Hole: Ø14 mm / 0.55 in
- Weight: 2.20 kg / 2200 g
Dimensions for Model Selection
- Ø: Outside diameter
- h: Anode height
- Ø1: Central mounting hole diameter
For replacement selection, compare the outside diameter, height and anode weight with the existing installation.
-
