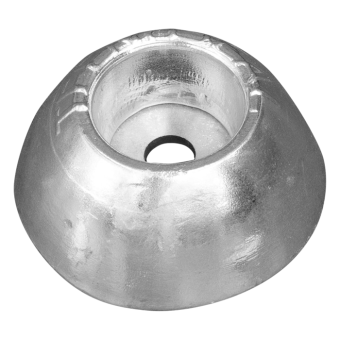

Tecnoseal Magnesium UK Type Disc Sacrificial Anodes with Steel Insert

Name: Tecnoseal Magnesium UK Type Disc Sacrificial Anodes with Steel Insert
SKU: Tecnoseal 00101UKMG

ID 1399108

$ 28.64

1-2 weeks delivery time

Size:

Ø70x33
98x82x32
Ø148x36

Item:

550 g
250 g
110 g

Tecnoseal magnesium UK Type disc sacrificial anodes with steel insert for rudders and trim tabs, supplied individually without mounting hardware. The range includes 00101UKMG with Ø70 × 33 mm dimensions and 110 g weight, 00102UKMG with 98 × 82 × 32 mm dimensions and 250 g weight, and 00105UKMG with Ø148 × 36 mm dimensions and 550 g weight. Depending on the model, Ø1 ranges from 30 to 42 mm and Ø2 from 11 to 14.5 mm.

Description
Ask a Question

Tecnoseal Magnesium UK Type Disc Sacrificial Anodes with Steel Insert – 00101UKMG, 00102UKMG & 00105UKMG

The Tecnoseal UK Type Magnesium Disc Anodes are sacrificial anodes with steel insert for marine rudders and trim tabs. The range includes three magnesium models with different body dimensions, insert dimensions and weights.

All models are supplied individually without mounting hardware. The 00101UKMG and 00105UKMG versions have circular bodies, while the 00102UKMG uses a 98 × 82 mm body configuration.

Key Features

Brand: Tecnoseal
Product Type: Disc sacrificial anode with insert
Type: UK Type
Material: Magnesium
Applications: Rudders and trim tabs
Configuration: Single anode
Supply: Without mounting hardware
Available Models: 00101UKMG, 00102UKMG and 00105UKMG
Weight Range: 0.11–0.55 kg

Available Models and Technical Specifications

Tecnoseal Code	Overall Dimensions	Height	Ø1	Ø2	Weight
00101UKMG	Ø70 mm	33 mm	30 mm	11 mm	0.11 kg / 110 g
00102UKMG	98 × 82 mm	32 mm	42 mm	14.5 mm	0.25 kg / 250 g
00105UKMG	Ø148 mm	36 mm	36 mm	14.5 mm	0.55 kg / 550 g

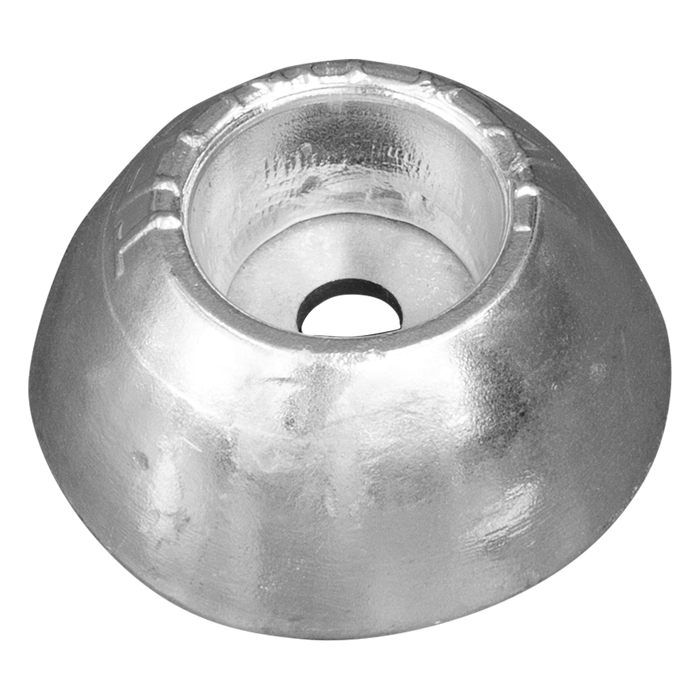

Tecnoseal 00101UKMG – Ø70 × 33 mm

Product Code: 00101UKMG
Material: Magnesium
Outside Diameter: 70 mm / 2.76 in
Height: 33 mm / 1.30 in
Ø1: 30 mm / 1.18 in
Ø2: 11 mm / 0.43 in
Weight: 0.11 kg / 0.24 lb

Tecnoseal 00102UKMG – 98 × 82 × 32 mm

Product Code: 00102UKMG
Material: Magnesium
Length (l): 98 mm / 3.86 in
Width (a): 82 mm / 3.23 in
Height: 32 mm / 1.26 in
Ø1: 42 mm / 1.65 in
Ø2: 14.5 mm / 0.57 in
Weight: 0.25 kg / 0.55 lb

Tecnoseal 00105UKMG – Ø148 × 36 mm

Product Code: 00105UKMG
Material: Magnesium
Outside Diameter: 148 mm / 5.83 in
Height: 36 mm / 1.42 in
Ø1: 36 mm / 1.42 in
Ø2: 14.5 mm / 0.57 in
Weight: 0.55 kg / 1.21 lb

Model Selection

Select the required version according to the overall body dimensions and the Ø1 / Ø2 insert dimensions. The 00102UKMG has a 98 × 82 mm body, while 00101UKMG and 00105UKMG are specified by outside diameter.
