ID
1399679
$ 133.56
1-2 weeks delivery time
Size:
- 310x75x40
- 455x94x40
Item:
- 1960 g
- 1160 g
Tecnoseal magnesium UK-Type bolt-on bar sacrificial anodes for Fairline hull and transom applications, available in two sizes. Tecnoseal 00271E/MG measures 310 x 75 x 40 mm, weighs 1.16 kg and features 205 mm hole centres, b 35 mm and c 13x25 mm mounting dimensions. Tecnoseal 00272EMG measures 455 x 94 x 40 mm, weighs 1.96 kg and features 230 mm hole centres, Ø 19x30 mm and Ø1 70 mm mounting dimensions. Select the required model according to overall dimensions, mounting configuration, hole-centre distance and weight.
- Description
- Ask a Question
-

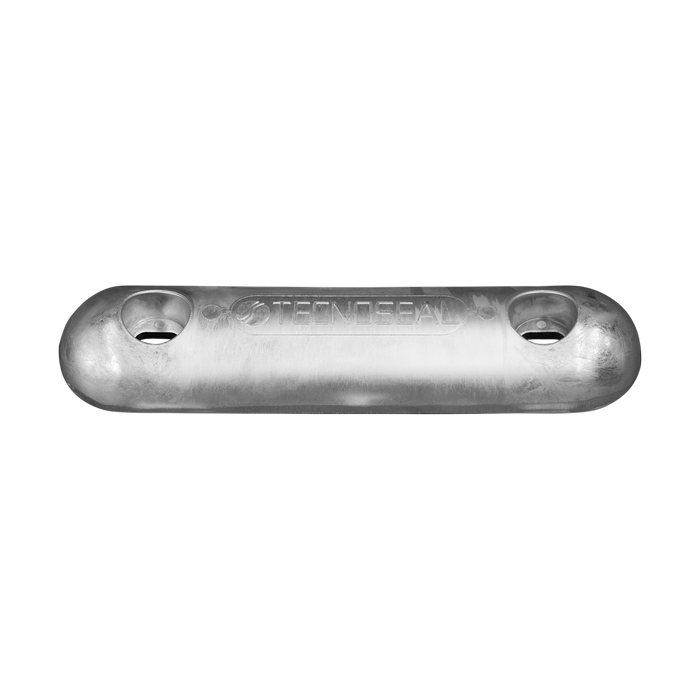

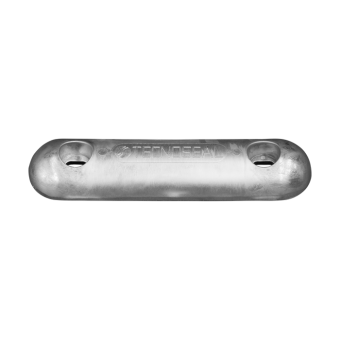

Tecnoseal Magnesium UK-Type Fairline Bolt-On Bar Sacrificial Anodes – 1.16–1.96 kg
The Tecnoseal Magnesium UK-Type Bar Anodes are bolt-on sacrificial anodes for Fairline hull and transom applications. The range includes two magnesium models with different overall dimensions, weights and mounting configurations.
Tecnoseal 00271E/MG measures 310 x 75 x 40 mm and features 205 mm hole centres, b 35 mm and c 13x25 mm mounting dimensions. Tecnoseal 00272EMG is the larger 455 x 94 x 40 mm version with 230 mm hole centres, Ø 19x30 mm and Ø1 70 mm mounting dimensions.
Key Features
- Brand: Tecnoseal
- Type: UK Type Bar
- Application: Fairline / Hull and Transom
- Product Type: Bolt-on sacrificial anode
- Material: Magnesium
- Available Models: 00271E/MG and 00272EMG
- Length Range: 310–455 mm
- Width Range: 75–94 mm
- Height: 40 mm
- Hole Centre Distance: 205–230 mm
- Weight Range: 1.16–1.96 kg
Available Models and Technical Specifications
Tecnoseal Code Weight Length (l) Width (a) b c / Ø Height (h) Hole Centres (i) Ø1 00271E/MG 1.16 kg / 1160 g 310 mm 75 mm 35 mm 13x25 mm 40 mm 205 mm — 00272EMG 1.96 kg / 1960 g 455 mm 94 mm — 19x30 mm 40 mm 230 mm 70 mm
Tecnoseal 00271E/MG – 310 × 75 × 40 mm
- Material: Magnesium
- Type: UK Type / Fairline
- Weight: 1.16 kg / 1160 g / 2.57 lb
- Length (l): 310 mm / 12.20 in
- Width (a): 75 mm / 2.95 in
- b: 35 mm / 1.38 in
- c: 13x25 mm / 0.51x0.98 in
- Height (h): 40 mm / 1.57 in
- Hole Centres (i): 205 mm / 8.07 in
Tecnoseal 00272EMG – 455 × 94 × 40 mm
- Material: Magnesium
- Type: UK Type / Fairline
- Weight: 1.96 kg / 1960 g / 4.32 lb
- Length (l): 455 mm / 17.91 in
- Width (a): 94 mm / 3.70 in
- Height (h): 40 mm / 1.57 in
- Hole Centres (i): 230 mm / 9.06 in
- Ø: 19x30 mm / 0.75x1.18 in
- Ø1: 70 mm / 2.76 in
Dimensions for Model Selection
- l: Overall length
- a: Overall width
- b: Mounting dimension for 00271E/MG
- c: Mounting-hole dimensions for 00271E/MG
- h: Anode height
- i: Hole-centre distance
- Ø: Mounting-hole dimensions for 00272EMG
- Ø1: Recess diameter for 00272EMG
For replacement selection, compare the overall dimensions, mounting dimensions, hole-centre distance and anode weight with the existing installation.
-
