ID
1406478
$ 193.03
1-2 weeks delivery time
-
+
The Tecnoseal 01045 is a zinc sacrificial propeller anode designed for compatible Leopard yacht propeller assemblies. It features a rounded, tapered external body with a stepped internal mounting recess, an outside diameter of 70 mm (2.76 in) and an overall height of 60 mm (2.36 in). The anode also has an Ø1 dimension of 8 mm (0.31 in) and weighs 1.10 kg (2.43 lbs). It is intended to provide galvanic corrosion protection for compatible underwater propeller components.
- Description
- Ask a Question
-

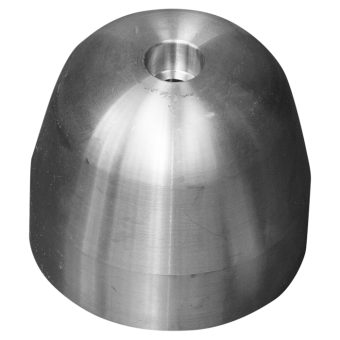

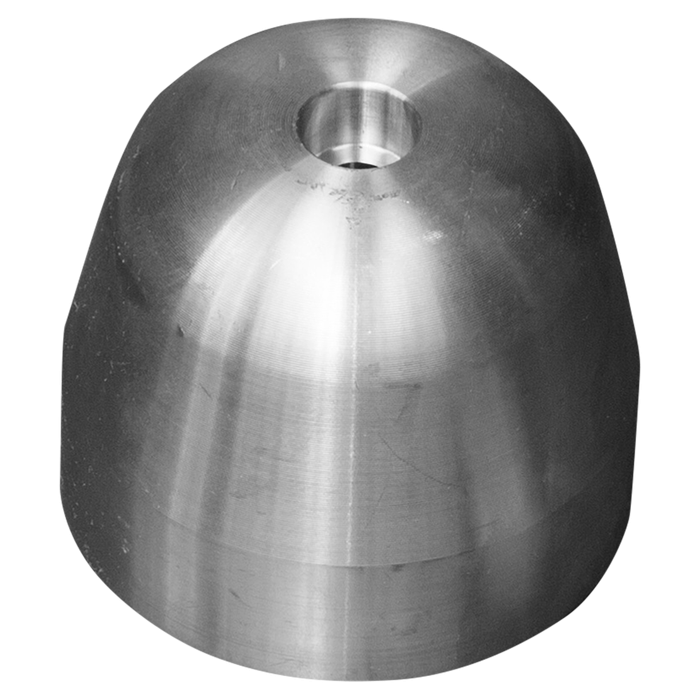

Tecnoseal 01045 Leopard Zinc Propeller Anode Ø70 mm
The Tecnoseal 01045 is a zinc sacrificial propeller anode designed for compatible Leopard yacht propeller assemblies. It provides galvanic corrosion protection for underwater metallic propeller components.
The anode features a rounded, tapered external body with a stepped internal mounting recess. Its outside diameter is 70 mm (2.76 in), and its overall height is 60 mm (2.36 in). The manufacturer's drawing also specifies an Ø1 dimension of 8 mm (0.31 in).
Technical Specifications
Parameter Specification Manufacturer Tecnoseal Product Code 01045 Application Leopard propeller assemblies Product Type Propeller sacrificial anode Material Zinc Design Rounded tapered body with internal recess Outside Diameter (Ø) 70 mm (2.76 in) Dimension Ø1 8 mm (0.31 in) Overall Height (h) 60 mm (2.36 in) Weight 1.10 kg (2.43 lbs) EAN 8059617813284
Mounting Configuration
The Tecnoseal 01045 incorporates a stepped internal mounting recess and a central opening identified as Ø1 = 8 mm in the manufacturer's technical drawing.
Before ordering, compare the external dimensions and internal mounting profile with the existing Leopard propeller anode. Compatibility should be confirmed using the original component's mounting geometry.
Inspection and Replacement
Inspect the zinc sacrificial anode periodically for material consumption and replace it when necessary. During installation, ensure suitable electrical contact with the metallic component requiring corrosion protection.
Supply
One Tecnoseal 01045 Leopard zinc propeller anode.
-
