Tecnoseal J-Prop Propeller Nut Anodes Ø60–89 mm

Name: Tecnoseal J-Prop Propeller Nut Anodes Ø60–89 mm
SKU: Tecnoseal 01030

ID 1406539

$ 40.57

1-2 weeks delivery time

Type:

Zinc
Magnesium

Size:

Item:

0.76 kg
0.36 kg
0.12 kg
1.10 kg

Tecnoseal 01030, 01030MG, 01031 and 01032 are sacrificial propeller nut anodes designed for compatible J-Prop feathering propeller assemblies. Featuring a rounded, dome-shaped body with a recessed central fastening opening, the range includes three outside diameters: 60 mm, 79 mm and 89 mm. The 60 mm version is available in zinc (01030, 0.36 kg) and magnesium (01030MG, 0.12 kg), both measuring 26 mm in height with a 35 mm internal diameter (Ø1). The larger zinc versions measure 79 × 33 mm (01031, 0.76 kg) and 89 × 37 mm (01032, 1.10 kg) in diameter and height respectively. Each anode incorporates the mounting dimensions specified for its corresponding J-Prop configuration and provides replaceable sacrificial corrosion protection for electrically connected underwater metallic propeller components.

Description
Ask a Question

Tecnoseal J-Prop Propeller Nut Anodes Ø60–89 mm – Zinc & Magnesium

The Tecnoseal 01030, 01030MG, 01031 and 01032 are sacrificial propeller nut anodes designed for compatible J-Prop feathering propeller assemblies. These replacement components are manufactured in zinc or magnesium and provide sacrificial galvanic corrosion protection for electrically connected underwater metallic parts of the propeller system.

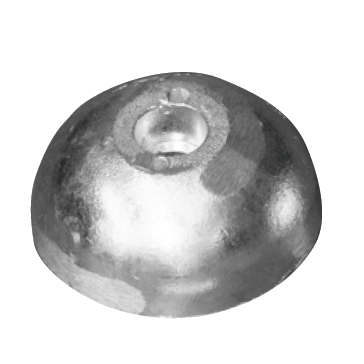

The anodes feature a rounded, dome-shaped external profile with a recessed central fastening opening. Their mounting design incorporates an internal cavity and additional fastening dimensions, as shown in the manufacturer's technical drawing. Three outside diameters are available: 60 mm, 79 mm and 89 mm, covering different J-Prop propeller configurations.

The smallest version, with a 60 mm outside diameter and 26 mm height, is available in both zinc and magnesium. The larger versions are manufactured from zinc and measure 79 mm in diameter with a height of 33 mm, and 89 mm in diameter with a height of 37 mm. The different internal and fastening dimensions must be considered when selecting the correct replacement.

Technical Specifications

Parameter	01030	01030MG	01031	01032
Manufacturer	Tecnoseal
Compatible Brand	J-Prop
Product Type	Sacrificial propeller nut anode
Material	Zinc	Magnesium	Zinc	Zinc
Outside Diameter (Ø)	60 mm	60 mm	79 mm	89 mm
Height (h)	26 mm	26 mm	33 mm	37 mm
Internal Diameter (Ø1)	35 mm	35 mm	40 mm	50 mm
Diameter Ø2	8 mm	8 mm	10 mm	10 mm
Diameter Ø3	5 mm	5 mm	5.5 mm	6 mm
Weight	0.36 kg	0.12 kg	0.76 kg	1.10 kg
Weight (lbs)	0.79	0.26	1.68	2.43
EAN	8033837064985	8052744982649	8033837064992	8033837065005

Available Variants

Tecnoseal 01030 – Zinc Ø60 mm: Zinc sacrificial propeller nut anode with a 60 mm outside diameter, 26 mm height and 35 mm internal diameter. Weight: 0.36 kg (0.79 lbs).
Tecnoseal 01030MG – Magnesium Ø60 mm: Magnesium version with identical mounting geometry to the 01030 zinc anode. Outside diameter: 60 mm. Height: 26 mm. Weight: 0.12 kg (0.26 lbs).
Tecnoseal 01031 – Zinc Ø79 mm: Zinc propeller nut anode measuring 79 mm in outside diameter and 33 mm in height, with a 40 mm internal diameter. Weight: 0.76 kg (1.68 lbs).
Tecnoseal 01032 – Zinc Ø89 mm: Zinc propeller nut anode measuring 89 mm in outside diameter and 37 mm in height, with a 50 mm internal diameter. Weight: 1.10 kg (2.43 lbs).

Design and Mounting Configuration

The Tecnoseal J-Prop propeller nut anodes feature a rounded dome-shaped exterior and a circular mounting base. The central recessed fastening arrangement is designed for attachment to the corresponding J-Prop propeller assembly.

The smaller 01030 and 01030MG versions share identical dimensions: 60 mm outside diameter, 26 mm overall height, 35 mm internal diameter (Ø1), 8 mm diameter (Ø2) and 5 mm diameter (Ø3).

The 01031 has a 79 mm outside diameter, 33 mm height and 40 mm internal diameter, with additional mounting diameters of 10 mm (Ø2) and 5.5 mm (Ø3). The largest 01032 version measures 89 mm in outside diameter, 37 mm in height and 50 mm internally, with Ø2 = 10 mm and Ø3 = 6 mm.

The variants have different dimensions and are not interchangeable solely on the basis of their external shape. Compare the existing anode and mounting arrangement with the technical specifications before ordering.

J-Prop Propeller Compatibility

These sacrificial anodes are intended for J-Prop feathering propeller installations. The manufacturer provides multiple sizes to accommodate different propeller assemblies.

Selection should be based on the original anode dimensions and the corresponding J-Prop mounting configuration. The manufacturer's chart does not specify individual J-Prop model numbers or propeller diameter ranges for these part numbers.

Corrosion Protection and Material Selection

The anodes function as replaceable sacrificial components, helping protect electrically connected underwater metallic propeller parts against galvanic corrosion. The sacrificial material corrodes preferentially during service.

Zinc: Commonly selected for corrosion protection in saltwater environments. Available in all three sizes.
Magnesium: Generally used for freshwater corrosion protection applications. Available for the 60 mm version (01030MG).

Choose the material according to the vessel's operating water conditions and the propeller manufacturer's recommendations.

Inspection and Replacement

Inspect the propeller nut anode during routine underwater equipment maintenance. Replace it when significantly depleted, damaged or no longer securely mounted.

During installation, verify the fastening arrangement and ensure suitable electrical contact between the anode and the metallic component requiring protection.

Scope of Supply

1 × Tecnoseal J-Prop Propeller Nut Anode in the selected diameter and material.
