ID
1406397
$ 358.51
1-2 weeks delivery time
Size:
- 490x48x20
- 190x50x25
- 205x65x34
- 200x100x20
- 130x80x30
Item:
- 2000 g
- 3200 g
- 2700 g
- 1520 g
- 2900 g
Tecnoseal 00240–00263 zinc sacrificial anode plates are solid rectangular plates without pre-drilled mounting holes, listed in the manufacturer's Plain Plates range. Available in five versions from the Piastra Caldaia, PF2, PF3 and PF4 series, these anodes measure from 130 × 80 × 30 mm to 490 × 48 × 20 mm, with weights between 1.52 and 3.20 kg. Each plate is intended for marine corrosion protection applications requiring a plain zinc anode without a predefined mounting hole arrangement.
- Description
- Ask a Question
-

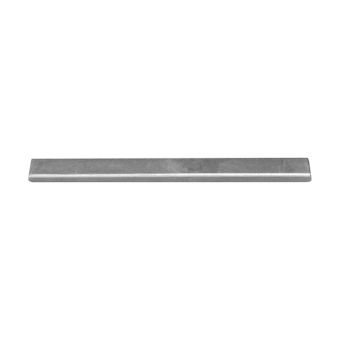

Tecnoseal 00240–00263 Zinc Rectangular Anode Plates Without Holes – PF Series
The Tecnoseal 00240–00263 range consists of rectangular zinc sacrificial anode plates without pre-drilled mounting holes. These products belong to the manufacturer's Plain Plates category and include the Piastra Caldaia, PF2, PF3 and PF4 series.
All five models have a solid rectangular construction, with different overall dimensions and weights. They are intended for marine corrosion protection systems requiring plain zinc anode plates.
Key Features
- Manufacturer: Tecnoseal
- Product Type: Plain rectangular sacrificial anode plate
- Material: Zinc
- Shape: Rectangular
- Mounting Holes: None
- Available Series: Piastra Caldaia, PF2, PF3, PF4
- Application: Marine corrosion protection
- Available Models: 00240, 00260, 00261, 00262, 00263
Available Models and Technical Specifications
Product Code Series Dimensions (L × W × H) Weight 00240 Piastra Caldaia 490 × 48 × 20 mm 3.20 kg / 7.05 lbs 00260 PF2 190 × 50 × 25 mm 1.52 kg / 3.35 lbs 00261 PF3 205 × 65 × 34 mm 2.90 kg / 6.39 lbs 00262 PF4 200 × 100 × 20 mm 2.70 kg / 5.95 lbs 00263 PF4 130 × 80 × 30 mm 2.00 kg / 4.41 lbs
Plain Plate Design
These Tecnoseal anodes are supplied as solid rectangular zinc plates without factory-drilled mounting holes. Their length, width and thickness vary according to the selected model.
The absence of mounting holes means that the installation arrangement must be determined separately according to the requirements of the corrosion protection system.
Marine Application
Zinc sacrificial anodes are used to help protect electrically connected metallic components against galvanic corrosion in compatible marine installations.
Before installation, confirm the required dimensions, attachment method and electrical connection to the metal being protected.
Selection and Replacement
Select the appropriate model according to the required dimensions and weight. For replacement applications, compare the plate with the existing anode and verify the mounting arrangement.
Inspect sacrificial anodes periodically and replace them when sufficiently consumed.
Supply
One Tecnoseal plain rectangular zinc sacrificial anode plate without holes in the selected size.
-
