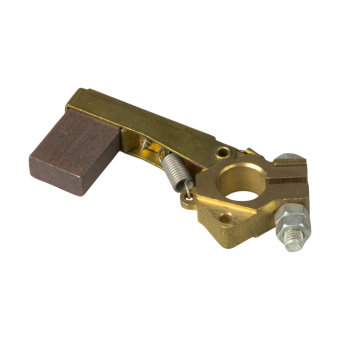

Tecnoseal Propeller Shaft Grounding System with Graphite Brush and Silver-Plated Ring

Name: Tecnoseal Propeller Shaft Grounding System with Graphite Brush and Silver-Plated Ring
SKU: Tecnoseal 07040

ID 1406403

$ 596.55

1-2 weeks delivery time

Shaft Diameter:

Item:

460 g
430 g
350 g
410 g
380 g

The Tecnoseal 07040–07070 propeller shaft grounding system is supplied as a kit containing one brush holder with a graphite brush and one silver-plated shaft contact ring. Seven versions are available for shaft diameters from 40 to 70 mm. The 40 and 45 mm models have a ring dimension of 1.5 mm (a) and 60 mm (h), while the 50–70 mm models use 3 mm (a) and 50 mm (h). Kit weights range from 0.35 to 0.46 kg. The system provides electrical contact between the rotating propeller shaft and the grounding connection through the graphite brush and contact ring.

Description
Ask a Question

Tecnoseal 07040–07070 Propeller Shaft Grounding System with Graphite Brush and Silver-Plated Ring

The Tecnoseal 07040–07070 Propeller Shaft Grounding System is a marine shaft grounding kit designed to provide an electrical contact path from the rotating propeller shaft through a graphite brush and a silver-plated contact ring.

Each kit includes one brush holder with a graphite brush and one silver-plated ring. Seven versions are available for propeller shaft diameters from 40 to 70 mm.

Key Features

Manufacturer: Tecnoseal
Product Type: Propeller shaft grounding system
Application: Marine propeller shaft electrical grounding
Available Shaft Diameters: 40, 45, 50, 55, 60, 65 and 70 mm
Brush Type: Graphite
Contact Ring: Silver-plated
Kit Contents: One brush holder with graphite brush and one silver-plated ring
Weight Range: 0.35–0.46 kg

Available Models and Technical Specifications

Product Code	Shaft Ø	Dimension a	Dimension h	Weight
07040	40 mm	1.5 mm	60 mm	0.35 kg
07045	45 mm	1.5 mm	60 mm	0.35 kg
07050	50 mm	3 mm	50 mm	0.38 kg
07055	55 mm	3 mm	50 mm	0.41 kg
07060	60 mm	3 mm	50 mm	0.43 kg
07065	65 mm	3 mm	50 mm	0.35 kg
07070	70 mm	3 mm	50 mm	0.46 kg

Kit Contents

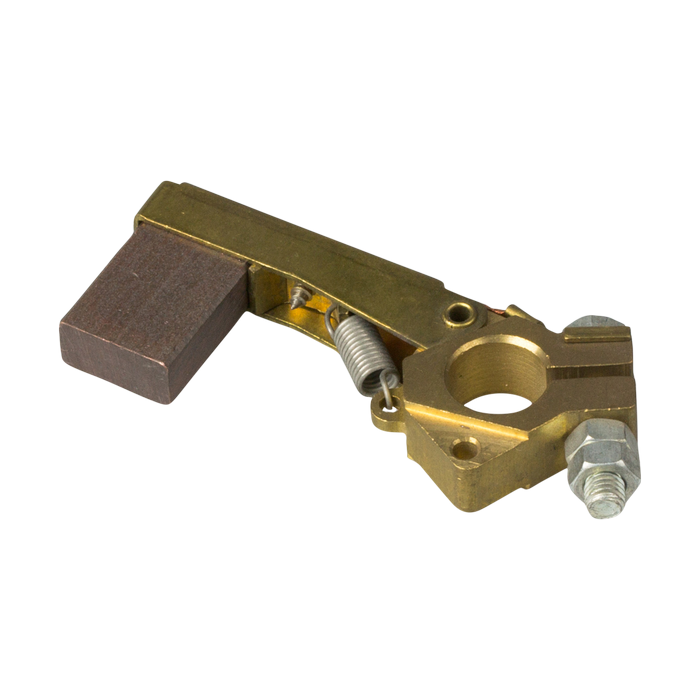

1 × Brush holder with graphite brush
1 × Silver-plated shaft contact ring

How the Shaft Grounding System Works

The silver-plated ring provides a contact surface on the rotating propeller shaft. The graphite brush maintains sliding electrical contact with the ring, forming a conductive path to the grounding connection.

The system is intended for use as part of a marine shaft grounding arrangement. Installation and electrical connections must be compatible with the vessel's existing system.

Choosing the Correct Size

Select the kit according to the propeller shaft diameter. The available versions cover shaft sizes from 40 to 70 mm.

Check the shaft diameter, ring dimensions and available installation space before ordering.

Installation and Maintenance

Install the contact ring and brush holder according to the vessel's shaft grounding arrangement. Ensure that the graphite brush makes suitable contact with the silver-plated ring and that the grounding connection is correctly established.

Inspect the brush and contact surface periodically for wear, contamination and loss of contact.

Supply

One Tecnoseal propeller shaft grounding kit in the selected diameter, containing a brush holder with graphite brush and a silver-plated contact ring.
