The Tecnoseal 19023 is a zinc sacrificial propeller anode for Franchini 55 yachts, designed to protect compatible underwater propeller components against galvanic corrosion. It features a cylindrical body with a recessed internal mounting profile, an outside diameter of 87 mm (3.43 in), a height of 45 mm (1.77 in) and a mounting hole spacing of 64 mm (2.52 in). Additional dimensions include Ø1 = 64 mm, Ø2 = 40 mm and Ø3 = 6 mm. The anode weighs 1.00 kg (2.20 lbs).
- Description
- Ask a Question
-

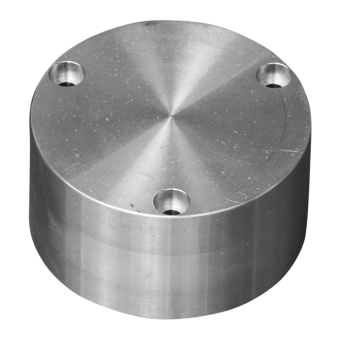

Tecnoseal 19023 Franchini 55 Zinc Propeller Anode Ø87 mm
The Tecnoseal 19023 is a zinc sacrificial propeller anode designed for Franchini 55 yacht propeller assemblies. It provides galvanic corrosion protection for compatible underwater metallic propeller components.

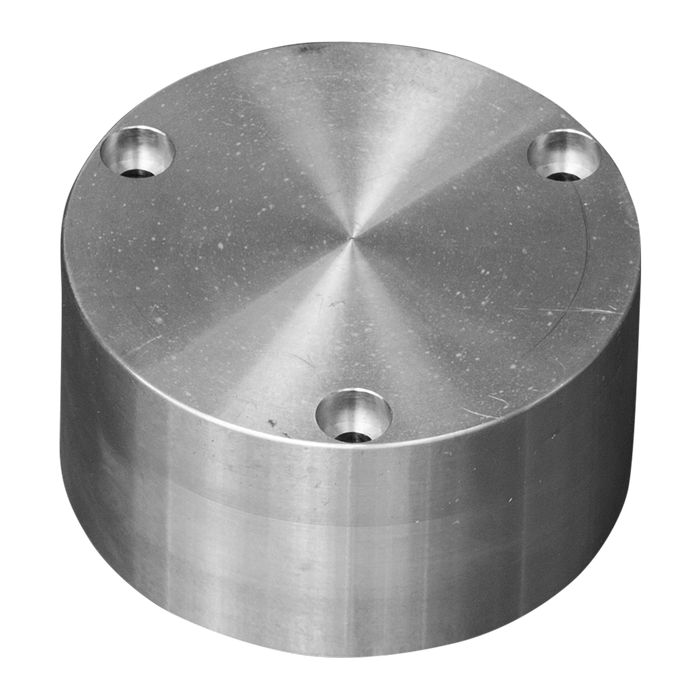

The anode has a cylindrical external body with a recessed internal mounting profile and three mounting holes. Its outside diameter is 87 mm (3.43 in), and its overall height is 45 mm (1.77 in). The mounting hole spacing is 64 mm, with internal diameters Ø1 = 64 mm and Ø2 = 40 mm.
Technical Specifications
Parameter Specification Manufacturer Tecnoseal Product Code 19023 Application Franchini 55 propeller assemblies Product Type Propeller sacrificial anode Material Zinc Outside Diameter (Ø) 87 mm (3.43 in) Diameter Ø1 64 mm (2.52 in) Diameter Ø2 40 mm (1.57 in) Mounting Hole Diameter (Ø3) 6 mm (0.24 in) Overall Height (h) 45 mm (1.77 in) Mounting Hole Spacing (i) 64 mm (2.52 in) Weight 1.00 kg (2.20 lbs) EAN 8059617812065
Mounting Configuration
The Tecnoseal 19023 features a stepped internal recess and three mounting holes arranged around the circular body. The manufacturer's drawing specifies mounting hole spacing (i) of 64 mm, mounting hole diameter Ø3 of 6 mm and internal diameters Ø1 = 64 mm and Ø2 = 40 mm.
Before ordering, compare the outside diameter, height, mounting hole arrangement and internal recess dimensions with the existing Franchini 55 propeller anode to confirm compatibility.
Inspection and Replacement
Inspect the zinc sacrificial anode periodically for material consumption and replace it when necessary. During installation, ensure suitable electrical contact with the metallic component requiring corrosion protection.
Supply
One Tecnoseal 19023 Franchini 55 zinc propeller anode.
-
