ID
1406476
$ 2,118.76
1-2 weeks delivery time
-
+
The Tecnoseal 00439-5 is a zinc sacrificial propeller anode designed for compatible Ferretti yacht propeller assemblies. It features a cylindrical body with a stepped internal mounting recess, an outside diameter of 200 mm (7.87 in) and an overall height of 130 mm (5.12 in). Additional mounting dimensions include a = 90 mm, Ø1 = 165 mm, Ø2 = 140 mm and Ø3 = 17 mm. Weighing 19.00 kg (41.89 lbs), this anode provides galvanic corrosion protection for compatible underwater propeller components.
- Description
- Ask a Question
-

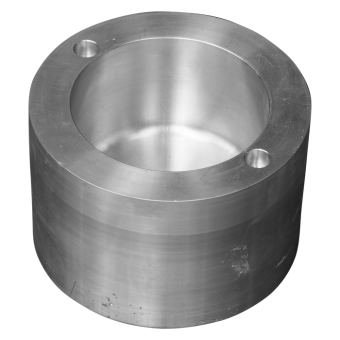

Tecnoseal 00439-5 Ferretti Zinc Propeller Anode Ø200 mm
The Tecnoseal 00439-5 is a zinc sacrificial propeller anode designed for compatible Ferretti yacht propeller assemblies. It provides galvanic corrosion protection for underwater metallic propeller components.

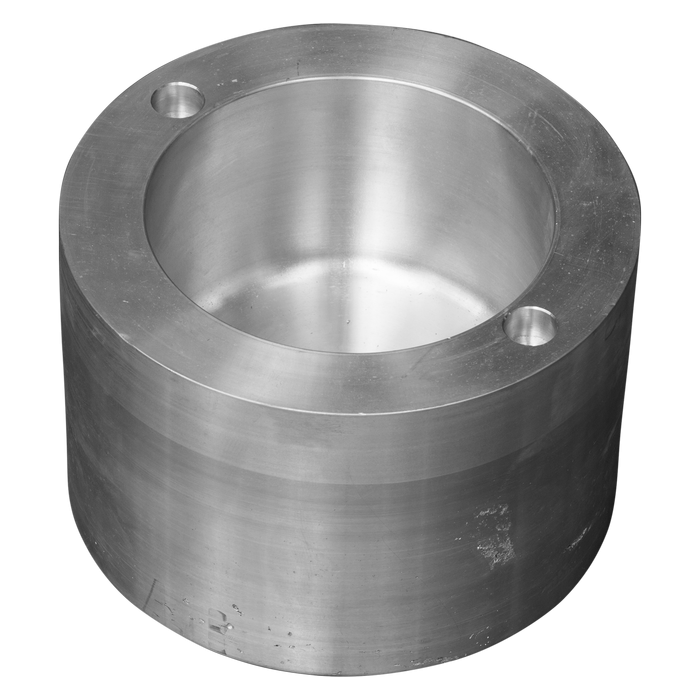

The anode features a cylindrical external body with a stepped internal mounting recess. Its outside diameter is 200 mm (7.87 in), and its overall height is 130 mm (5.12 in). The internal mounting geometry includes diameters Ø1 = 165 mm, Ø2 = 140 mm and Ø3 = 17 mm.
Technical Specifications
Parameter Specification Manufacturer Tecnoseal Product Code 00439-5 Application Ferretti propeller assemblies Product Type Propeller sacrificial anode Material Zinc Design Cylindrical body with stepped internal recess Outside Diameter (Ø) 200 mm (7.87 in) Diameter Ø1 165 mm (6.50 in) Diameter Ø2 140 mm (5.51 in) Diameter Ø3 17 mm (0.67 in) Overall Height (h) 130 mm (5.12 in) Dimension a 90 mm (3.54 in) Weight 19.00 kg (41.89 lbs) EAN 8059617811891
Mounting Configuration
The Tecnoseal 00439-5 incorporates a stepped internal mounting recess with diameters Ø1 = 165 mm, Ø2 = 140 mm and Ø3 = 17 mm. The manufacturer's drawing also identifies dimension a = 90 mm.
Before ordering, compare the outside diameter, overall height and internal mounting dimensions with the existing Ferretti propeller anode. The complete mounting geometry should be checked to confirm compatibility.
Inspection and Replacement
Inspect the zinc sacrificial anode periodically for material consumption and replace it when necessary. During installation, ensure suitable electrical contact with the metallic component requiring corrosion protection.
Supply
One Tecnoseal 00439-5 Ferretti zinc propeller anode.
-
