The Kong Carbon Steel Chain Connectors are heavy-duty connectors designed for joining DIN 766 anchor chains in marine anchoring systems. Manufactured from high-strength carbon steel, they provide reliable performance under demanding conditions without the use of a swivel. Available for 6–8 mm and 12–14 mm chains, these connectors offer high vertical and horizontal breaking loads together with clearly defined safe working loads for secure marine applications.
- Description
- Ask a Question
-

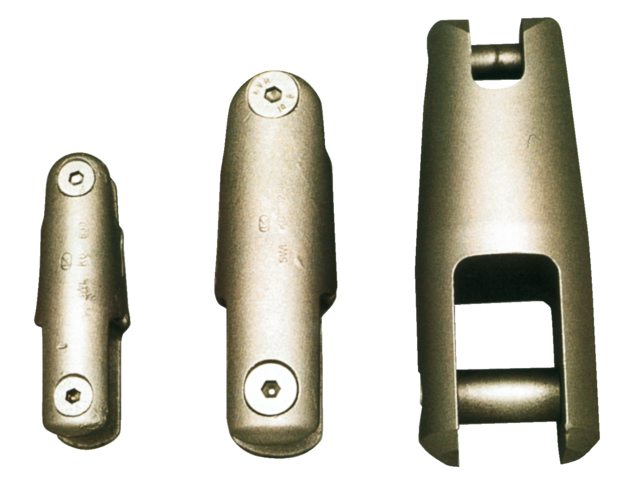

Kong Carbon Steel Chain Connectors for DIN 766 Chains
The Kong Chain Connectors are engineered for secure joining of DIN 766 anchor chains in demanding marine applications. Manufactured from high-strength carbon steel, they provide a durable and dependable connection while maintaining excellent mechanical strength under heavy loads.
The non-swivel design offers a simple and robust solution for permanent chain connections used in anchoring, mooring and commercial marine equipment. Two sizes are available to accommodate a wide range of DIN 766 chain diameters.
Key Features
- High-strength carbon steel construction
- Designed for DIN 766 anchor chains
- Heavy-duty non-swivel connector
- High vertical and horizontal breaking loads
- Specified safe working load (SWL)
- Suitable for marine anchoring and mooring systems
- Available for chain sizes from 6 mm to 14 mm
Available Variants
Kong Part No. Suitable Chain A B C D E F Vertical Breaking Load Horizontal Breaking Load SWL 77.319.106 DIN 766 Ø 6–7–8 mm 80 mm 28 mm 16 mm 10 mm 19 mm 9 mm 2500 daN 850 daN 850 daN 77.319.112 DIN 766 Ø 12–13–14 mm 144 mm 54 mm 31 mm 16 mm 26 mm 16 mm 9500 daN 3000 daN 3000 daN
Technical Specifications
Brand Kong Product Type Chain Connector Material Carbon Steel Chain Standard DIN 766 Swivel No Applications Anchor chains, mooring systems, commercial and recreational marine use
Applications
- Anchor chain connections
- Marine anchoring systems
- Mooring installations
- Commercial vessels
- Workboats and yachts
- Heavy-duty marine equipment
-
