This double-eye swivel is manufactured from AISI 316 stainless steel and is designed for mooring lines, anchor systems and marine rigging applications. The swivel allows connected components to rotate freely, helping to reduce twisting forces in ropes and chains. Available in seven sizes, the range provides breaking loads from 450 kg to 6500 kg and overall lengths from 50 mm to 188 mm.
- Description
- Ask a Question
-

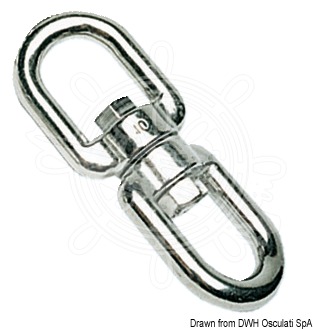

Osculati AISI 316 Stainless Steel Swivel – Double Eye, 450-6500 kg
This swivel is manufactured from marine-grade AISI 316 stainless steel and designed for use in mooring, anchoring and general marine rigging applications. The double-eye construction allows connected components to rotate freely, helping to reduce twisting and torsional loads.
The corrosion-resistant AISI 316 stainless steel construction provides long-term durability in marine environments. Multiple sizes are available to accommodate different load requirements and installation configurations.
- AISI 316 stainless steel construction;
- Double-eye swivel design;
- Suitable for mooring lines and marine rigging;
- Reduces twisting in connected assemblies;
- Excellent corrosion resistance;
- Breaking loads from 450 kg to 6500 kg.
Code Breaking Load (kg) A (mm) B (mm) b1 (mm) L (mm) L1 (mm) 01.018.04 450 4 19.5 11.5 50 13 01.018.05 650 5 23 13 60 13 01.018.06 1200 6 26 15 65 15 01.018.08 1900 8 35 20 90 22 01.018.10 3500 10 44 24 115 27 01.018.13 5000 13 59 33 148 33 01.018.16 6500 16 75 39 188 42 -
