ID
1384193
$ 92.59
1-2 weeks delivery time
Diameter, mm:
- 6-8
- 10-12
The Douglas Marine Rotable Anchor Connector is manufactured from polished AISI 316 stainless steel and is designed to provide a secure, rotating connection between anchor and chain. Its rotating configuration improves alignment when passing through the bow roller while offering up to three times higher strength than conventional designs. Each connector is assembled with safety screws and an anti-unscrewing locking pin system. Available for 6–8 mm and 10–12 mm anchor chains with breaking loads up to 12,000 kg.
- Description
- Ask a Question
-

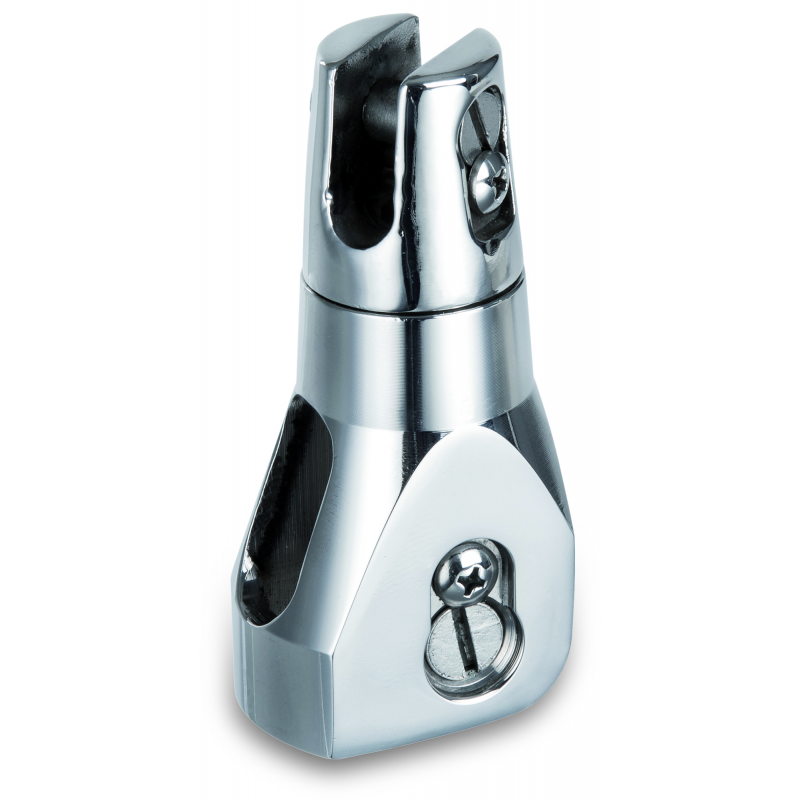

Douglas Marine Rotable Stainless Steel AISI 316 Anchor Connectors Ø 6-12 mm
The Douglas Marine Rotable Anchor Connector is designed to create a strong and reliable connection between the anchor and chain while ensuring smooth alignment through the bow roller. Manufactured from polished AISI 316 stainless steel, the rotating construction significantly reduces twisting and improves handling during anchoring operations. Compared with conventional connector designs, its configuration provides substantially increased mechanical strength. Every connector is assembled with safety screws and an anti-unscrewing locking pin system for secure installation.
Key Features
- Manufactured from polished AISI 316 stainless steel
- Rotating design for improved alignment through the bow roller
- Up to three times stronger than conventional connector designs
- Safety screw and anti-unscrewing locking pin assembly
- Designed for secure anchor-to-chain connection
- Available for 6–8 mm and 10–12 mm anchor chains
Technical Specifications
Model Douglas Marine 010-P8 Douglas Marine 010-P10 Product Code 0202477 0202478 Chain Ø 6–8 mm 10–12 mm Recommended Anchor Weight 7–17 kg 30–50 kg Breaking Load 8,500 kg 12,000 kg Maximum Width 38 mm 38 mm Overall Length 92 mm 122 mm Upper Opening 9 mm 15 mm Lower Thickness 15 mm 27 mm Side Height 30 mm 37 mm Material AISI 316 Stainless Steel AISI 316 Stainless Steel Barcode 8056138270138 8056138270107
Included Variants
Douglas Marine Model Product Code Chain Size Anchor Weight 010-P8 0202477 6–8 mm 7–17 kg 010-P10 0202478 10–12 mm 30–50 kg
Brand: Douglas Marine
-
