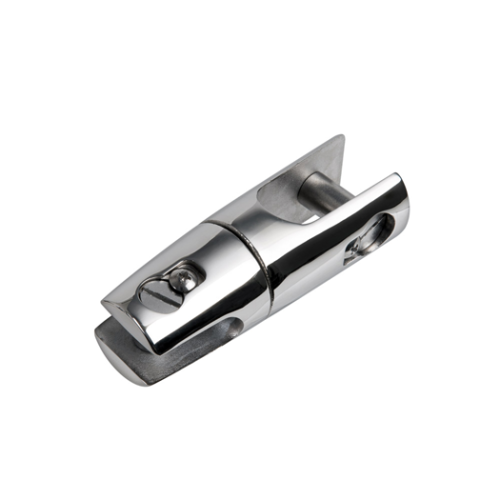

Douglas Marine Anchor Connector Ø6-8 Chain

ID 1384809

$ 35.76

1-2 weeks delivery time

Diameter, mm:

6-8
10-12
14-16

The Douglas Marine Anchor Connector is manufactured from marine-grade AISI 316 stainless steel to provide a strong and corrosion-resistant connection between the anchor and chain. Available for chain sizes from 6–8 mm to 14–16 mm, the range supports anchors from 15 kg up to 80 kg and offers breaking loads from 3,000 kg to 15,000 kg. The connectors are designed for reliable anchoring performance and smooth operation in demanding marine environments.

Description
Ask a Question

Douglas Marine Stainless Steel AISI 316 Anchor Connectors Ø 6-16 mm

The Douglas Marine Anchor Connector range is designed to provide a secure connection between anchor and chain while maintaining excellent corrosion resistance in marine environments. Manufactured from high-quality AISI 316 stainless steel, these connectors are available for chain diameters from 6 mm up to 16 mm, covering a wide range of anchoring applications from small recreational boats to larger vessels.

Key Features

Manufactured from marine-grade AISI 316 stainless steel
Designed for secure anchor-to-chain connection
Excellent corrosion resistance for seawater use
Available for chain sizes from 6 mm to 16 mm
Suitable for anchor weights from 15 kg to 80 kg
Breaking loads up to 15,000 kg

Technical Specifications

Model	Ø6-8	Ø10-12	Ø14-16
Article Number	9081210	9081211	9081215
Chain Diameter	Ø6-8 mm	Ø10-12 mm	Ø14-16 mm
Recommended Anchor Weight	15 kg	20 kg	50-80 kg
Breaking Load	3,000 kg	8,000 kg	15,000 kg
Weight	0.245 kg	0.480 kg	2.8 kg

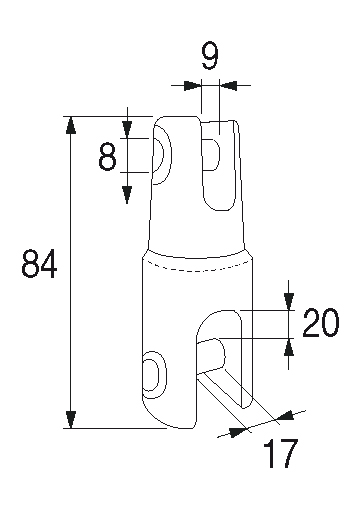

Dimensions	84 × 17 × 9 × 8 × 20 mm	110 × 23 × 14 × 11 × 23 mm	176 × 35 × 20 × 14 × 35 mm
Material	AISI 316 Stainless Steel	AISI 316 Stainless Steel	AISI 316 Stainless Steel

Available Variants

Article Number	Chain Diameter	Recommended Anchor Weight	Breaking Load
9081210	Ø6-8 mm	15 kg	3,000 kg
9081211	Ø10-12 mm	20 kg	8,000 kg
9081215	Ø14-16 mm	50-80 kg	15,000 kg

Brand: Douglas Marine
