ID
1378993
$ 13.58
1-2 weeks delivery time
Diameter, mm:
- 10
- 13
- 16
- 19
This galvanized steel swivel is designed for anchor chains, mooring systems and buoy applications. Featuring a double-eye configuration, it allows free rotation under load to help reduce twisting in mooring lines and chain assemblies. Available in four sizes, the range provides breaking loads from 5000 kg to 16300 kg with overall lengths from 125 mm to 225 mm.
- Description
- Ask a Question
-

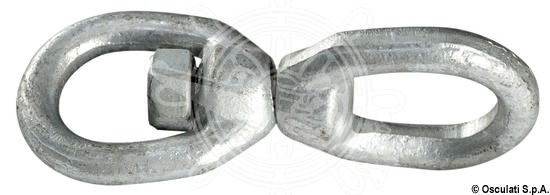

Osculati Galvanized Steel Swivel for Anchor Chains and Buoys – Double Eye, 5000-16300 kg
This swivel is manufactured from galvanized steel and designed for use with anchor chains, buoys and mooring systems. The double-eye configuration allows connected components to rotate freely, helping to reduce twisting loads in ropes, chains and mooring assemblies.
The robust galvanized steel construction provides corrosion resistance suitable for marine environments, while the heavy-duty design offers breaking loads up to 16300 kg.
- Galvanized steel construction;
- Double-eye swivel design;
- Suitable for anchor chains and buoys;
- Ideal for mooring line applications;
- Reduces twisting in connected assemblies;
- Breaking loads from 5000 kg to 16300 kg.
Code Breaking Load (kg) A (mm) B (mm) b1 (mm) L (mm) L1 (mm) 01.427.10 5000 10 51 30.8 125 23.5 01.427.12 8000 13 63 36 165 33 01.427.14 11700 16 75.5 42.6 200 40.8 01.427.16 16300 19 88.5 50 225 42.8 -
