ID
1378745
$ 52.97
1-2 weeks delivery time
Diameter, mm:
- 6-7-8
- 8-10-12
- 12-13-14

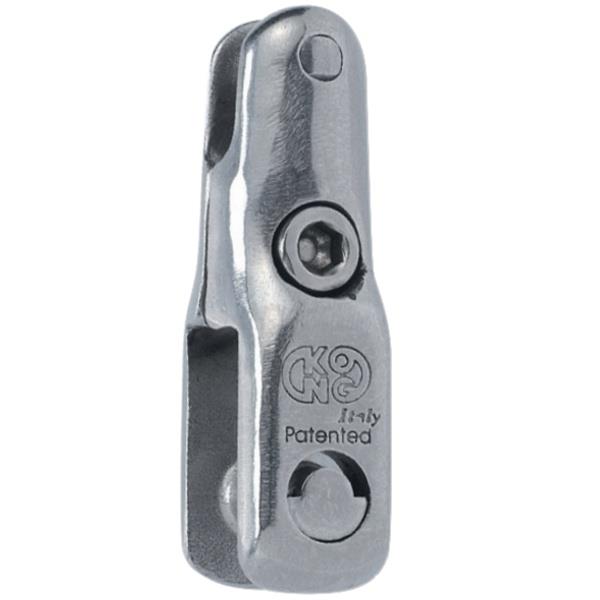

The Kong AISI 316 Fixed Anchor Connector is designed to securely connect an anchor to its chain while maintaining smooth passage through the bow roller. Manufactured from high-quality AISI 316 stainless steel, the connector features a fixed non-swiveling design and a two-piece construction secured with a hex-socket screw. Available for chain sizes from 6–8 mm to 12–14 mm, it automatically aligns the anchor during retrieval and deployment while providing maximum working loads from 25 kN to 95 kN.
- Description
- Ask a Question
-
Kong AISI 316 Fixed Anchor Connector for 6–14 mm Chain – Stainless Steel Anchor Chain Connector
The Kong Fixed Anchor Connector is designed to provide a strong and reliable connection between an anchor and chain. Manufactured from premium AISI 316 stainless steel, it is suitable for demanding marine environments and offers excellent corrosion resistance.
The fixed design allows the anchor to pass smoothly through the bow roller while automatically aligning itself during operation. Unlike swivel connectors, this model features a non-rotating construction, making it suitable for installations where a fixed connection is preferred.
Key Features
- High-quality AISI 316 stainless steel construction
- Fixed non-rotating anchor connector
- Designed to connect anchor and chain
- Smooth passage through the bow roller
- Automatically aligns the anchor during retrieval
- Two-piece construction secured with a hex-socket screw
- Excellent resistance to marine corrosion
Available Variants
Kong SKU VDM-Reya SKU Connector Diameter Compatible Chain Size Maximum Working Load 643080000KK 007875 8 mm 6–8 mm 25 kN 643100000KK 007878 10 mm 8–12 mm 50 kN 643120000KK 007879 12 mm 12–14 mm 95 kN
Technical Specifications
Connector Diameter Compatible Chain Size Maximum Working Load 8 mm 6–8 mm 25 kN 10 mm 8–12 mm 50 kN 12 mm 12–14 mm 95 kN
Package Variants
- 643080000KK / 007875 – for 6–8 mm chain
- 643100000KK / 007878 – for 8–12 mm chain
- 643120000KK / 007879 – for 12–14 mm chain
Applications
- Anchor-to-chain connections
- Bow roller anchor systems
- Marine anchoring installations
- Sailing yachts
- Motor yachts
-
