The Kong AISI 316 Swivel Anchor Connector is designed to connect an anchor and chain while preventing chain twisting during anchoring operations. Manufactured from high-quality AISI 316 stainless steel, it features a 360° central swivel and a four-part construction secured by a hex-socket screw. Available for chain sizes from 6–8 mm to 16–20 mm, the connector automatically aligns itself during operation and helps maintain correct anchor positioning on the seabed. Maximum working loads range from 25 kN to 200 kN depending on the selected size.
- Description
- Ask a Question
-

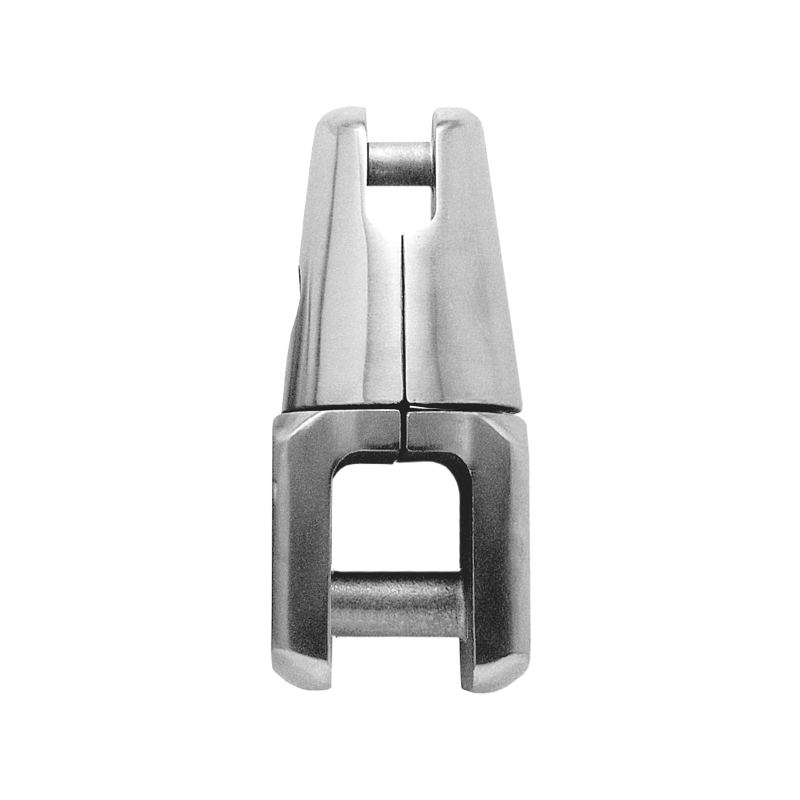

Kong AISI 316 Swivel Anchor Connector for 6–20 mm Chain – Stainless Steel Anchor Swivel
The Kong Swivel Anchor Connector is a premium stainless steel connector designed to join an anchor to its chain while allowing free rotation under load. Manufactured from high-quality AISI 316 stainless steel, it helps eliminate chain twisting and improves anchor alignment during deployment and retrieval.
The central swivel provides 360° rotation, allowing the anchor and chain to move freely without transmitting twist through the anchoring system. The connector features a four-part construction secured with a hex-socket screw for reliable operation in marine environments.
Key Features
- High-quality AISI 316 stainless steel construction
- Designed to connect anchor and chain
- 360° rotating swivel center
- Helps prevent chain twisting
- Automatically aligns during operation
- Four-part construction secured with hex-socket screw
- Suitable for a wide range of anchor chain sizes
Available Variants
Kong SKU VDM-Reya SKU Chain Size Maximum Working Load 644080000KK 007871 6–8 mm 25 kN 644100000KK 007872 8–12 mm 50 kN 644120000KK 007873 12–14 mm 95 kN 644160000KK 007874 16–20 mm 200 kN
Technical Specifications
Chain Ø A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) Working Load Vertical (kg) Breaking Load Vertical (kg) Breaking Load Lateral (kg) 6–8 mm 93 28 16 10 19 9 850 2500 850 8–12 mm 117 37 22 13 23 13 2000 5000 2000 12–14 mm 155 66 35 18 30 17 3000 9500 3000
Package Variants
- 644080000KK / 007871 – for 6–8 mm chain
- 644100000KK / 007872 – for 8–12 mm chain
- 644120000KK / 007873 – for 12–14 mm chain
- 644160000KK / 007874 – for 16–20 mm chain
Applications
- Anchor-to-chain connection systems
- Preventing chain twist during anchoring
- Marine anchoring systems
- Sailing and motor yachts
