The Maxwell RC12-10 Hydraulic 190TDC CW Vertical Anchor Windlass (Vetus P104938) is a top-range automatic rope/chain windlass designed for large vessels requiring increased deck clearance and hydraulic drive. This RC12 Series model is suitable for 10 mm (3/8") short-link chain and 16–20 mm (5/8"–3/4") nylon rope. Featuring a 190 TDC configuration and a chainwheel-only design, it delivers high pulling performance and secure anchoring for bluewater cruising and professional marine applications.
- Description
- Ask a Question
-

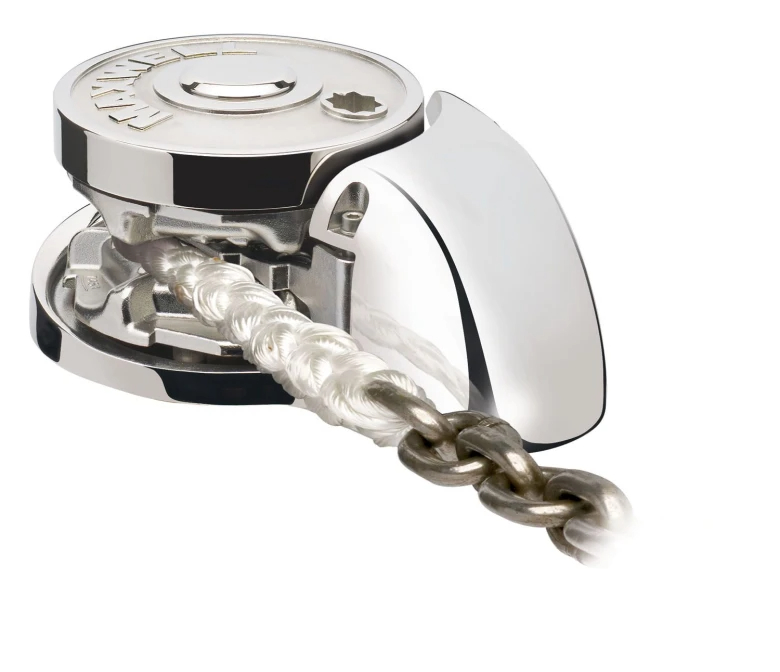

Maxwell RC12-10 Hydraulic 190TDC CW Vertical Anchor Windlass (Vetus P104938)
The Maxwell RC12-10 Hydraulic is a fully automatic vertical rope/chain anchor windlass and represents the top-range model within the Maxwell RC Series. This version features an increased Total Deck Clearance of 190 TDC, allowing installation on vessels with thick deck structures or special mounting requirements.
Manufactured from marine-grade stainless steel (AISI 316), the RC12-10 offers excellent corrosion resistance and long-term durability. The patented Wave Design™ chainwheel ensures smooth anchor deployment and retrieval, secure handling of both chain and rope, and reliable passage of the rope-to-chain splice during anchoring operations.
This hydraulic version is configured without an integrated drum and is intended for vessels equipped with onboard hydraulic systems. A ratcheted mechanism prevents backwinding during emergency manual retrieval, ensuring safe and controlled operation under high anchoring loads.
Specification Value Vetus Part Number P104938 Model RC12-10 Hydraulic Series Maxwell RC Series Drive Type Hydraulic Installation Type Vertical Operation Automatic rope / chain Drum No Total Deck Clearance 190 TDC Maximum Pull / Lift 1134 kg Net Weight 23 kg Rotation CW (clockwise)
Rope and Chain Compatibility
- Short link chain: 10 mm (3/8")
- Chain diameter: 10 mm
- Recommended rope material: Nylon
- Rope diameter: 16–20 mm (5/8"–3/4")
Recommended Vessel Application
- Large cruising yachts
- Powerboats with hydraulic systems
- Bluewater and professional marine vessels
- Installations requiring increased deck clearance
Key Features
- Top-range hydraulic vertical rope/chain anchor windlass
- 190 TDC increased deck clearance for thick deck installations
- High pulling capacity for heavy anchors
- Wave Design™ chainwheel for smooth and secure anchoring
- Ratcheted mechanism to prevent backwinding during manual retrieval
- Marine-grade AISI 316 stainless steel construction
Operational Notes
- The windlass must be used in conjunction with a chain stopper and/or alternative snubbing device to remove load from the windlass while at anchor.
- A chain stopper or alternative snubbing system must also be used to secure the anchor in the fully raised position while the vessel is under way.
-
