ID
1281732
$ 3,263.79
1-2 weeks delivery time
-
+
The Maxwell RC10-8 Hydraulic 150TDC CW Vertical Anchor Windlass (Vetus P105434) is a hydraulic rope/chain windlass designed for vessels requiring increased deck clearance and high anchoring reliability. Featuring a hydraulic drive with power equivalent to a 1000 W electric system, this vertical RC10 Series model is suitable for 8 mm (5/16") DIN 766 chain and 14–16 mm (9/16"–5/8") nylon rope. The 150 TDC configuration allows installation on thicker decks, while the CW chainwheel-only design provides efficient anchor handling without a capstan drum.
- Description
- Ask a Question
-

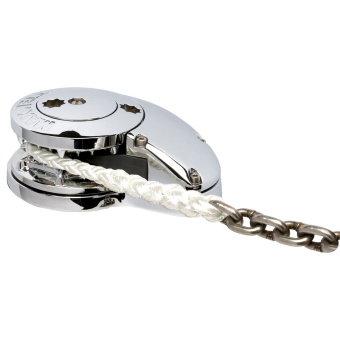

Maxwell RC10-8 Hydraulic 150TDC CW Vertical Anchor Windlass (Vetus P105434)
The Maxwell RC10-8 Hydraulic is an automatic vertical rope/chain anchor windlass from the Maxwell RC10 Series, engineered for demanding marine environments where hydraulic power is preferred. This version features an increased Total Deck Clearance of 150 TDC, making it suitable for vessels with thicker decks or specific installation constraints.
Constructed from marine-grade stainless steel and chromed bronze, the windlass offers excellent durability and corrosion resistance. The hydraulic drive delivers smooth, consistent anchoring performance, while the chainwheel-only configuration is optimized for standard rope and chain handling without a capstan drum.
Specification Value Vetus Part Number P105434 Model RC10-8 Hydraulic Series Maxwell RC10 Series Drive Type Hydraulic Equivalent Power Approximately 1000 W Installation Type Vertical Operation Automatic rope / chain Drum No Total Deck Clearance 150 TDC Maximum Pull / Lift Approximately 700 kg Static Hold Approximately 1500 kg Chain Speed (Retrieval) Approximately 24 m/min Rope Speed (Retrieval) Approximately 20 m/min Rotation CW (clockwise)
Rope and Chain Compatibility
- Short link chain: 8 mm (5/16") DIN 766
- Chain diameter: 8 mm
- Rope material: Nylon
- Rope diameter: 14–16 mm (9/16"–5/8")
Key Features
- Hydraulic vertical rope/chain anchor windlass
- Increased 150 TDC deck clearance for thicker deck installations
- Chainwheel-only configuration without capstan drum
- Marine-grade stainless steel and chromed bronze construction
- Designed for consistent performance in demanding marine applications
Operational Notes
- The windlass must be used in conjunction with a chain stopper and/or alternative snubbing device to remove load from the windlass while at anchor.
- A chain stopper or alternative snubbing system should also be used to secure the anchor in the fully raised position while the vessel is under way.
-
