ID
1300545
$ 2,658.98
1-2 weeks delivery time
-
+
The Maxwell RC10-8 12V 1000W 150TDC CW Vertical Anchor Windlass (Vetus P105432) is an automatic rope/chain windlass designed for marine vessels requiring increased deck clearance. Powered by a 12 V DC, 1000 W motor, this vertical RC10 Series model is suitable for 8 mm (5/16") DIN 766 chain and 14–16 mm (9/16"–5/8") nylon rope. The 150 TDC configuration allows installation on thicker decks, while the CW chainwheel-only design provides reliable anchor deployment and retrieval without a capstan drum.
- Description
- Ask a Question
-

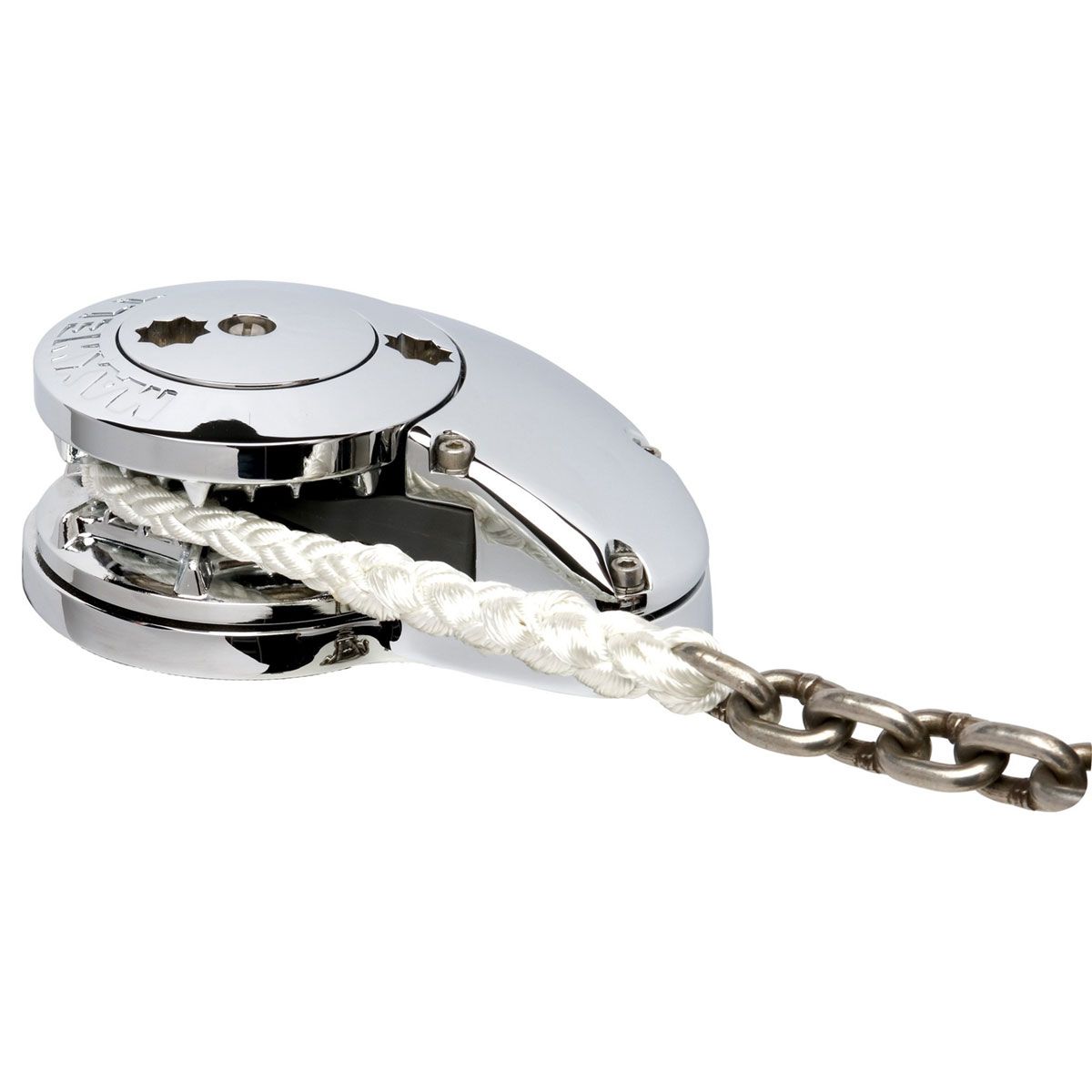

Maxwell RC10-8 12V 1000W 150TDC CW Vertical Anchor Windlass (Vetus P105432)
The Maxwell RC10-8 is an automatic vertical rope/chain anchor windlass from the Maxwell RC10 Series, engineered for dependable anchoring performance on cruising yachts and powerboats. This version features an increased Total Deck Clearance of 150 TDC, making it suitable for installations where greater deck thickness must be accommodated.
Manufactured from marine-grade stainless steel and chromed bronze, the windlass offers long-term durability and corrosion resistance in demanding marine environments. The chainwheel-only configuration is designed for efficient rope and chain handling in standard anchoring operations.
Specification Value Vetus Part Number P105432 Model RC10-8 Series Maxwell RC10 Series Voltage 12 V DC Motor Power 1000 W Installation Type Vertical Operation Automatic rope / chain Drum No Total Deck Clearance 150 TDC Maximum Pull / Lift 700 kg Static Hold 1500 kg Chain Speed (Retrieval) Approximately 24 m/min Rope Speed (Retrieval) Approximately 20 m/min Rotation CW (clockwise)
Rope and Chain Compatibility
- Short link chain: 8 mm (5/16") DIN 766
- Chain diameter: 8 mm
- Rope material: Nylon
- Rope diameter: 14–16 mm (9/16"–5/8")
Key Features
- Vertical automatic rope/chain anchor windlass
- Increased 150 TDC deck clearance for thicker deck installations
- Chainwheel-only configuration without capstan drum
- Marine-grade stainless steel and chromed bronze construction
- Designed for reliable anchoring performance on cruising vessels
Operational Notes
- The windlass must be used in conjunction with a chain stopper and/or alternative snubbing device to remove load from the windlass while at anchor.
- A chain stopper or alternative snubbing system should also be used to secure the anchor in the fully raised position while the vessel is under way.
-
