ID
1281779
$ 7,708.22
1-2 weeks delivery time
-
+

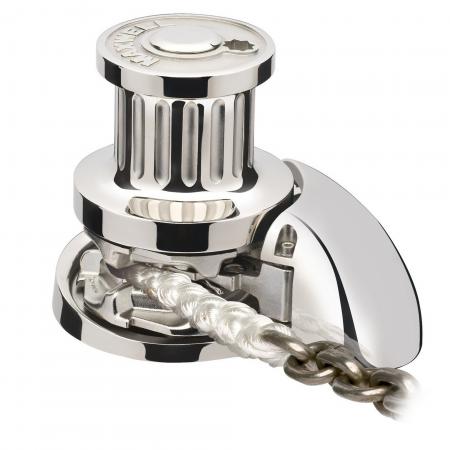

The Maxwell RC12-11 vertical automatic rope/chain hydraulic windlass, article number Vetus P104917, is a stainless steel anchor winch designed for combined rope and chain operation with a 90 TDC clockwise (CW) chainwheel and an integrated drum. This hydraulic windlass offers smooth and reliable anchor deployment and retrieval for marine vessels, combining robust performance with versatile line handling.
- Description
- Ask a Question
-
Maxwell RC12-11 Vertical Automatic Rope and Chain Hydraulic Windlass with Drum 90TDC CW
The Maxwell RC12-11 is a stainless steel vertical automatic rope/chain hydraulic windlass from the Maxwell RC12 Series, supplied under article number Vetus P104917. This model is equipped with a 90 TDC chainwheel with clockwise (CW) rotation and an integrated drum, engineered for reliable combined rope and chain anchoring operations on marine vessels. :contentReference[oaicite:1]{index=1}
The hydraulic operation provides smooth and dependable performance for anchoring and winching tasks. The windlass features an automatic rope/chain handling system that supports efficient transitions between rope and chain, while the ratcheted mechanism lever helps prevent backwinding during emergency manual retrieval of the anchor rode. :contentReference[oaicite:2]{index=2}
For safe and correct use, this windlass must be used in conjunction with a chain stopper and/or an alternative snubbing device to take the load off the windlass while the vessel is lying at anchor. These devices should also be used to secure the anchor in the fully raised position when the vessel is underway. The RC12-11 with drum is supplied as part of a complete automatic dual-direction control package. :contentReference[oaicite:3]{index=3}
Key Features
- Vertical hydraulic windlass configuration
- Automatic rope and chain handling system
- 90 TDC chainwheel with clockwise (CW) rotation
- Integrated drum for additional line handling
- Hydraulic drive for smooth and reliable operation
- Ratcheted mechanism lever to prevent backwinding during manual recovery
- Designed for use with chain stopper or alternative snubbing device
Technical Specifications
Parameter Specification Article Number Vetus P104917 Model Maxwell RC12-11 Drive Type Hydraulic Chainwheel Rating 90 TDC Rotation Clockwise (CW) Configuration Vertical Rope / Chain Type Automatic rope/chain Drum Yes
Rope and Chain Compatibility
Component Size Short Link Chain 10–13 mm (typical for RC12-11 series) Nylon Rope 16–22 mm (depends on model and installation) -
