The Maxwell RC12-11 vertical automatic rope/chain windlass with drum, article number Vetus P104959, is a stainless steel anchor winch equipped with a 12 V DC, 1200 W motor and clockwise (CW) rotation, configured with a 190 TDC chainwheel. This model is designed for combined rope and chain anchoring operations and features an integrated drum for additional rope handling capability. Supplied as part of Maxwell’s RC12 Series, it is intended for reliable and controlled anchor deployment and retrieval in marine applications.
- Description
- Ask a Question
-

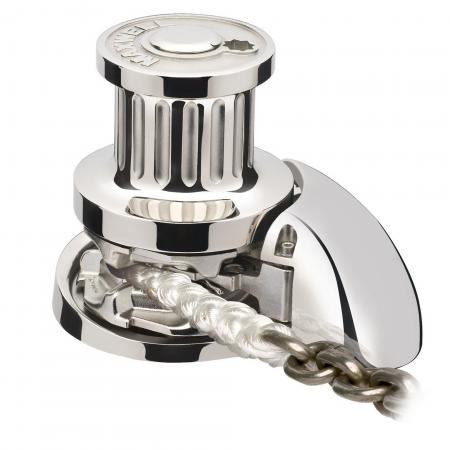

Maxwell RC12-11 Vertical Automatic Rope and Chain Windlass with Drum 12V 1200W 190TDC CW
The Maxwell RC12-11 is a stainless steel vertical automatic rope/chain windlass with drum from the Maxwell RC12 Series, supplied under article number Vetus P104959. This model is powered by a 12 V DC electric motor rated at 1200 W and features clockwise (CW) rotation with a 190 TDC chainwheel configuration. The integrated drum provides additional flexibility for rope handling in anchoring and auxiliary winching operations.
The windlass incorporates an automatic rope/chain handling system designed to ensure smooth and controlled anchor deployment and retrieval. A ratcheted mechanism lever prevents backwinding during emergency manual recovery of the anchor rode, enhancing operational safety under load.
For safe and correct operation, the windlass must be used in conjunction with a chain stopper and/or an alternative snubbing device to remove load from the windlass while the vessel is lying at anchor. These securing systems must also be used to lock the anchor in the fully raised position when the vessel is underway. The RC12-11 with drum is supplied as part of a complete automatic dual-direction control package.
Key Features
- Vertical windlass configuration
- 12 V DC electric drive with 1200 W motor
- 190 TDC chainwheel with clockwise (CW) rotation
- Automatic rope and chain handling system
- Integrated drum for additional rope handling capability
- Ratcheted mechanism lever to prevent backwinding during manual recovery
- Designed for use with chain stopper or alternative snubbing device
Technical Specifications
Parameter Specification Article Number Vetus P104959 Model Maxwell RC12-11 Motor Power 1200 W Voltage 12 V DC Configuration Vertical Rotation Clockwise (CW) Chainwheel Rating 190 TDC Rope / Chain Type Automatic rope/chain Drum Yes
Rope and Chain Compatibility
Component Specification Chainwheel Type 190 TDC -
