The Maxwell RC12-11 vertical automatic rope/chain windlass, article number Vetus P104915, is a stainless steel anchor winch with a 12 V DC, 1200 W motor and clockwise (CW) rotation rated for a 90 TDC chainwheel. This drum-equipped version of the RC12-11 offers combined rope and chain handling and is designed to provide versatile anchoring performance for marine vessels. Built for dependable operation, it integrates automatic rope/chain handling and is suitable for a range of anchoring and mooring tasks.
- Description
- Ask a Question
-

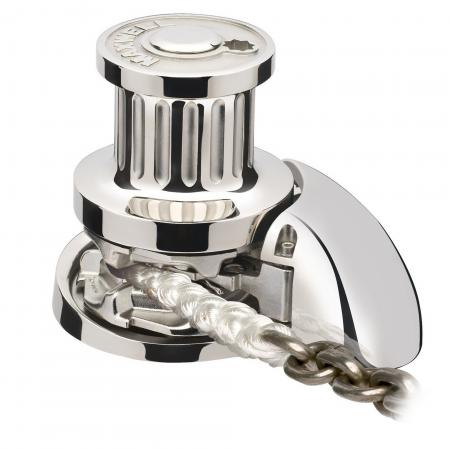

Maxwell RC12-11 Vertical Automatic Rope and Chain Windlass with Drum 12V 1200W 90TDC CW
The Maxwell RC12-11 is a vertical automatic rope/chain windlass from the Maxwell RC12 Series, supplied under article number Vetus P104915. This model features a 12 V DC, 1200 W motor with clockwise (CW) rotation and a 90 TDC chainwheel, combined with an integrated drum for additional rope handling versatility. It is engineered for reliable anchor deployment and retrieval in marine anchoring operations.
The windlass incorporates Maxwell’s automatic rope/chain handling design, enabling smooth transition between rope and chain during operation. A ratcheted mechanism lever prevents backwinding during emergency manual retrieval of the anchor rode, enhancing operational safety.
For safe and correct use, this windlass should be employed with a chain stopper and/or alternative snubbing device to relieve load from the windlass while the vessel is at anchor. These devices also secure the anchor in the fully raised position when the vessel is underway. The RC12-11 with drum is supplied as part of a complete automatic dual-direction control package.
Key Features
- Vertical windlass configuration
- 12 V DC electric drive with 1200 W motor
- 90 TDC chainwheel with clockwise (CW) rotation
- Automatic rope and chain handling system
- Integrated drum for versatile rope handling
- Ratcheted mechanism to prevent backwinding during manual retrieval
- Designed for use with chain stopper or alternative snubbing device
- Supplied as part of a complete automatic dual-direction control package
Technical Specifications
Parameter Specification Article Number Vetus P104915 Model Maxwell RC12-11 Motor Power 1200 W Voltage 12 V DC Chainwheel Rating 90 TDC Rotation Clockwise (CW) Configuration Vertical Rope / Chain Type Automatic rope/chain Drum Yes
Rope and Chain Compatibility
Component Size Short Link Chain 10–13 mm Nylon Rope 16–20 mm (5/8"–3/4") -
