ID
1281785
$ 7,800.49
1-2 weeks delivery time
-
+
The Maxwell RC12-11 vertical automatic rope/chain hydraulic windlass with drum, article number Vetus P104961, is a stainless steel anchor winch configured with a 190 TDC chainwheel and clockwise (CW) rotation. This hydraulic version of the RC12 Series is designed for combined rope and chain anchoring operations and features an integrated drum for enhanced rope handling. It provides smooth, controlled anchor deployment and retrieval for demanding marine applications.
- Description
- Ask a Question
-

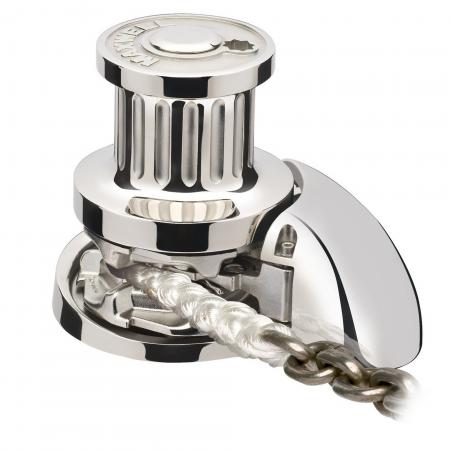

Maxwell RC12-11 Vertical Automatic Rope and Chain Hydraulic Windlass with Drum 190TDC CW
The Maxwell RC12-11 is a stainless steel vertical automatic rope/chain hydraulic windlass with drum from the Maxwell RC12 Series, supplied under article number Vetus P104961. This model is equipped with a 190 TDC chainwheel and clockwise (CW) rotation, engineered for high-load anchoring applications requiring reliable hydraulic performance and flexible line handling.
The windlass incorporates an automatic rope/chain handling system to ensure smooth and controlled anchor deployment and retrieval. An integrated ratcheted mechanism lever prevents backwinding during emergency manual recovery of the anchor rode, enhancing operational safety under load.
For safe and correct operation, the windlass must be used in conjunction with a chain stopper and/or an alternative snubbing device to remove load from the windlass while the vessel is lying at anchor. These securing systems must also be used to secure the anchor in the fully raised position when the vessel is underway. The RC12-11 hydraulic windlass with drum is supplied as part of a complete automatic dual-direction control system.
Key Features
- Vertical hydraulic windlass configuration
- Automatic rope and chain handling system
- 190 TDC chainwheel with clockwise (CW) rotation
- Integrated drum for additional rope handling capability
- Hydraulic drive for smooth and controlled operation
- Ratcheted mechanism lever to prevent backwinding during manual recovery
- Designed for use with chain stopper or alternative snubbing device
Technical Specifications
Parameter Specification Article Number Vetus P104961 Model Maxwell RC12-11 Drive Type Hydraulic Configuration Vertical Rotation Clockwise (CW) Chainwheel Rating 190 TDC Rope / Chain Type Automatic rope/chain Drum Yes
Rope and Chain Compatibility
Component Specification Chainwheel Type 190 TDC -
