The Lewmar C3 Capstan is a professional marine capstan available in 12 V and 24 V versions with a 1000 W motor. Designed for boats from 10 to 16 m, it features WARP™ drum technology, an AISI 316 stainless steel construction, anti-runback vertical motor, and delivers up to 850 kg maximum pull with quick patented deck installation.
- Description
- Ask a Question
-

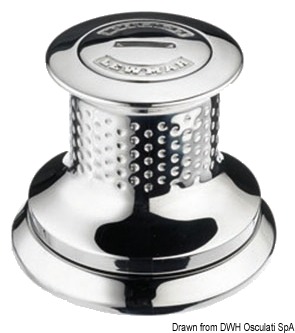

Lewmar C3 Vertical Marine Capstan 12V/24V – 1000W for Boats 10–16 m
The Lewmar C3 Capstan is a premium marine capstan engineered for effortless rope handling on sailing yachts and motorboats. Manufactured entirely from polished AISI 316 stainless steel, it combines outstanding corrosion resistance with Lewmar's patented WARP™ drum technology for superior grip and reduced rope wear.
Available in both 12 V and 24 V versions, the C3 is powered by a 1000 W vertical motor with anti-runback characteristics for safe and reliable operation. The patented above-deck mounting system allows fast installation by a single operator, while the complete kit includes the solenoid, foot switch and circuit breaker.
Designed for boats from 10 to 16 metres, the C3 provides smooth rope handling for docking and mooring while minimizing line wear and maximizing control.
Features
- Professional vertical marine capstan
- Available in 12 V and 24 V versions
- 1000 W high-performance motor
- Solid AISI 316 stainless steel construction
- WARP™ drum technology reduces rope wear by up to 30%
- Vertical motor with anti-runback characteristics
- Patented above-deck mounting system for quick installation
- Supplied with solenoid, foot switch and circuit breaker
Available Versions
Osculati Code Lewmar Part No. Voltage Motor 02.610.12 6630331312 12 V 1000 W 02.610.24 6630332312 24 V 1000 W
Technical Specifications
Specification 12 V 24 V Motor Power 1000 W 1000 W Maximum Pull 750 kg 850 kg Continuous Pull 188 kg 213 kg Maximum Line Speed 12 m/min 12 m/min Current Draw 65 A 40 A Recommended Circuit Breaker 70 A 50 A Recommended Boat Length 10–16 m 10–16 m Weight 12 kg 11.5 kg
Package Includes
- C3 capstan deck unit
- Motor and gearbox assembly
- Solenoid
- Foot switch
- Circuit breaker
-
