ID
1379899
$ 1,178.97
1-2 weeks delivery time
Voltage:
- 12
- 24
Power, W
- 500
- 700

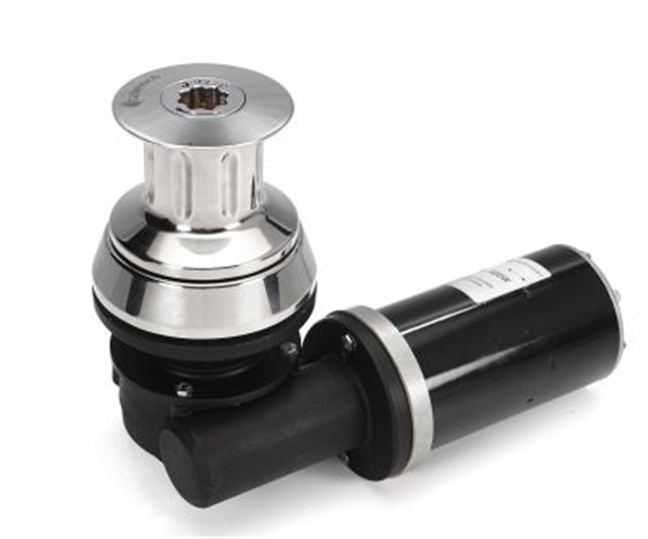

The Italwinch Paros Lux is a compact marine capstan manufactured from polished AISI 316 stainless steel and designed for vessels up to 13 metres. Available with 500W or 700W motors in 12V and 24V versions, it features an IP67 waterproof motor, reliable line speeds of 23–25 m/min, and a corrosion-resistant construction for demanding marine environments. Ideal for mooring and docking operations, the Paros Lux combines compact dimensions with dependable performance.
- Description
- Ask a Question
-
Italwinch Paros Lux AISI 316 Marine Capstan 500/700W – 12V & 24V for Boats up to 13 m
The Italwinch Paros Lux is a premium marine capstan engineered for reliable mooring and docking operations on vessels up to 13 metres in length. Manufactured from polished AISI 316 stainless steel, it delivers outstanding corrosion resistance and long service life in harsh saltwater environments.
The series is available with 500W and 700W electric motors operating on both 12V and 24V electrical systems. Every version features a sealed IP67 waterproof motor, providing dependable operation even in demanding onboard conditions.
Designed for intensive everyday marine use, the Paros Lux combines compact dimensions with smooth line handling and reliable pulling performance, making it an excellent choice for recreational and professional vessels requiring a durable electric capstan.
Key Features
- Original Italwinch Paros Lux marine capstan
- Polished AISI 316 stainless steel construction
- IP67 waterproof electric motor
- Available in 12V and 24V versions
- 500W and 700W motor options
- Suitable for boats up to 13 metres
- Compact vertical capstan design
- Designed for mooring and docking operations
- Excellent corrosion resistance for marine environments
Technical Specifications
Specification Value Series Paros Lux Product Type Marine Electric Capstan Construction Material Polished AISI 316 Stainless Steel Motor Protection IP67 Waterproof Recommended Boat Length Up to 13 m Available Voltages 12V • 24V Available Motor Power 500W • 700W Maximum Pull 650–760 kg (depending on version) Working Load 90–100 kg Line Speed 23–25 m/min
Available Versions
- 12V • 500W
- 24V • 500W
- 12V • 700W
- 24V • 700W
Performance Overview
Voltage Power Current Draw Maximum Pull Working Load Line Speed 12V 500W 60 A 650 kg 90 kg 23 m/min 24V 500W 32 A 670 kg 90 kg 23 m/min 12V 700W 90 A 750 kg 100 kg 25 m/min 24V 700W 40 A 760 kg 100 kg 25 m/min
Applications
- Mooring operations
- Docking assistance
- Motor yachts
- Sailing yachts
- Pleasure craft up to 13 metres
Documents
-
