ID
1379722
$ 4,461.66
1-2 weeks delivery time
Voltage:
- 12
- 24
Power, W
- 1700
Size, mm:
- 8
- 10
- 12
- 10 DIN766
The Italwinch Fyn Horizontal Anchor Windlass is a heavy-duty 1700W anchoring solution designed for boats up to 18 meters. Built with an anodized aluminium housing and chrome-plated bronze gypsy and drum, it is available in both 12V and 24V versions for 8 mm, 10 mm and 12 mm anchor chains compliant with ISO 4565 and DIN 766 standards. Every configuration includes a drum, integrated chain counter sensor, and is engineered for reliable anchoring performance in demanding marine conditions.
- Description
- Ask a Question
-

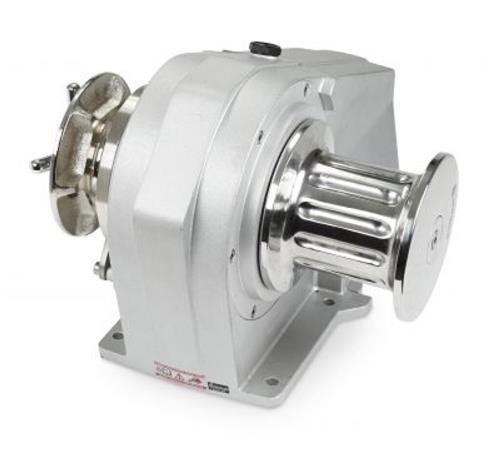

Italwinch Fyn Horizontal Anchor Windlass with Drum 12V/24V, 1700W for Boats up to 18 m
The Italwinch Fyn Horizontal Anchor Windlass is a professional-grade electric windlass developed for motorboats and sailing yachts up to 18 metres in length. Its horizontal configuration provides excellent installation flexibility while delivering dependable anchoring performance for medium and large vessels.
Constructed with an anodized aluminium housing and a chrome-plated bronze gypsy and drum, the Fyn series is designed to withstand demanding marine environments while offering long service life and excellent corrosion resistance. Every version is equipped with a powerful 1700W motor, integrated drum and built-in chain counter sensor for precise anchor handling.
The windlass is available in both 12V and 24V versions and supports 8 mm, 10 mm and 12 mm anchor chain, including ISO 4565 and DIN 766 chain standards depending on the selected configuration.
Key Features
- Horizontal electric anchor windlass
- Suitable for boats up to 18 metres
- 1700W electric motor
- Available in 12V and 24V versions
- Integrated rope drum on all models
- Compatible with 8 mm, 10 mm and 12 mm anchor chain
- Supports ISO 4565 and DIN 766 chain standards
- Integrated chain counter sensor
- Anodized aluminium housing
- Chrome-plated bronze gypsy and drum
- Designed for intensive anchoring applications
Technical Specifications
Motor Power Voltage Chain Size Chain Standard Suitable Boats 1700 W 12V 8 mm ISO 4565 Up to 18 m 1700 W 12V 10 mm ISO 4565 / DIN 766 Up to 18 m 1700 W 12V 12 mm ISO 4565 Up to 18 m 1700 W 24V 8 mm ISO 4565 Up to 18 m 1700 W 24V 10 mm ISO 4565 / DIN 766 Up to 18 m 1700 W 24V 12 mm ISO 4565 Up to 18 m
Available Versions
Motor Configuration Available Versions 12V 1700W 8 mm ISO chain with drum
10 mm ISO chain with drum
12 mm ISO chain with drum
10 mm DIN 766 chain with drum24V 1700W 8 mm ISO chain with drum
10 mm ISO chain with drum
12 mm ISO chain with drum
10 mm DIN 766 chain with drum
Applications
- Motorboats and sailing yachts up to 18 metres
- Horizontal anchor windlass installations
- Frequent anchoring operations
- Recreational and professional marine applications
Documents
-
