ID
1379773
$ 2,103.71
1-2 weeks delivery time
Voltage:
- 12
- 24
Power, W
- 800
The Italwinch Nestor-V Vertical Marine Capstan is a compact anchoring and mooring solution for boats up to 14 metres, featuring a vertical IP67 waterproof motor and an AISI 316 stainless steel capstan head. Available in 12V and 24V DC versions, the Nestor-V delivers 300 kg maximum pulling force, 100 kg continuous working load, and a 25 m/min line speed. Its EASY FIT installation system simplifies mounting while ensuring reliable performance in demanding marine environments.
- Description
- Ask a Question
-

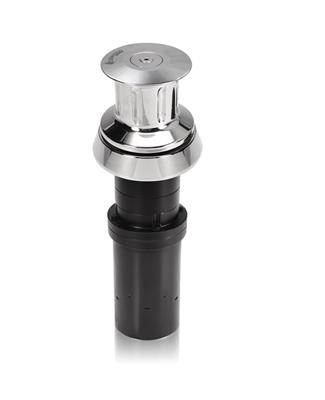

Italwinch Nestor-V Vertical Marine Capstan 800W for Boats up to 14 m – AISI 316 Stainless Steel
The Italwinch Nestor-V Capstan is a compact vertical marine capstan developed for reliable mooring and line handling on vessels up to 14 metres. Featuring a corrosion-resistant AISI 316 stainless steel capstan head and an IP67 waterproof electric motor, it delivers dependable performance in demanding marine conditions.
Powered by an 800W motor, the Nestor-V is available in both 12V and 24V DC versions. It provides a maximum pulling force of 300 kg, a continuous working load of 100 kg, and a maximum line speed of 25 m/min, making it suitable for docking, mooring and general line handling.
The capstan incorporates Italwinch's EASY FIT installation system, allowing quick and straightforward installation while maintaining a compact below-deck footprint. Designed and manufactured in Italy, the Nestor-V combines premium materials, efficient performance and long-term reliability.
Key Features
- Vertical marine capstan for boats up to 14 m
- AISI 316 stainless steel capstan head
- 800W electric motor
- Available in 12V and 24V DC versions
- IP67 waterproof motor protection
- EASY FIT installation system
- Maximum pulling force of 300 kg
- Continuous working load of 100 kg
- Maximum line speed of 25 m/min
- Compact below-deck motor design
Technical Specifications
Specification Value Product Type Vertical Marine Capstan Recommended Boat Length Up to 14 m Construction Material AISI 316 Stainless Steel Motor Protection IP67 Waterproof Motor Power 800 W Available Voltage 12 V DC / 24 V DC Current Draw 90 A (12V) / 50 A (24V) Maximum Pull 300 kg Working Load 100 kg Maximum Line Speed 25 m/min Installation System EASY FIT
Available Variants
- 12V • 800W
- 24V • 800W
Applications
- Mooring operations
- Dock line handling
- Sailing yachts
- Motorboats
- Recreational vessels up to 14 m
-
