The Italwinch Nestor Marine Capstan is a compact, high-performance capstan designed for boats up to 17 metres. Manufactured from AISI 316 marine-grade stainless steel and equipped with an IP67 waterproof motor, it is available in 1000W and 1500W versions for both 12V and 24V DC systems. Delivering pulling capacities of up to 1290 kg with working loads of up to 160 kg, the Nestor series is an ideal solution for reliable mooring and line handling in demanding marine environments.
- Description
- Ask a Question
-

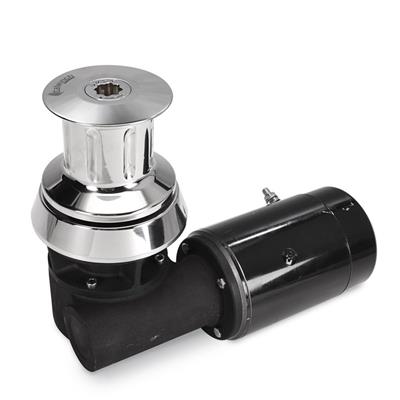

Italwinch Nestor Marine Capstan 1000/1500W for Boats up to 17 m – AISI 316 Stainless Steel
The Italwinch Nestor Capstan is a premium marine capstan developed for reliable mooring and line handling on vessels up to 17 metres. Constructed from AISI 316 marine-grade stainless steel, it combines excellent corrosion resistance with long-term durability, making it suitable for continuous operation in harsh marine environments.
The Nestor series is available with 1000W and 1500W motors in both 12V and 24V DC versions. An IP67-rated waterproof motor provides dependable performance and protection against water ingress, while the compact design simplifies installation on a wide range of recreational and professional vessels.
Depending on the selected model, the capstan delivers a maximum pulling force of up to 1290 kg, a continuous working load of up to 160 kg, and a maximum line speed of 23 m/min. Designed and manufactured in Italy, the Nestor series offers dependable performance for demanding docking and mooring applications.
Key Features
- Marine capstan for boats up to 17 m
- Manufactured from AISI 316 stainless steel
- IP67 waterproof motor
- Available in 1000W and 1500W versions
- 12V and 24V DC power options
- Maximum pulling force up to 1290 kg
- Continuous working load up to 160 kg
- Maximum line speed of 23 m/min
- Compact horizontal motor design
- Designed for professional and recreational marine applications
Technical Specifications
Specification Value Product Type Marine Capstan Recommended Boat Length Up to 17 m Construction Material AISI 316 Stainless Steel Motor Protection IP67 Waterproof Available Power 1000 W / 1500 W Available Voltage 12 V DC / 24 V DC Maximum Pull 1020–1290 kg (depending on model) Working Load 130–160 kg (depending on model) Maximum Line Speed 23 m/min
Available Variants
- 12V • 1000W
- 24V • 1000W
- 12V • 1500W
- 24V • 1500W
Applications
- Mooring operations
- Dock line handling
- Sailing yachts
- Motor yachts
- Professional and recreational vessels up to 17 m
