ID
678648
$ 10,321.75
1-2 weeks delivery time
Voltage:
- 24
- 230/400
Power, W
- 3000
- 3500
The Italwinch Milos Marine Capstan is a heavy-duty anchoring solution designed for vessels up to 38 metres. Manufactured from AISI 316 marine-grade stainless steel, it is available in 3000W AC (230/400V) and 3500W 24V DC versions, delivering a maximum pulling force of up to 4000 kg with a working load of 1100 kg. Designed for demanding commercial and large yacht applications, the Milos series combines exceptional durability with powerful and reliable capstan performance.
- Description
- Ask a Question
-

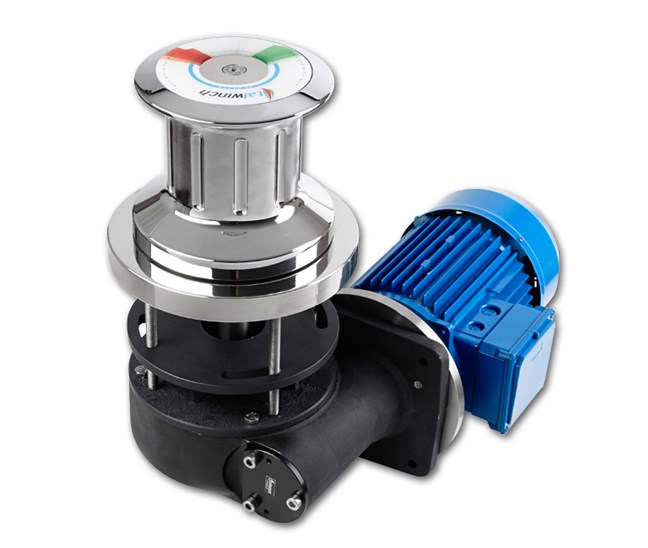

Italwinch Milos Marine Capstan 3000/3500W for Boats up to 38 m – AISI 316 Stainless Steel
The Italwinch Milos Capstan is a professional-grade marine capstan engineered for heavy-duty mooring and line handling on vessels up to 38 metres. Manufactured entirely from AISI 316 stainless steel, it offers outstanding corrosion resistance and long service life in demanding marine environments.
The Milos series is available in two powerful configurations: a 3000W AC model (230/400V) and a 3500W 24V DC model. Both versions deliver an impressive maximum pulling force of 4000 kg and a continuous working load of 1100 kg, making them suitable for large yachts, commercial vessels and professional marine applications.
Designed for reliable daily operation, the Milos combines powerful performance with premium materials and Italian engineering, providing dependable line handling wherever maximum pulling capacity is required.
Key Features
- Heavy-duty marine capstan for vessels up to 38 m
- Manufactured from corrosion-resistant AISI 316 stainless steel
- Available with 3000W AC (230/400V) or 3500W 24V DC drive
- Maximum pulling capacity of 4000 kg
- Continuous working load of 1100 kg
- Designed for demanding commercial and large yacht applications
- Premium Italian engineering for reliable long-term operation
Technical Specifications
Model Power Voltage Current Maximum Pull Working Load Recommended Boat Length Milos AC 3000 W 230 / 400 V AC — 4000 kg 1100 kg Up to 38 m Milos DC 3500 W 24 V DC 195 A 4000 kg 1100 kg Up to 38 m
Available Variants
- 3000W • 230/400V AC
- 3500W • 24V DC
Applications
- Large yachts
- Commercial vessels
- Heavy-duty mooring operations
- Docking and line handling
- Professional marine installations
Documents
User's manual - Italwinch MILOS Size: 983,1 KbItalwinch Milos Capstan 3500W for vessels up to 38m Size: 3,5 Mb -
