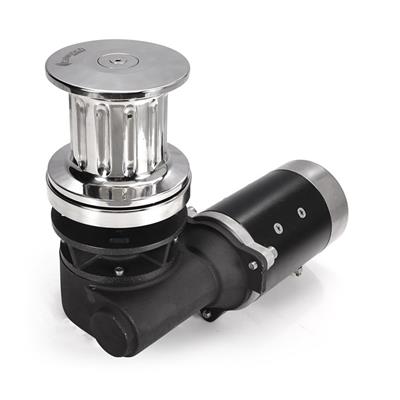

The Italwinch Heron Marine Capstan is a heavy-duty electric capstan manufactured from AISI 316 stainless steel for vessels up to 23 meters. Available with 1500W, 1700W and 2000W motors in 12V, 24V and 230V versions, it delivers a maximum pulling force of up to 1750 kg and a working load of up to 270 kg. Designed for demanding mooring and line-handling operations, the Heron combines corrosion-resistant construction with multiple power options to suit both recreational and professional marine applications.
- Description
- Ask a Question
-
Italwinch Heron Marine Capstan 1500W/1700W/2000W for Boats up to 23 m
The Italwinch Heron Marine Capstan is a professional electric capstan developed for yachts, motorboats and commercial vessels up to 23 metres in length. Manufactured entirely from AISI 316 stainless steel, it provides excellent corrosion resistance together with reliable performance for demanding docking, mooring and line-handling operations.
The Heron series is available with 1500W, 1700W and 2000W motors and supports 12V, 24V and 230V AC power supplies depending on the selected model. High pulling capacity and multiple drive configurations allow the capstan to be matched to a wide variety of vessel sizes and operating requirements.
Depending on the version, the Heron delivers a maximum pulling force of up to 1750 kg with a continuous working load of up to 270 kg, making it suitable for intensive marine service.
Key Features
- Marine electric capstan
- Suitable for vessels up to 23 metres
- Manufactured from AISI 316 stainless steel
- Available with 1500W, 1700W and 2000W motors
- 12V, 24V and 230V AC versions available
- Maximum pulling force up to 1750 kg
- Continuous working load up to 270 kg
- Designed for intensive mooring and docking operations
- Excellent corrosion resistance for marine environments
- Available in multiple power and voltage configurations
Technical Specifications
Power Voltage Maximum Pull Working Load Current Draw Suitable Boats 1500 W 12V 1250 kg 150 kg 130 A Up to 23 m 1500 W 24V 1290 kg 160 kg 70 A Up to 23 m 1700 W 12V 1650 kg 220 kg 185 A Up to 23 m 1700 W 24V 1700 kg 240 kg 90 A Up to 23 m 2000 W 24V 1750 kg 270 kg 100 A Up to 23 m 2000 W 230V AC 1700 kg 250 kg — Up to 23 m
Available Versions
Power Configuration 12V 1500W 24V 1500W 12V 1700W 24V 1700W 24V 2000W 230V AC 2000W
Applications
- Docking and mooring operations
- Line handling on yachts and motorboats
- Commercial marine vessels
- Professional marine applications
- Boats up to 23 metres
